Connected components

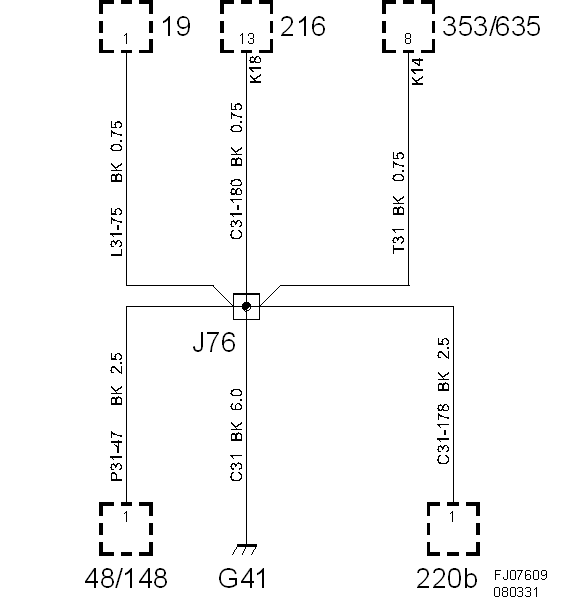

GROUNDING POINT G41 REFERENCE
| Via crimp connection J76, instrument harness | |
| 19 | Glove box lighting bulb |
| 48 | Cigarette lighter |
| 148 | Ashtray/cigarette lighter lighting bulb |
| 216 | ACC control module |
| 220b | Control unit, ventilation fan, ACC, |
| 305 | LED, anti-theft alarm |
| 353 | Radio main unit |
| 635 | Unit, audio/navigation |
