Front wheels

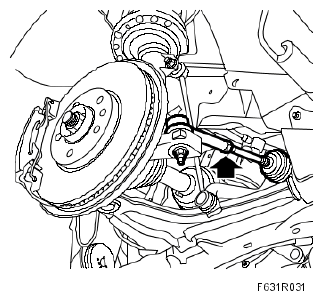

Fig 1: Locating Track Rod Nut

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Toe-in is adjusted by lengthening or shortening the track rods.
Toe-in must be adjusted by an equal amount on both left-hand and right-hand track rods to ensure that the steering wheel spokes will be positioned symmetrically.

Tightening torque 70 Nm (52 lbf ft)

NOTE: Using scan tool, calibration of steering angle sensor must be carried out after realigning the wheels on cars with ESP.
