Luggage Compartment/Rear of Vehicle Component Views

Luggage Compartment/Rear of Vehicle Component Views

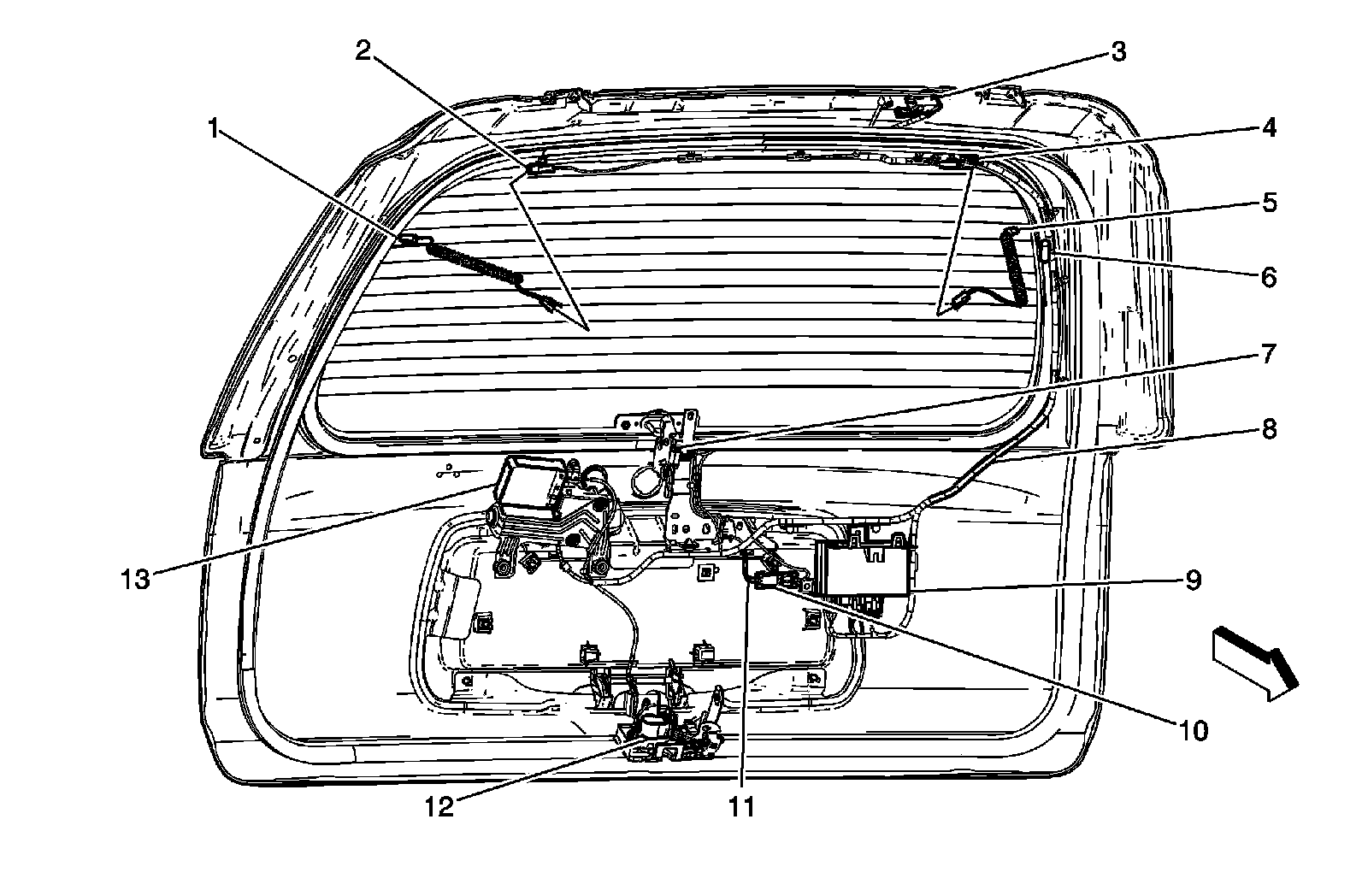

Liftgate




1 - Rear Window Defogger Grid X2
2 - X905
3 - X900
4 - X904
5 - Rear Window Defogger Grid X1
6 - X901
7 - Liftgate Ajar Switch
8 - Liftgate Harness
9 - Liftgate Module (LGM)
10 - X901
11 - License Lamp Harness
12 - Liftgate Latch Assembly
13 - Rear Window Wiper Motor
