Restraint Systems



Component Connector End Views

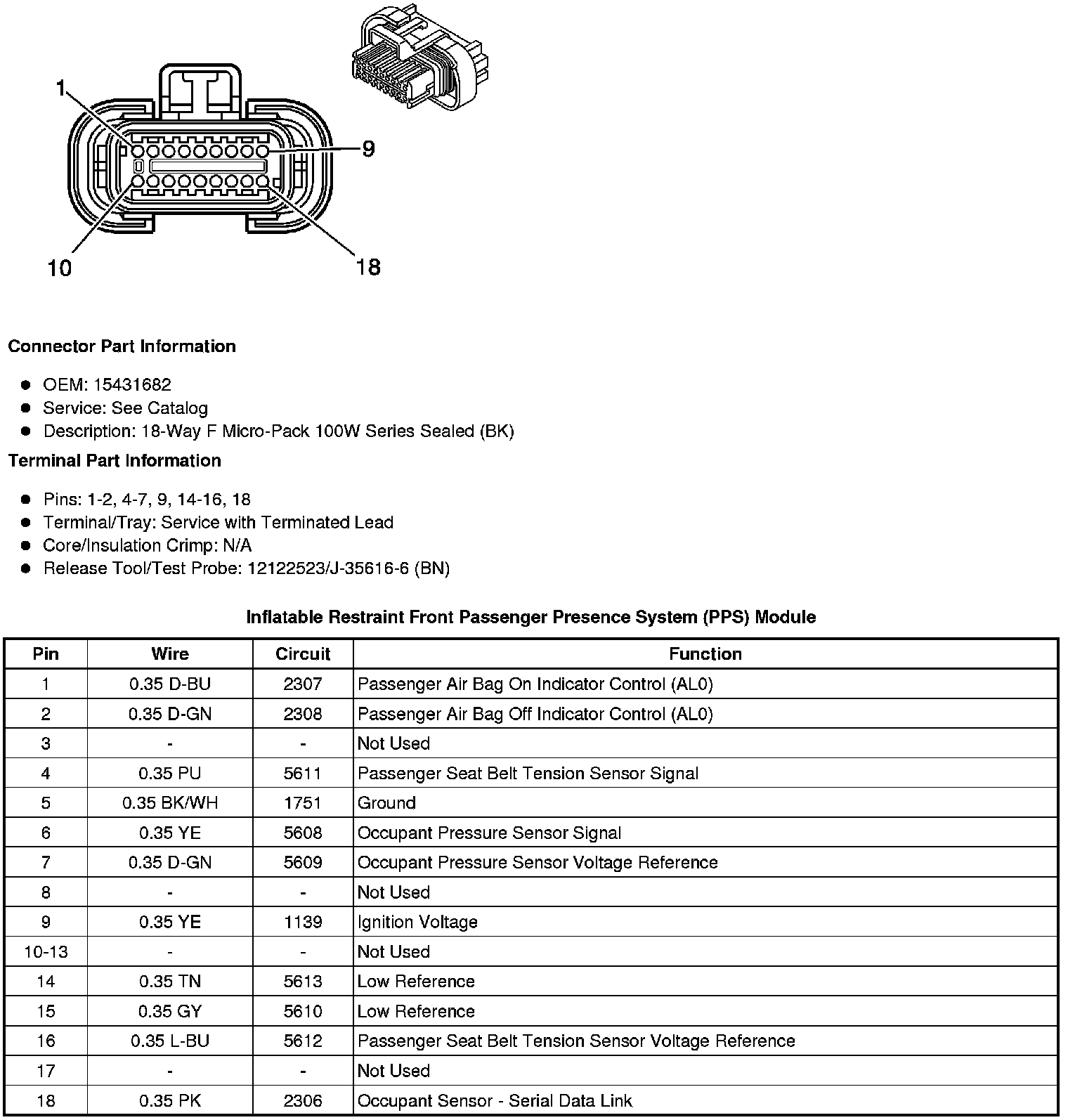

Inflatable Restraint Front Passenger Presence System (PPS) Module





Inflatable Restraint I/P Module

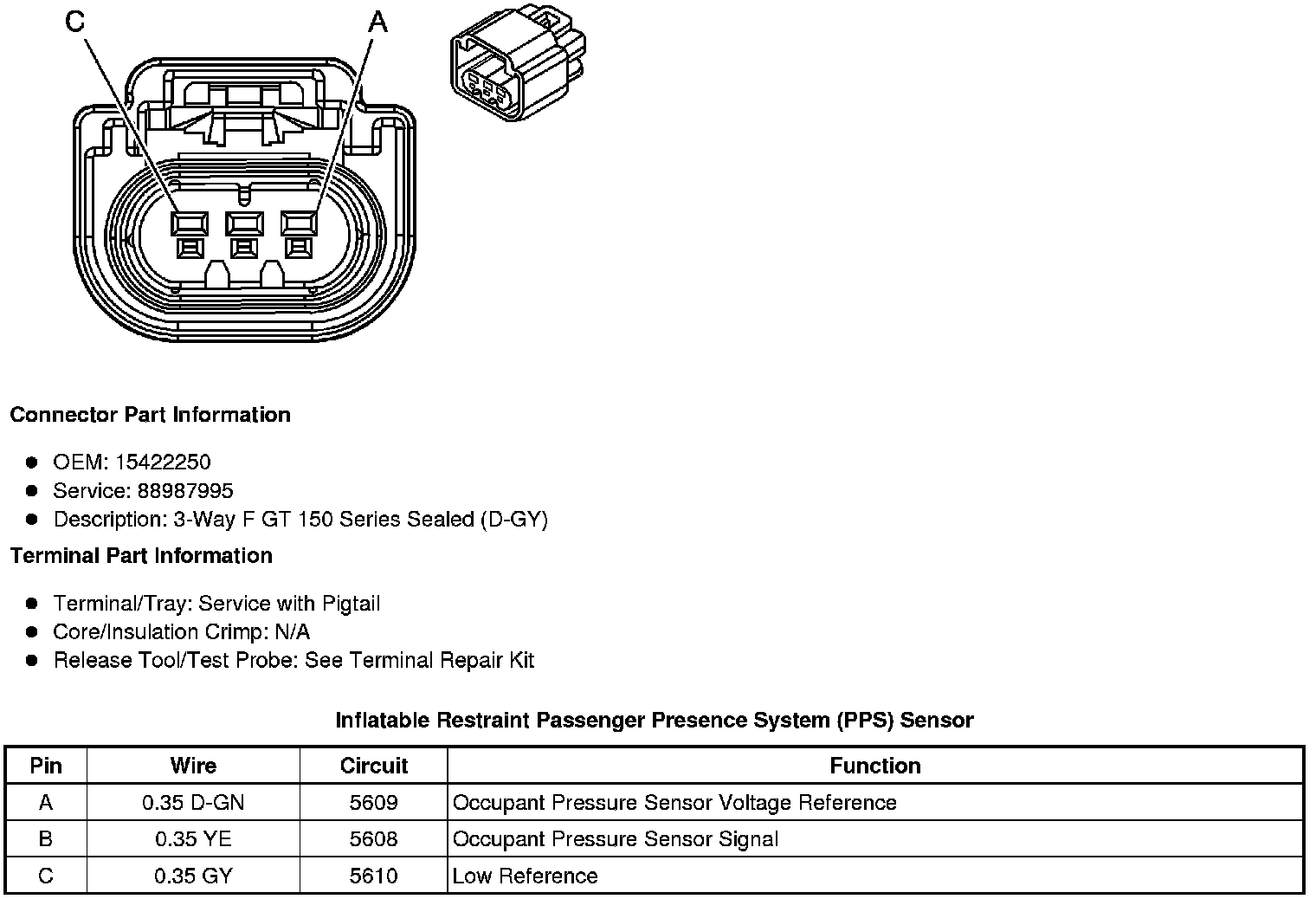

Inflatable Restraint Passenger Presence System (PPS) Sensor





Inflatable Restraint Passenger Seat Belt Tension Retractor Sensor





Inflatable Restraint Roof Rail Module - Left





Inflatable Restraint Roof Rail Module - Right





Inflatable Restraint Seat Position Sensor (SPS) - Left





Inflatable Restraint Seat Position Sensor (SPS) - Right

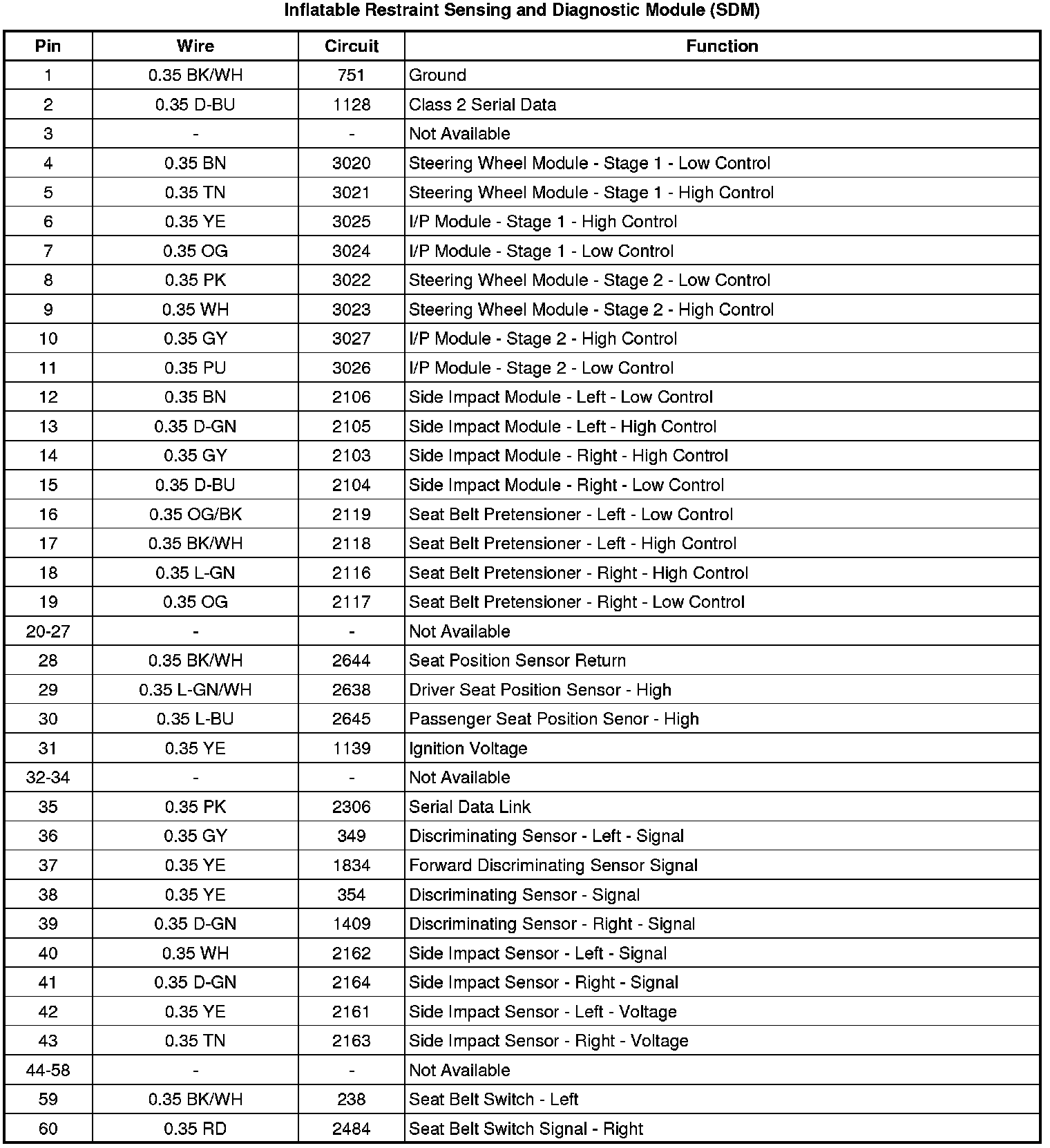

Inflatable Restraint Sensing and Diagnostic Module (SDM)








Inflatable Restraint Side Impact Sensor (SIS) - Left





Inflatable Restraint Side Impact Sensor (SIS) - Right

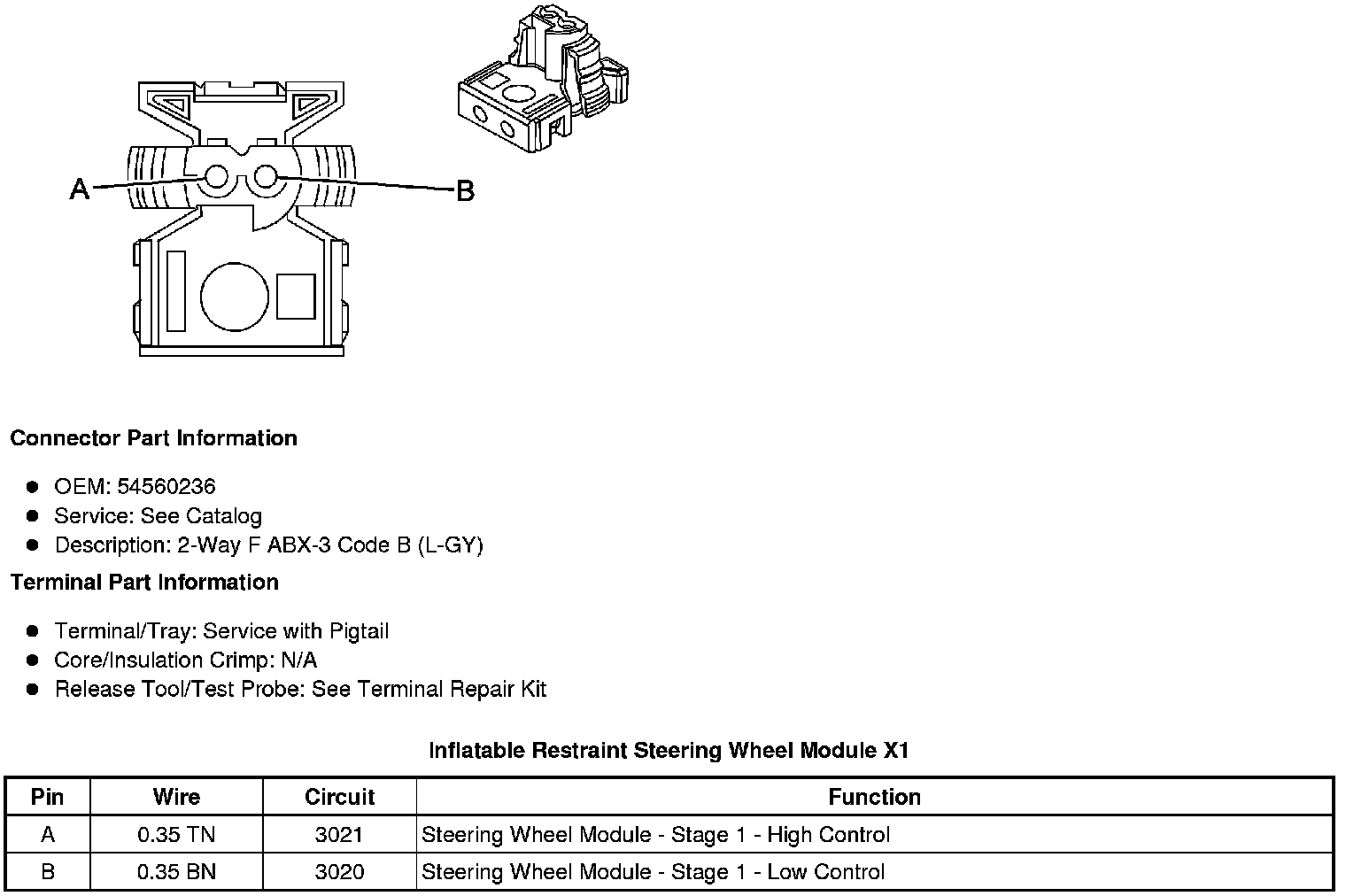

Inflatable Restraint Steering Wheel Module X1

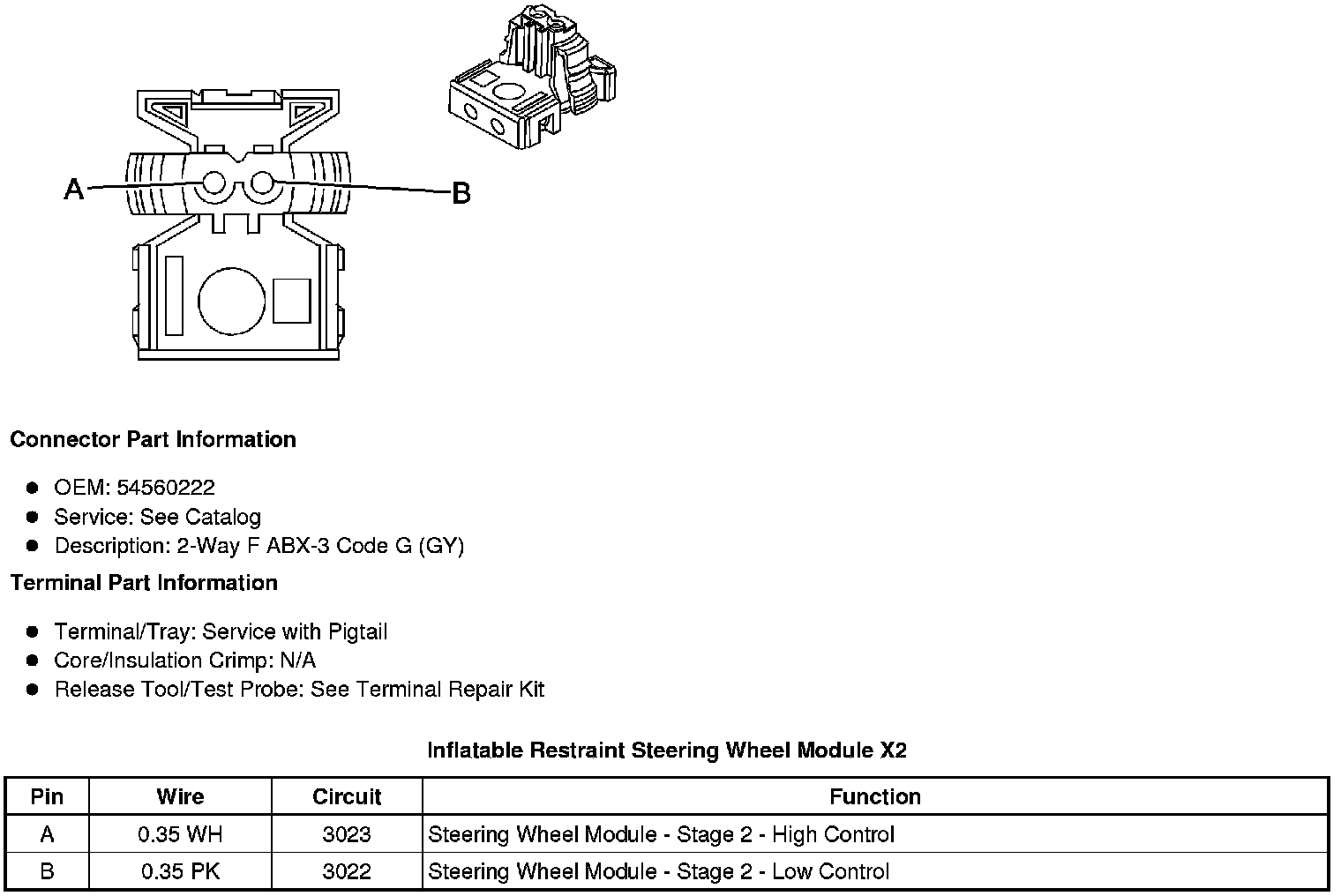

Inflatable Restraint Steering Wheel Module X2





Seat Belt Buckle - Driver





Seat Belt Buckle - Passenger





Seat Belt Pretensioner - Left





Seat Belt Pretensioner - Right
