Part 2



Component Connector End Views

Rollover Sensor

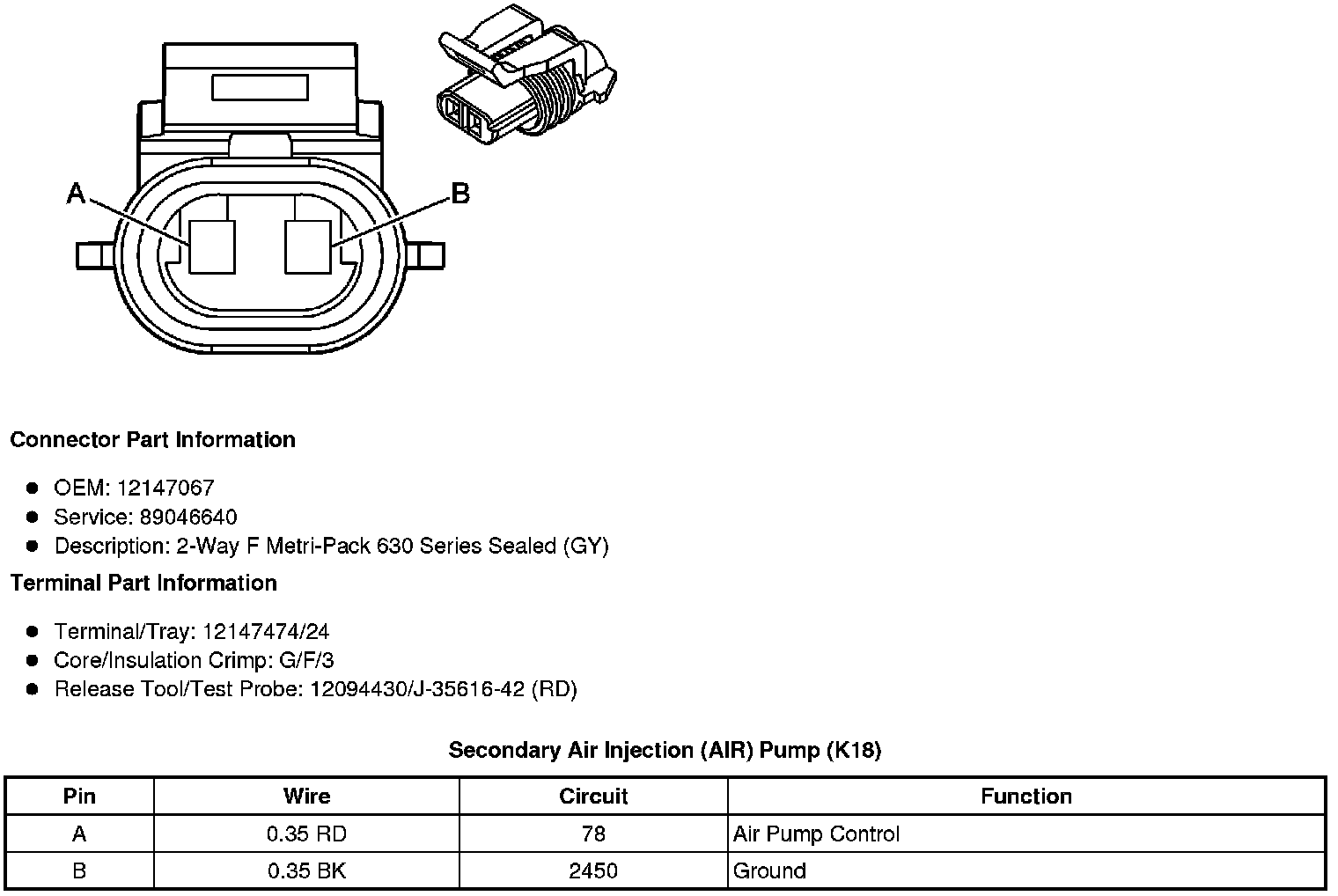

Secondary Air Injection (AIR) Pump (K18)

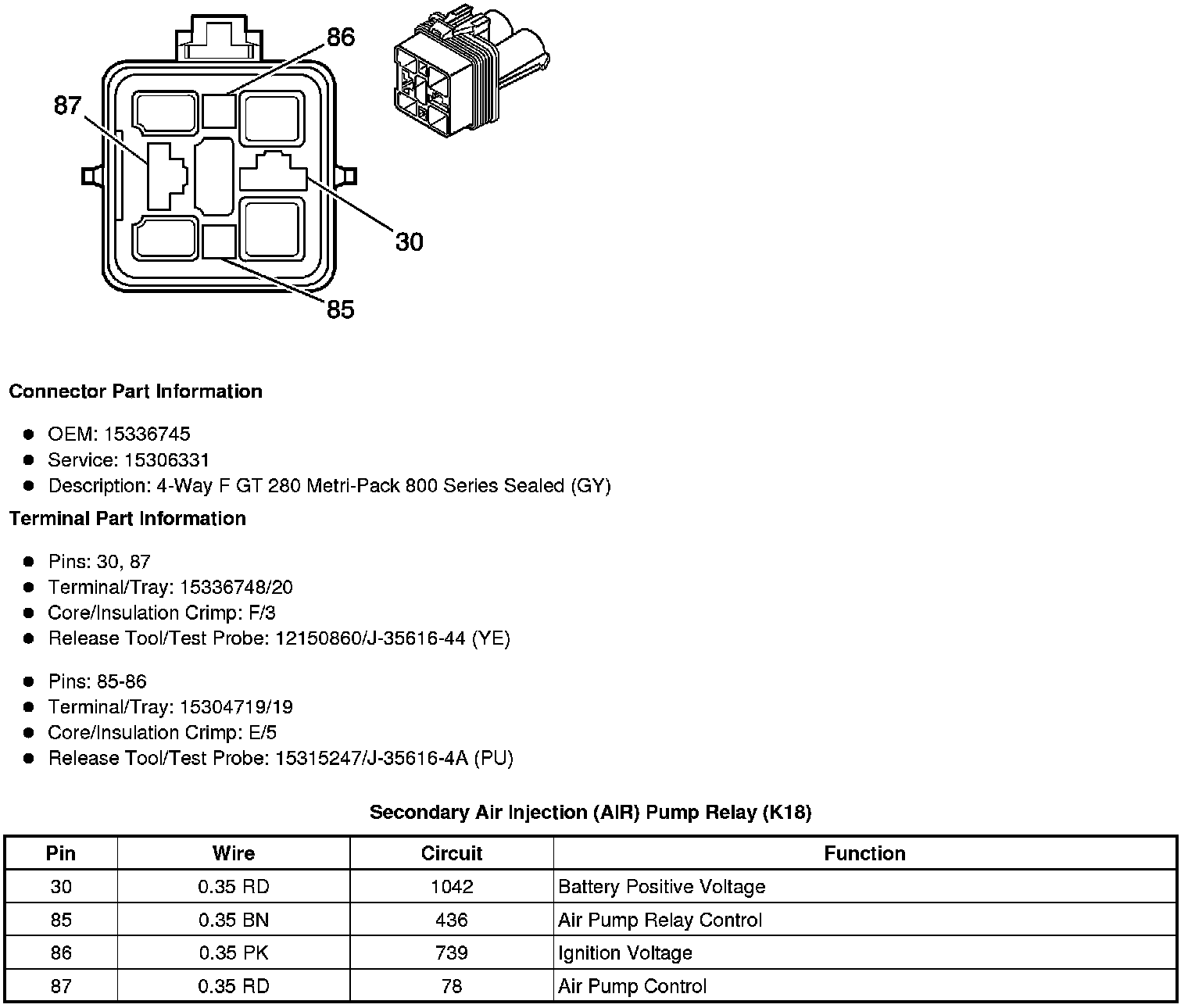

Secondary Air Injection (AIR) Pump Relay (K18)

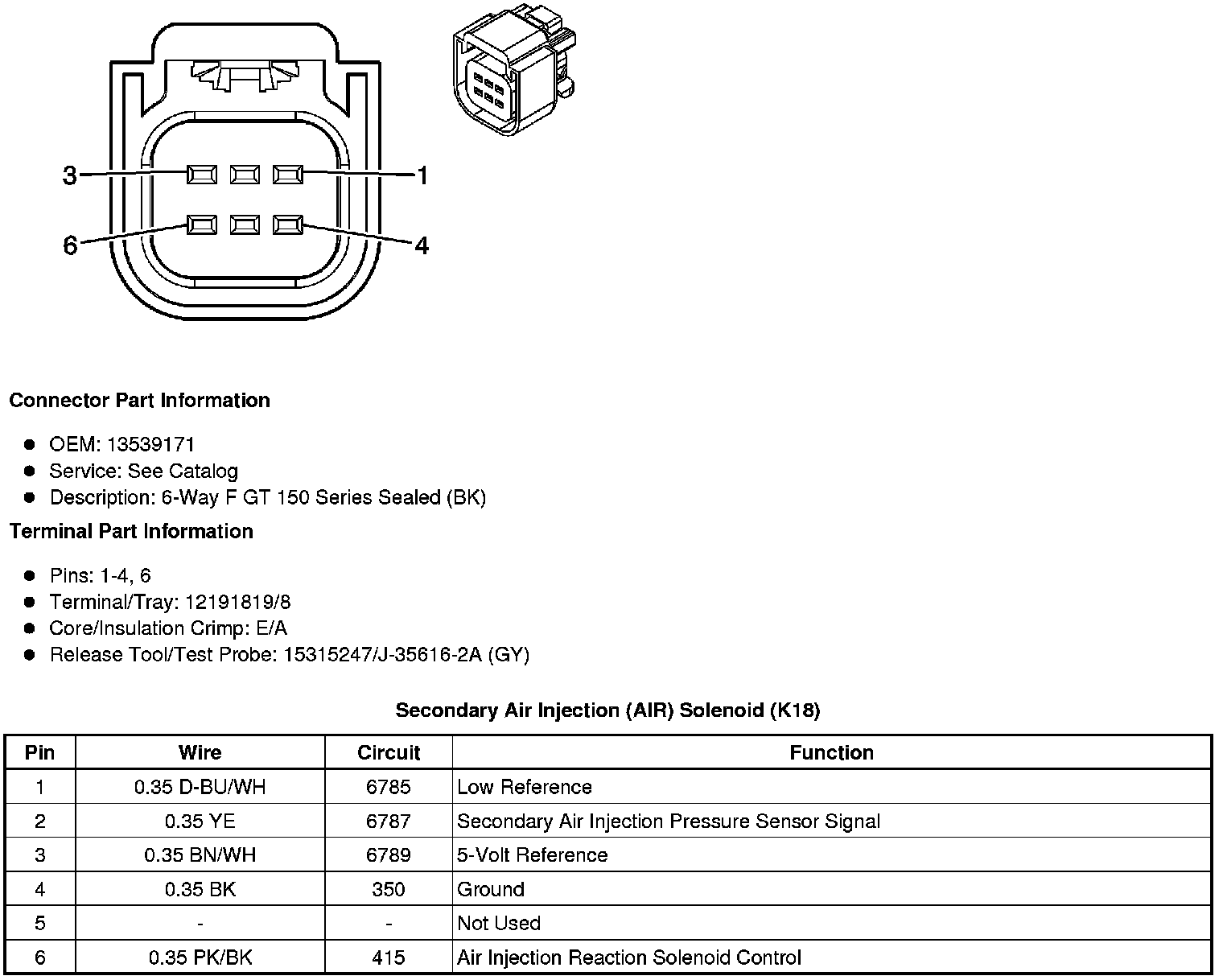

Secondary Air Injection (AIR) Solenoid (K18)

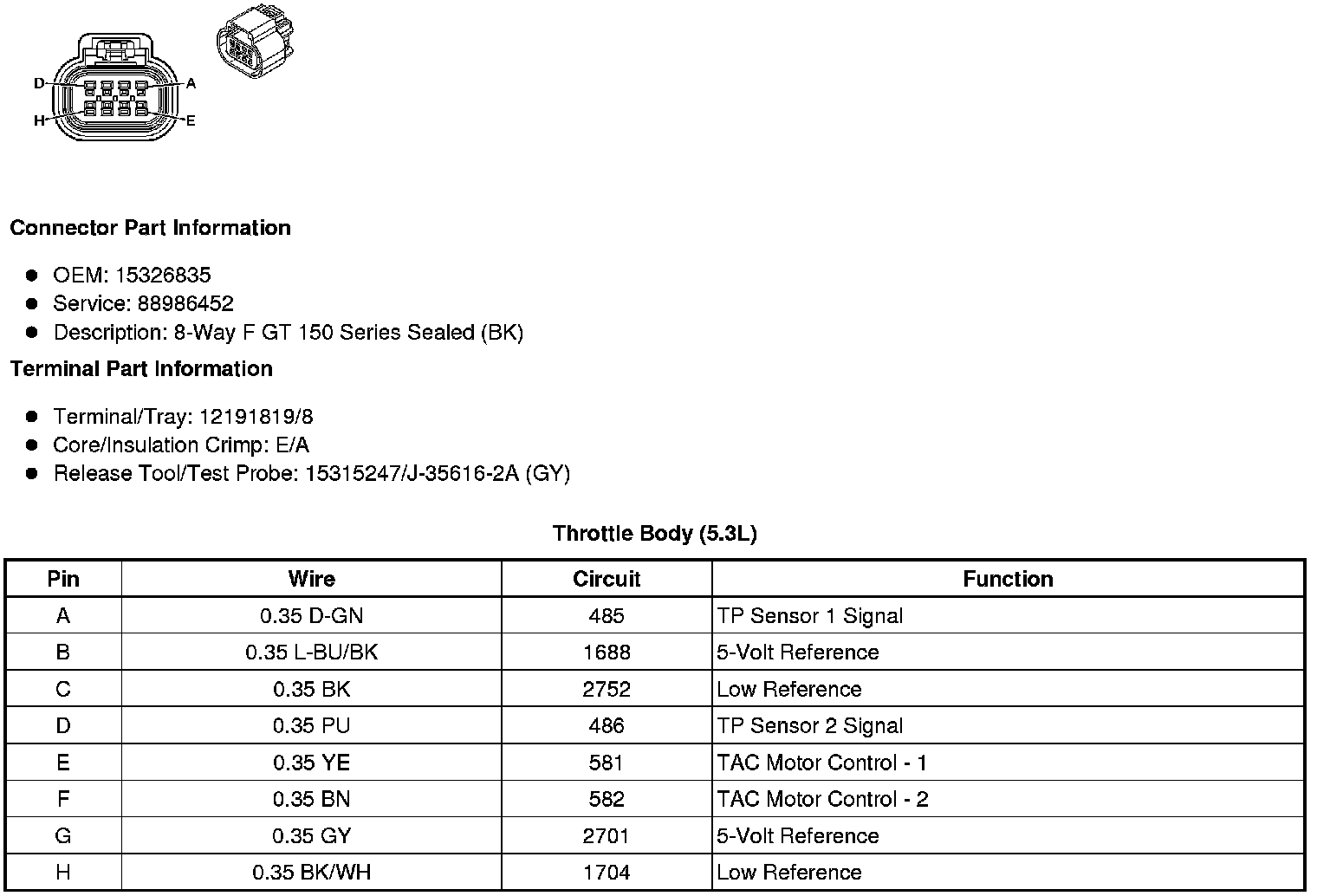

Throttle Body (5.3L)

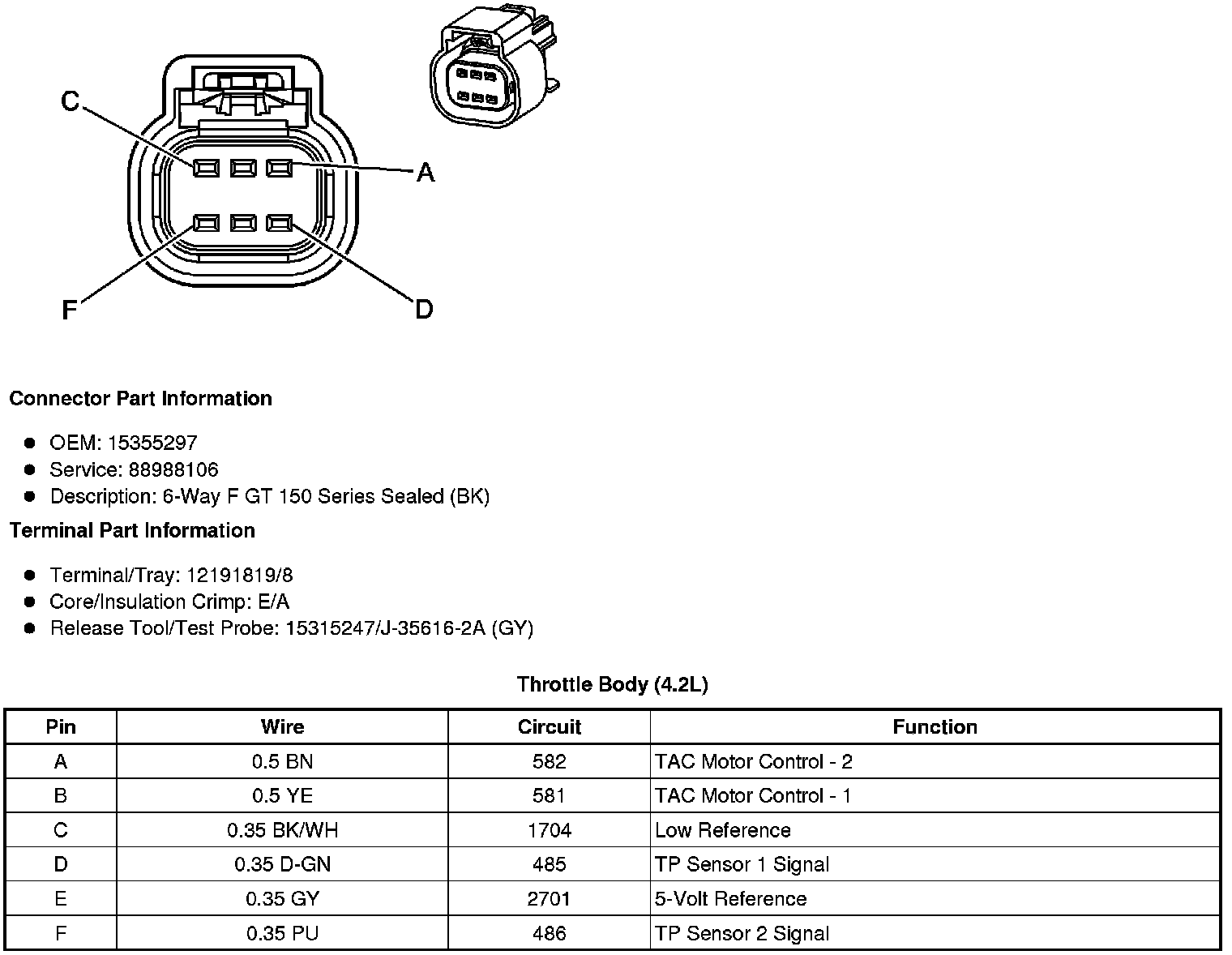

Throttle Body (4.2L)
