Heating and Air Conditioning
Component Connector End Views
A/C Compressor Clutch Assembly

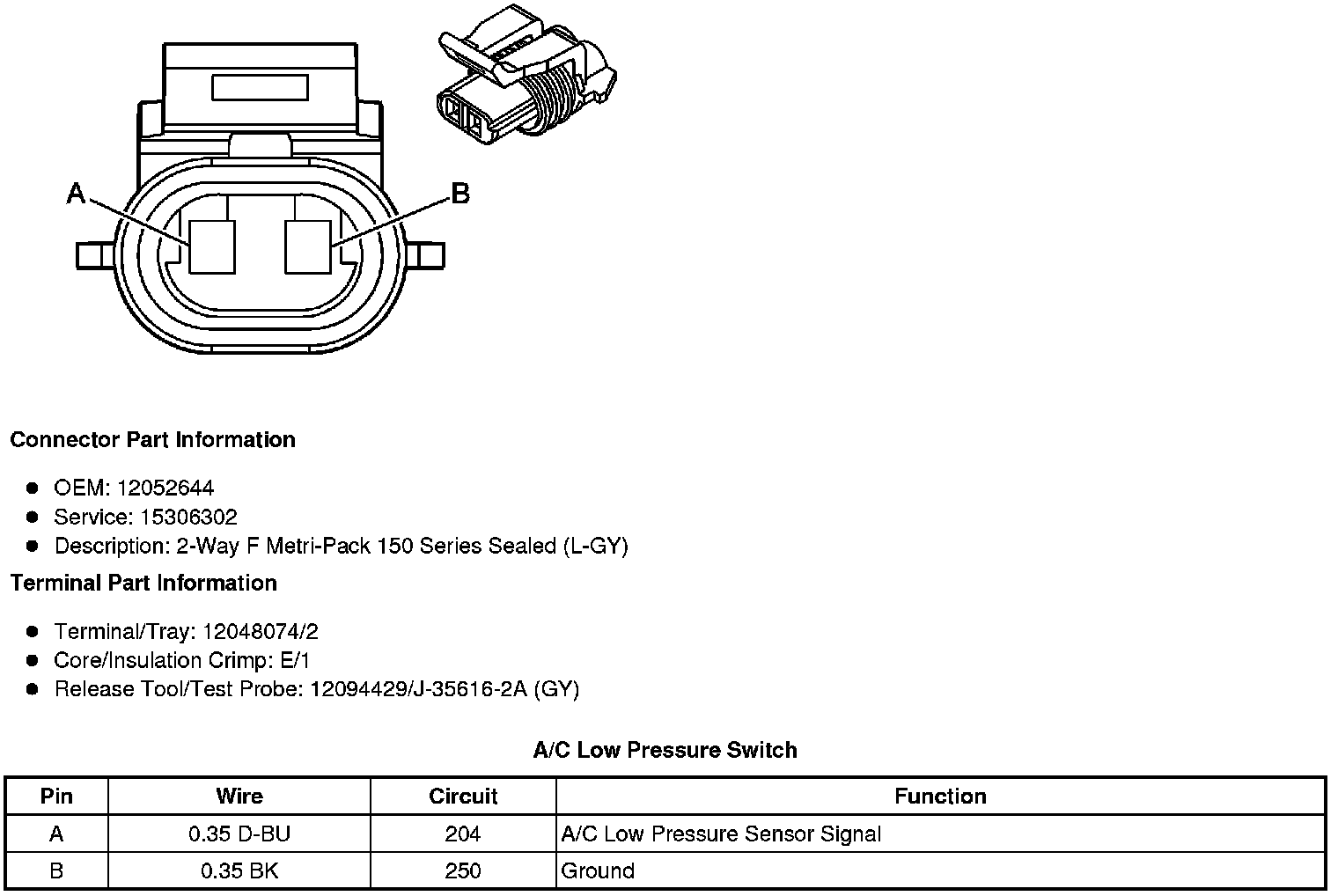

A/C Low Pressure Switch

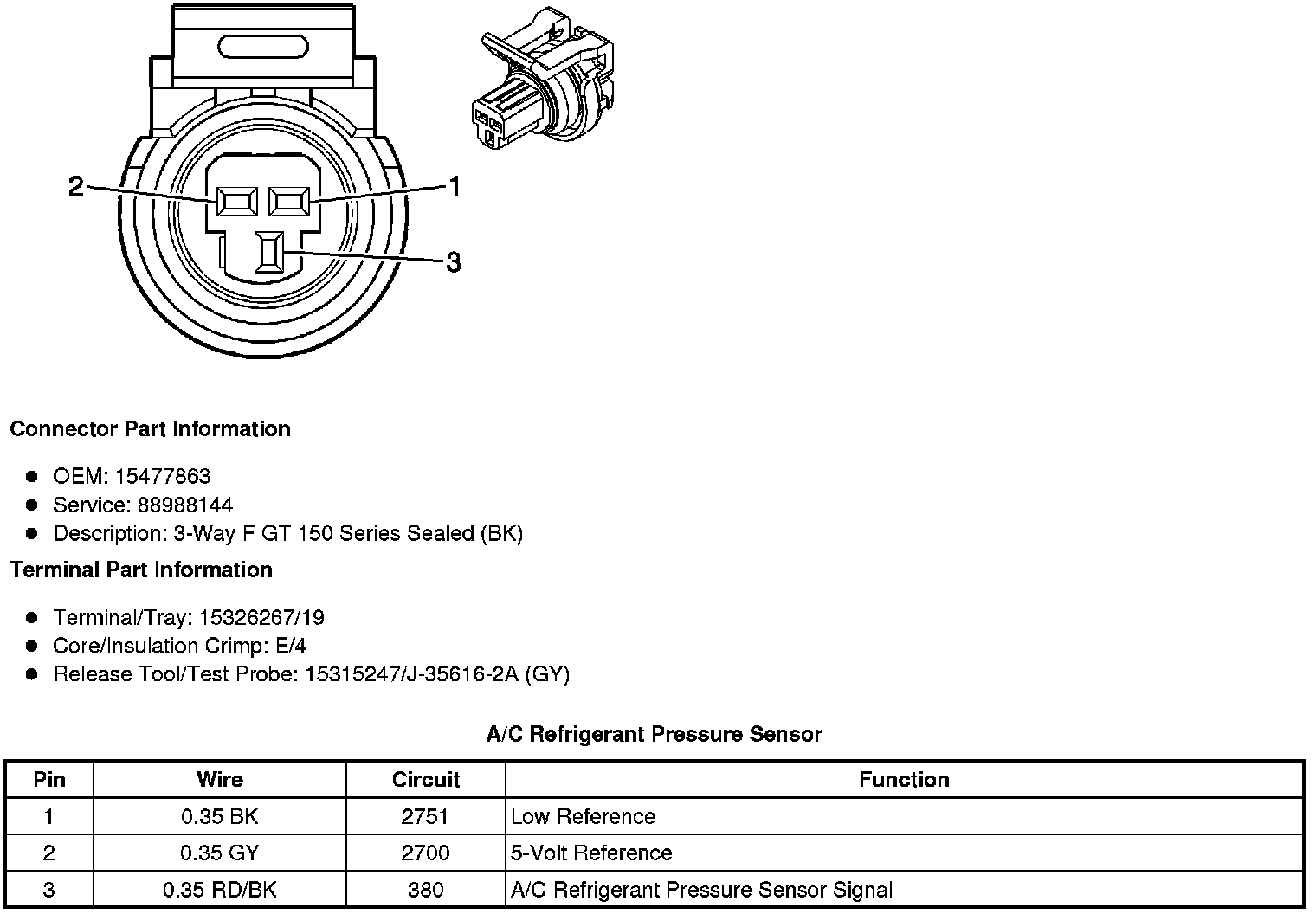

A/C Refrigerant Pressure Sensor

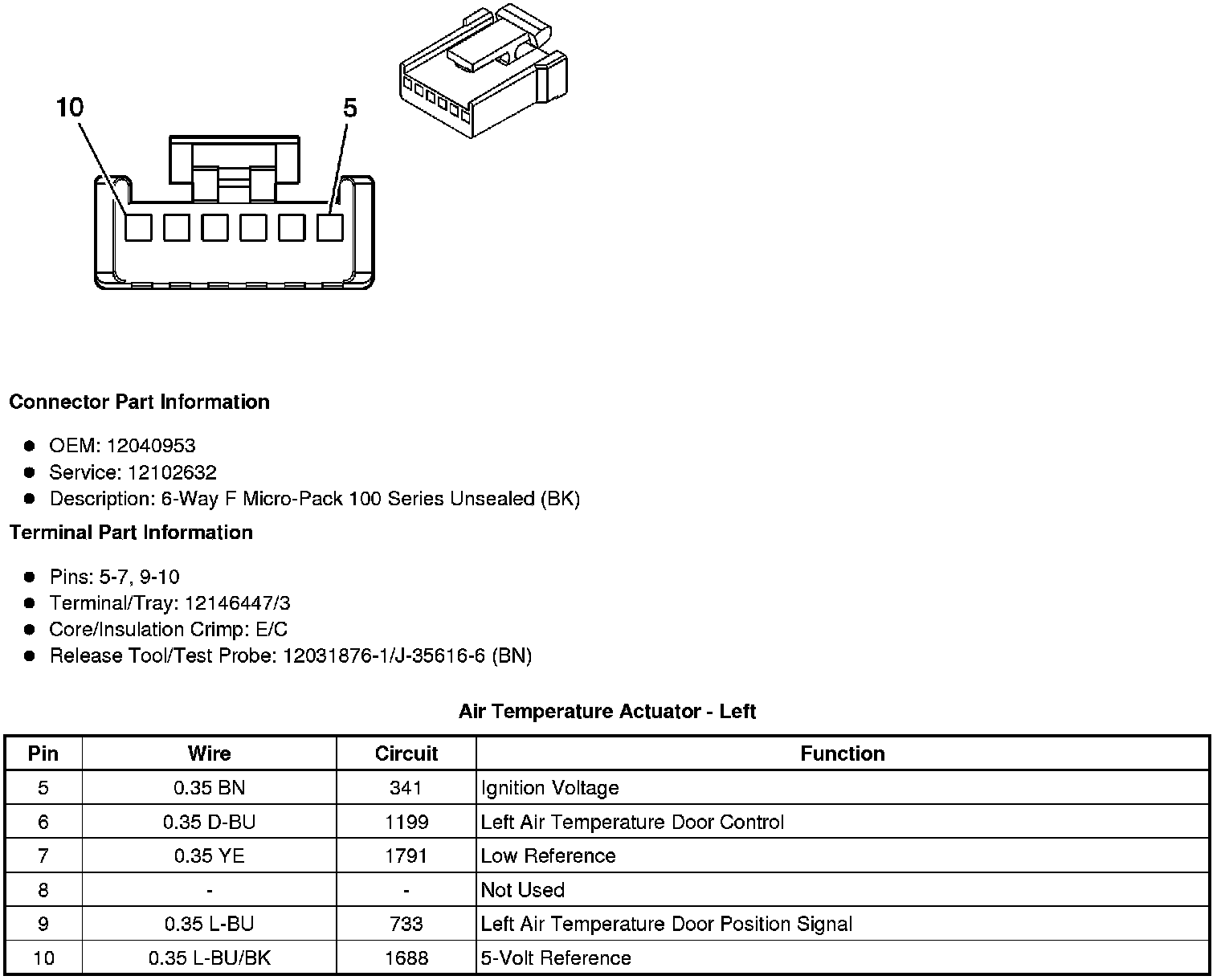

Air Temperature Actuator - Left
Air Temperature Actuator - Right
Air Temperature Sensor - Lower Left
Air Temperature Sensor - Lower Right
Air Temperature Sensor - Upper Left
Air Temperature Sensor - Upper Right
Air Temperature Sensor Assembly - Inside
Ambient Air Temperature Sensor
Blower Motor
Blower Motor Control Module

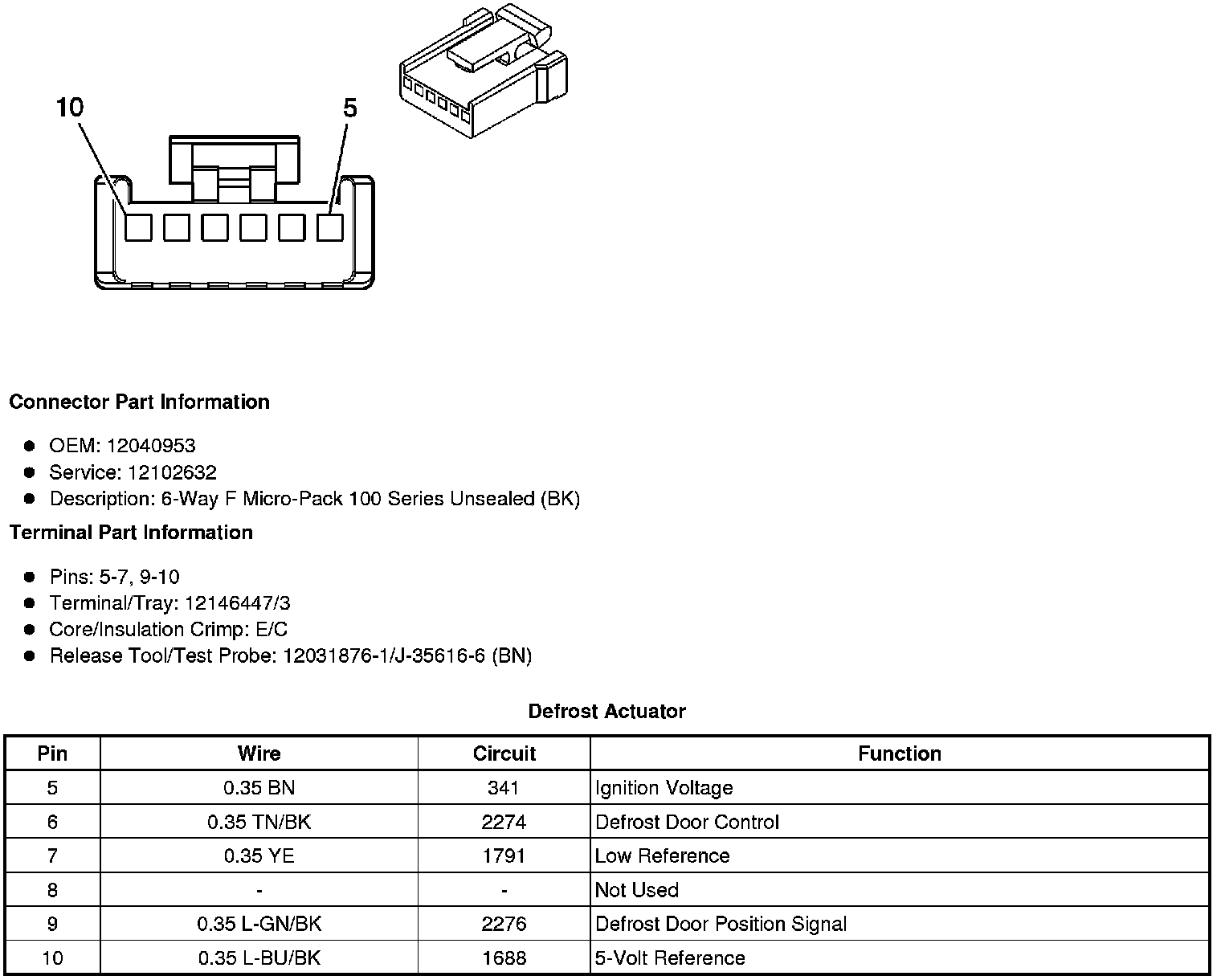

Defrost Actuator

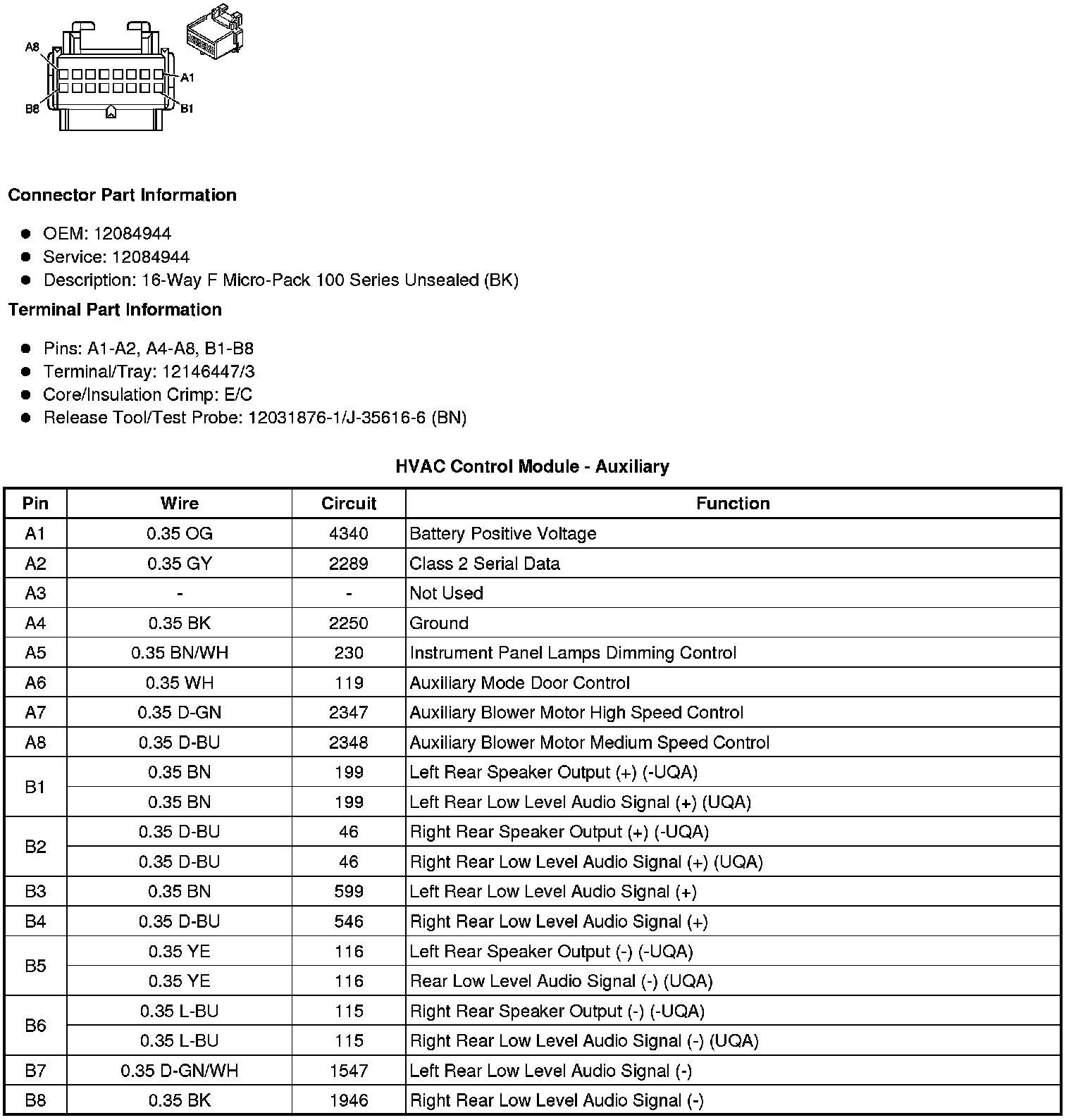

HVAC Control Module - Auxiliary

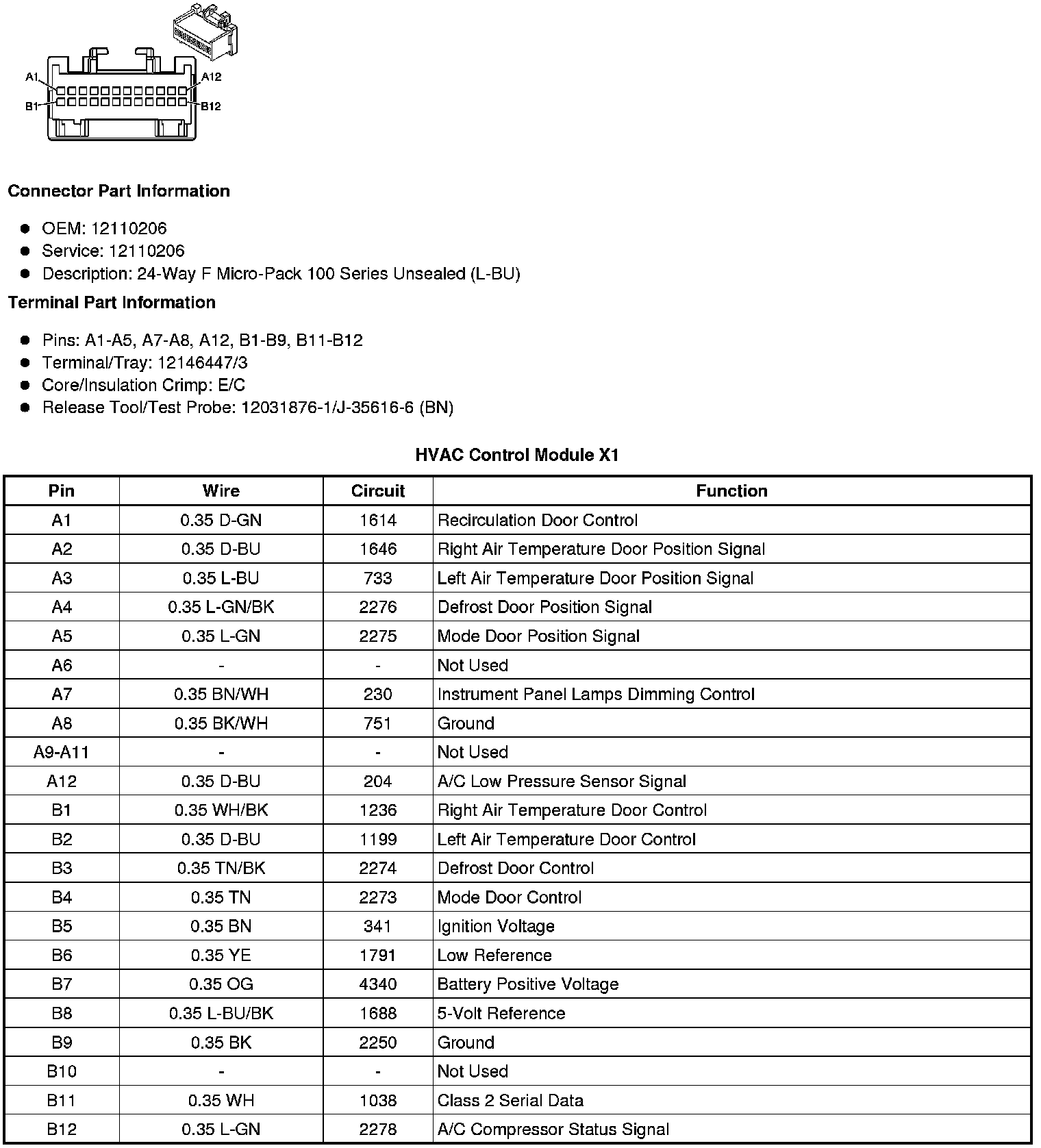

HVAC Control Module X1

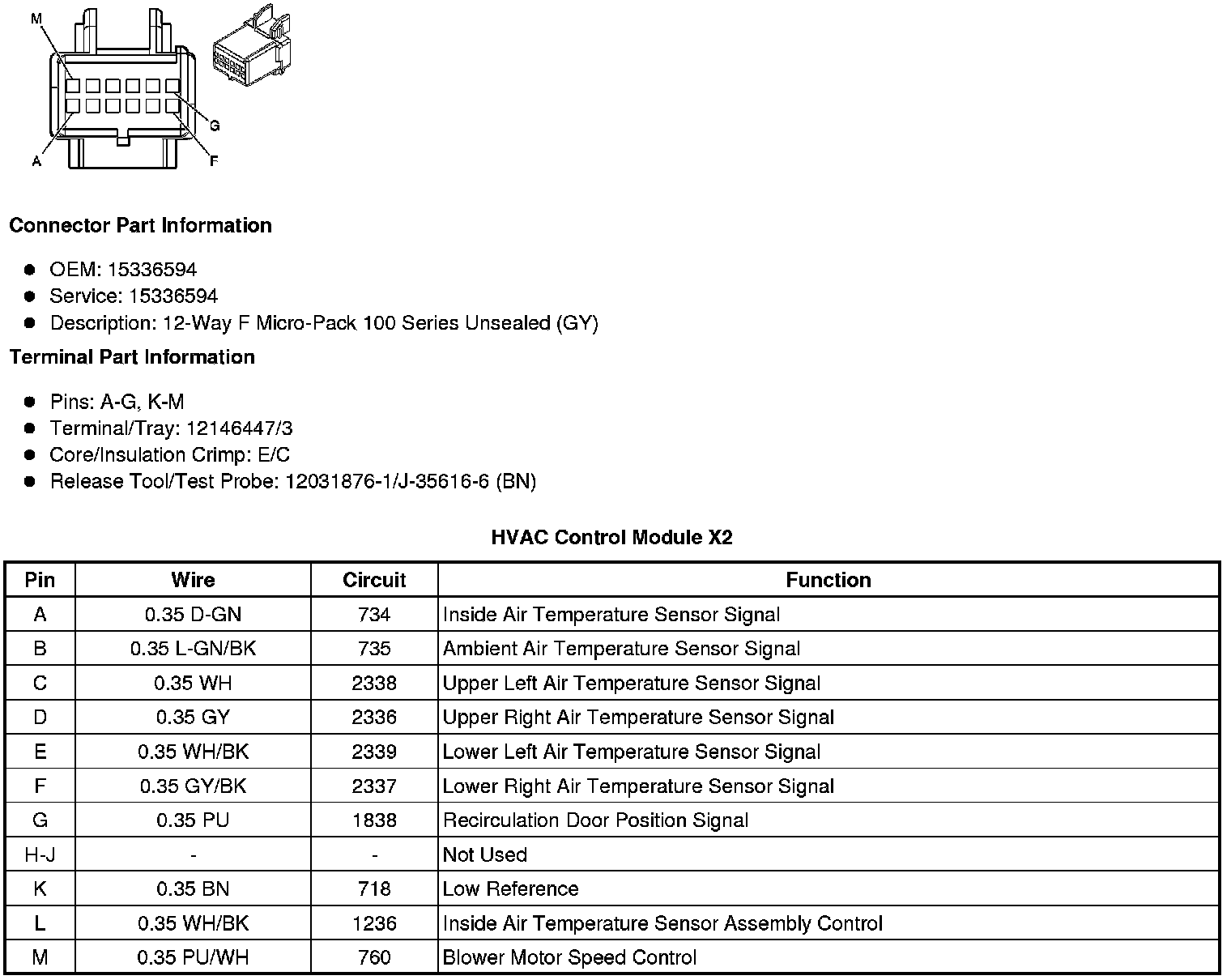

HVAC Control Module X2
Rear Blower Motor
Rear Blower Resistor

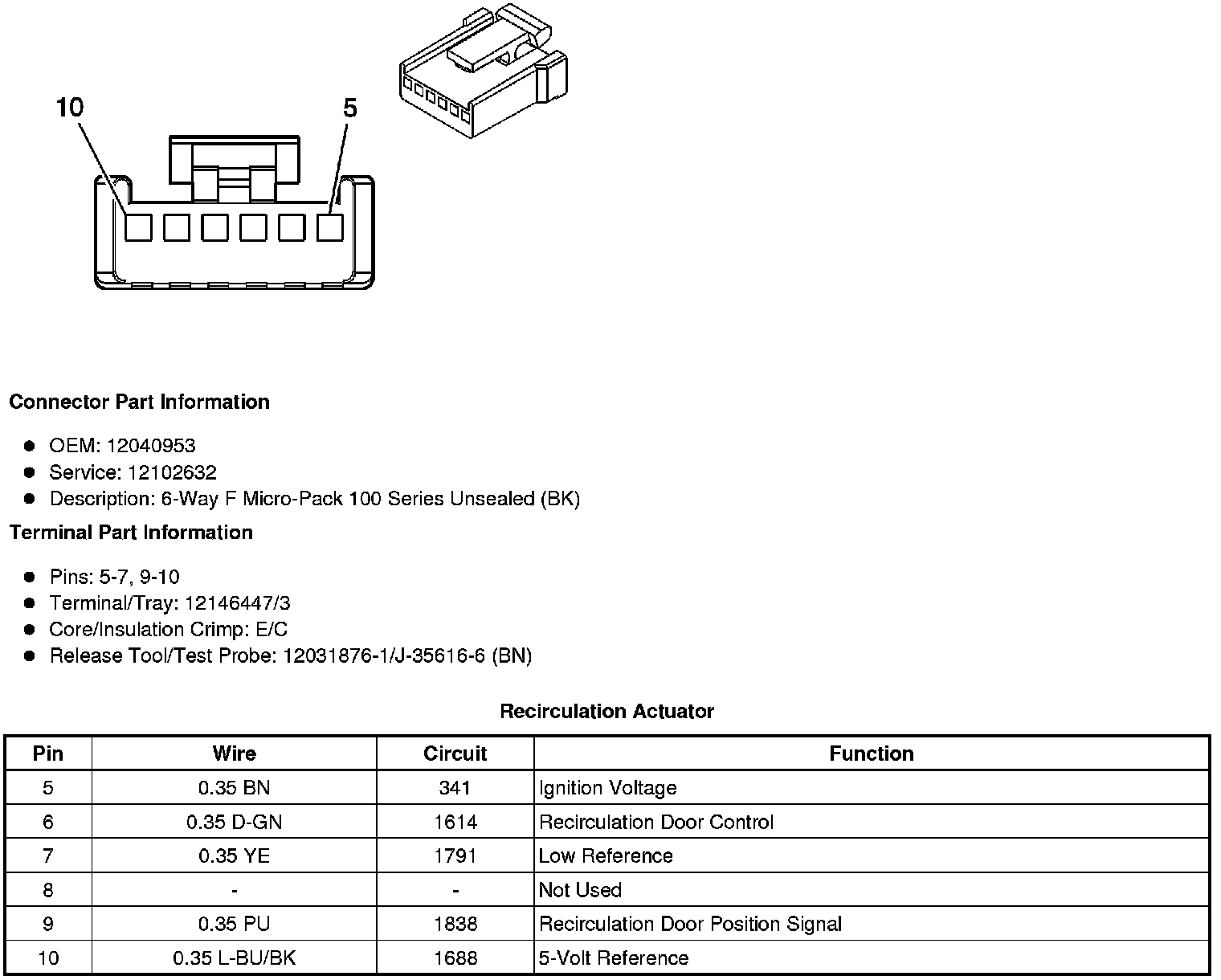

Recirculation Actuator
