Wiper and Washer Systems



Component Connector End Views

Headlamp Washer Fluid Pump (CE4)





Rear Window Washer Fluid Pump

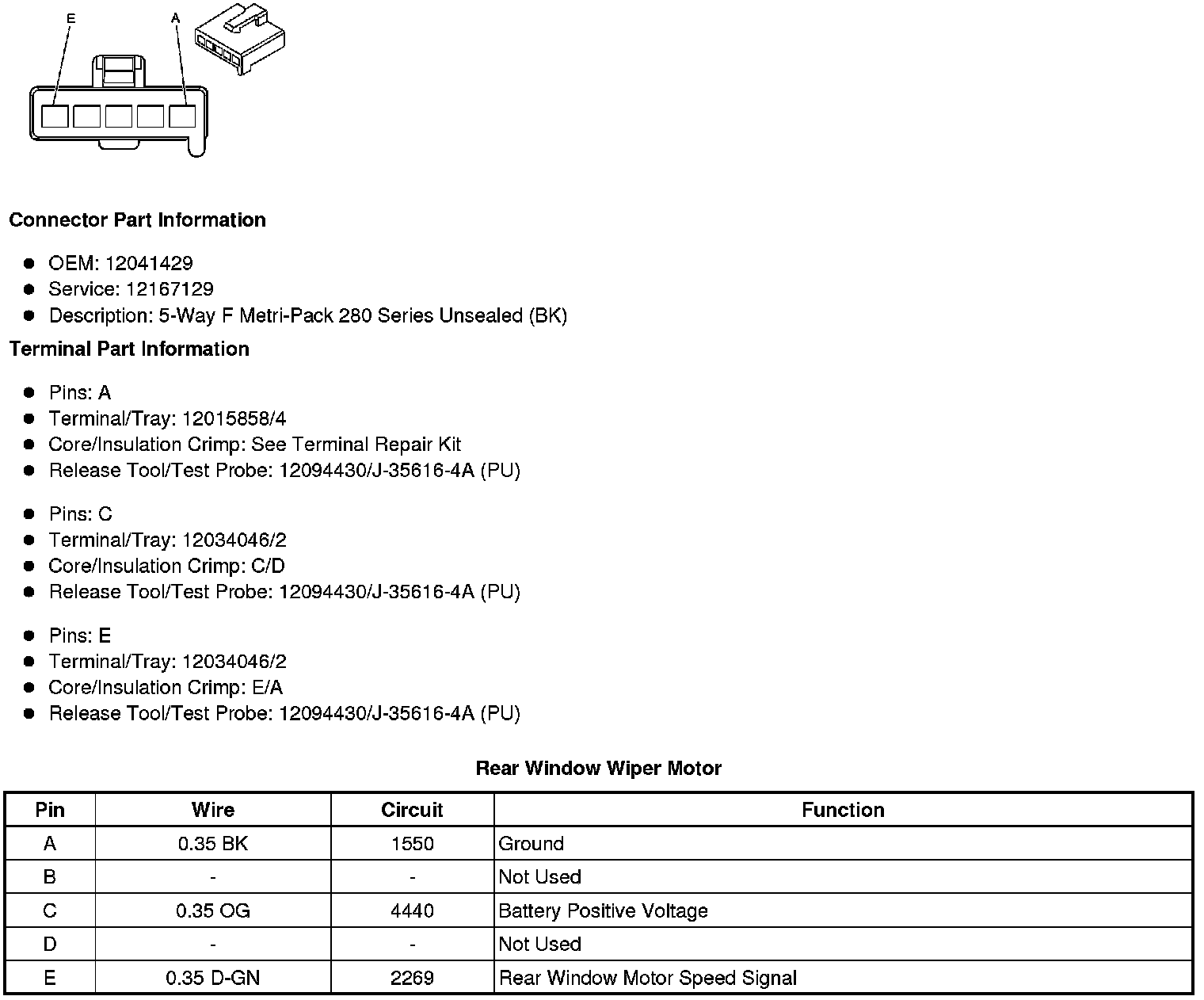

Rear Window Wiper Motor





Rear Window Wiper/Washer Switch





Windshield Washer Fluid Level Switch





Windshield Washer Fluid Pump

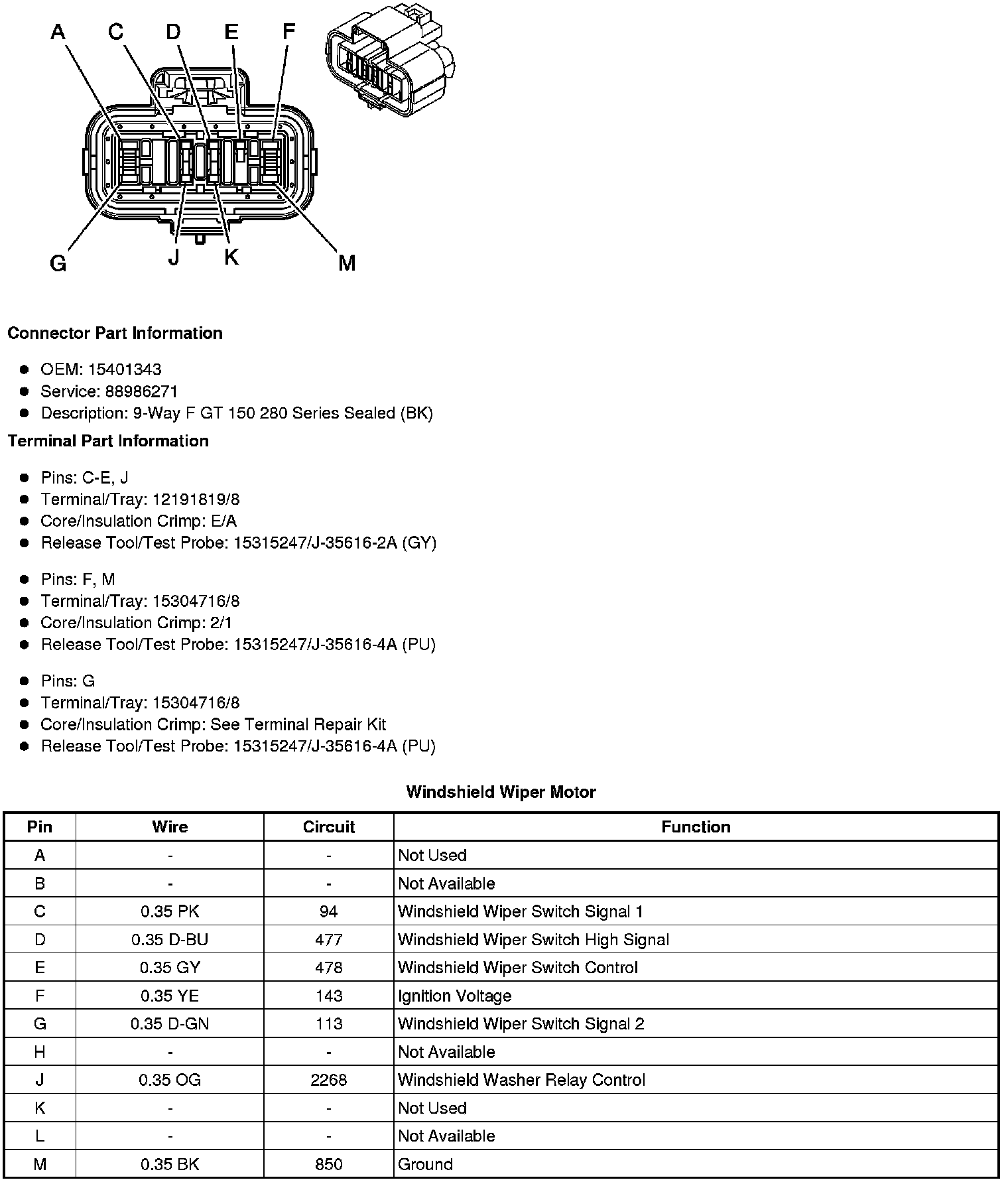

Windshield Wiper Motor





Windshield Wiper/Washer Switch
