Blower Motor Control Module

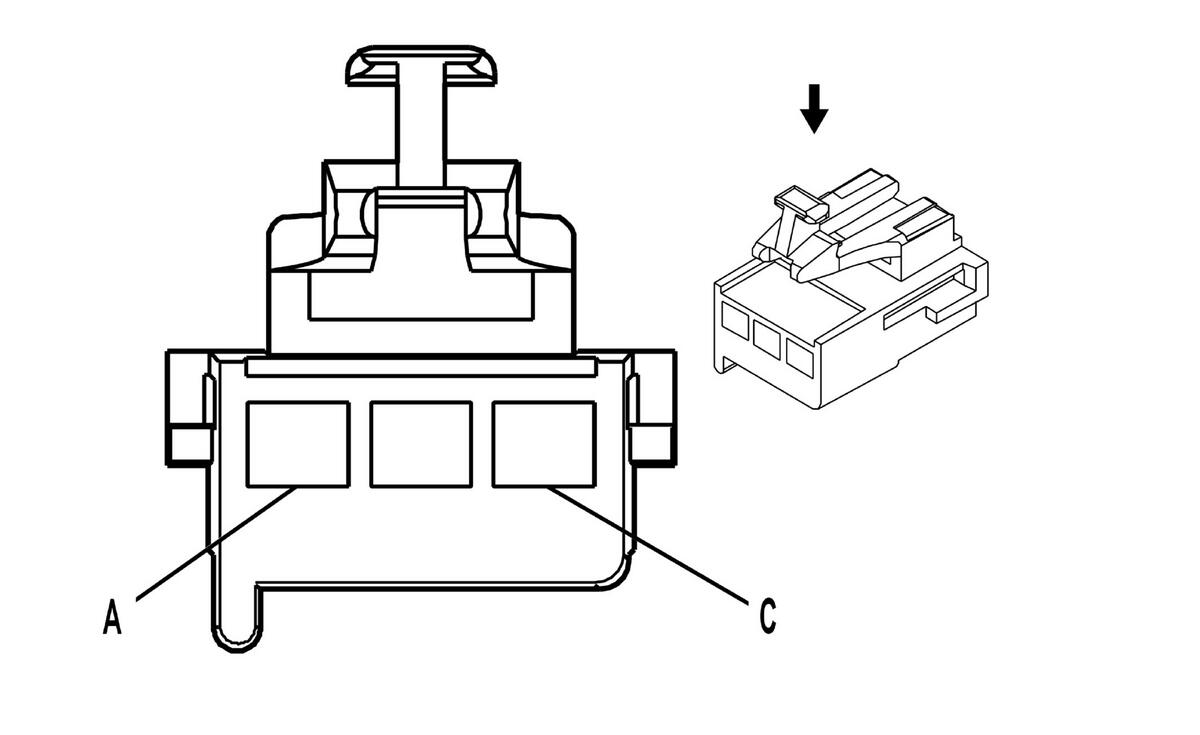

Fig 1: Blower Motor Control Module Connector End View
GM68737Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • OEM: 12129489
  • Service: 12126486
  • Description: 3-Way F Metri-Pack 280 Series Unsealed (BK)
Terminal Part Information
  • Pins: A, C
  • Terminal/Tray: 15324340/19
  • Core/Insulation Crimp: F/G
  • Release Tool/Test Probe: 12094430/J-35616-4A (PU)
  • Pins: B
  • Terminal/Tray: 12110844/4
  • Core/Insulation Crimp: E/C
  • Release Tool/Test Probe: 15315247/J-35616-4A (PU)
Pin Wire Circuit Function
A 0.35 RD 542 Battery Positive Voltage
B 0.35 PU/WH 760 Blower Motor Speed Control
C 0.35 BK 2250 Ground
