Theft Deterrent Control Module

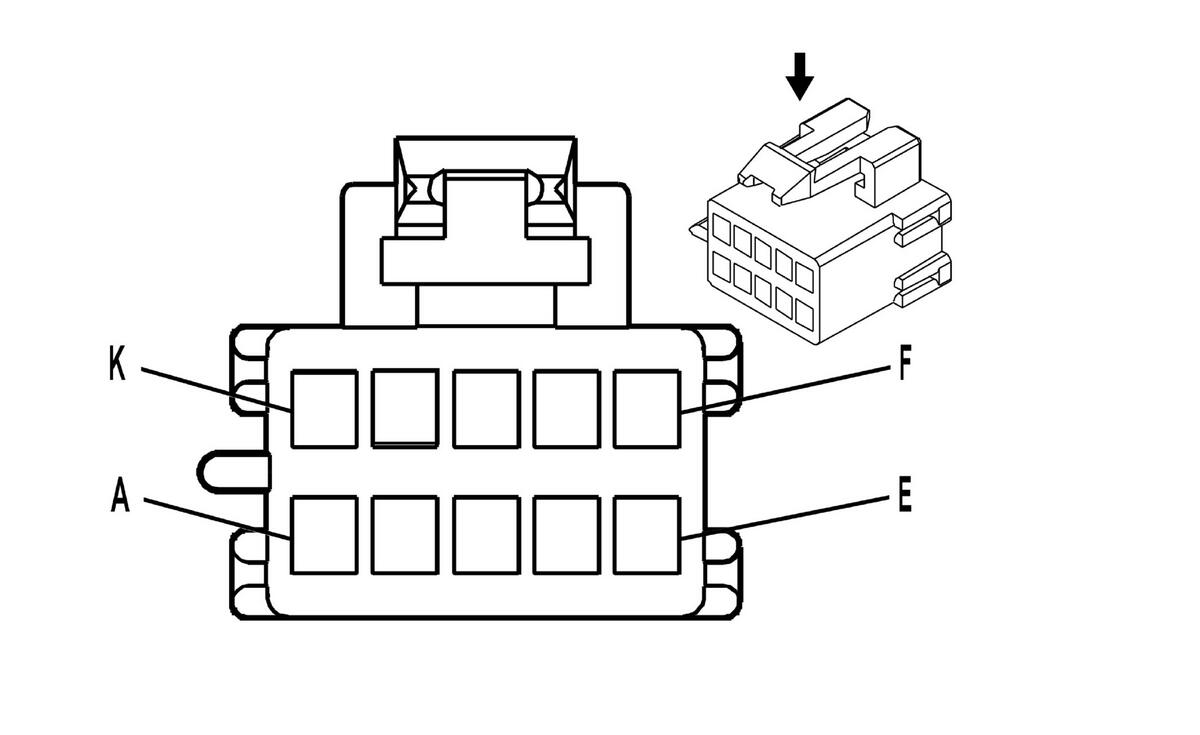

Fig 1: Theft Deterrent Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Connector Part Information

Terminal Part Information

Pin	Wire	Circuit	Function
A	0.35 OG	1140	Battery Positive Voltage
B	0.35 YE	1836	Security System Sensor Signal
C	0.35 WH	1459	Security System Sensor Control
D	0.35 PU	1132	Class 2 Serial Data
E	0.35 YE	710	Class 2 Serial Data
F	0.35 PK	1020	Ignition Voltage
G	-	-	Not Used
H	0.35 BK/WH	751	Ground
J	0.35 BK	1835	Low Reference
K	-	-	Not Used
