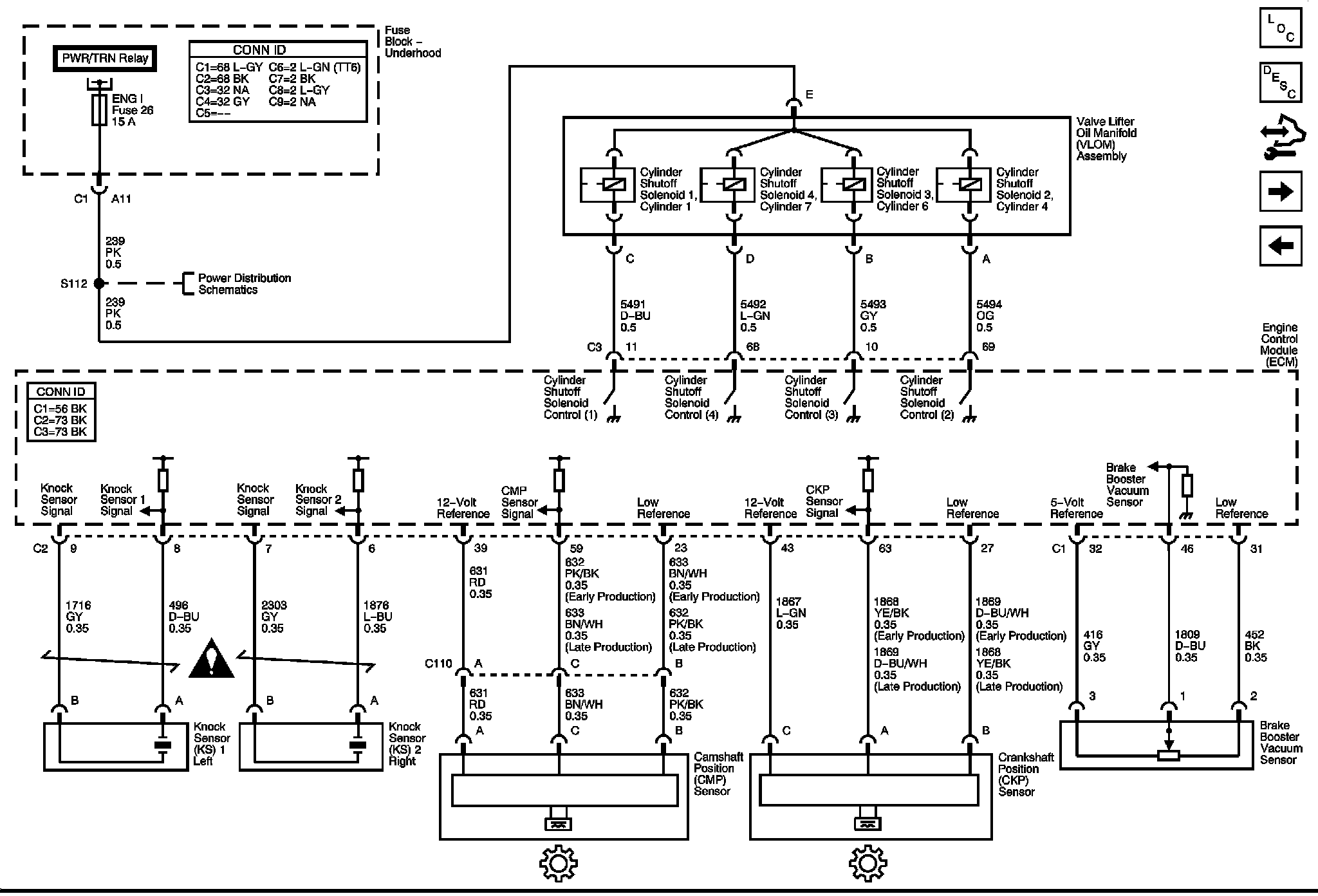

Engine Controls Schematics 9



Engine Controls Schematics


Ignition Controls - Sensors and DOD Controls






Next Diagram Engine Controls Schematics 10

Previous Diagram Engine Controls Schematics 8

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
