Shift Interlock: Locations

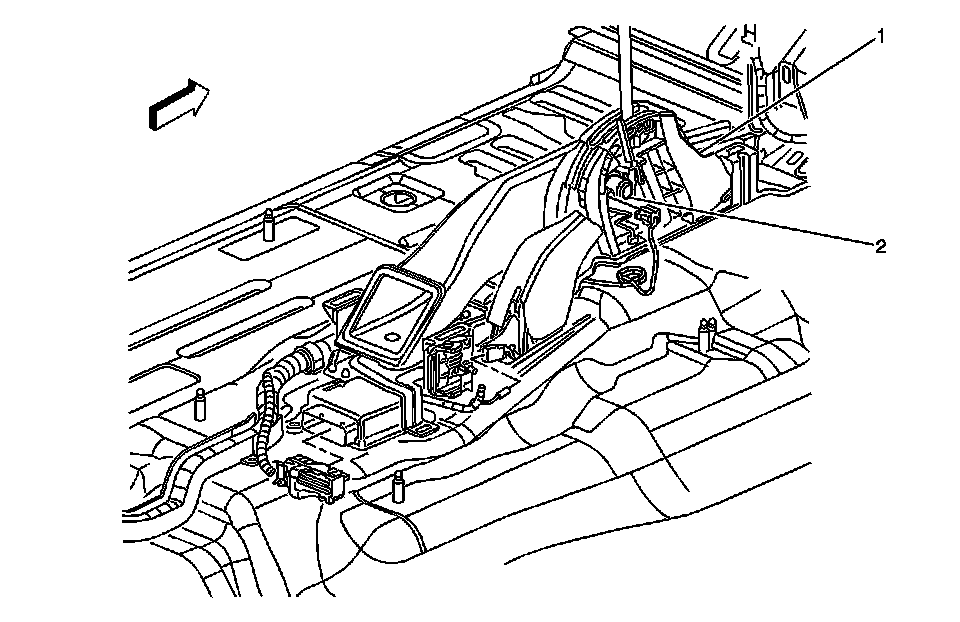

Shift Lock Control Component Views

Automatic Transmission Shift Lock Actuator

Automatic Transmission Shift Lock Actuator:




1 - Lower Console
2 - Automatic Transmission Shift Lock Actuator
