Intake Air Temperature Sensor (407)
4 cylinder petrol
Fig 1: Identifying Intake Air Temperature Sensor For 4-Cylinder Petrol
Courtesy of SAAB-SCANIA OF AMERICA, INC.

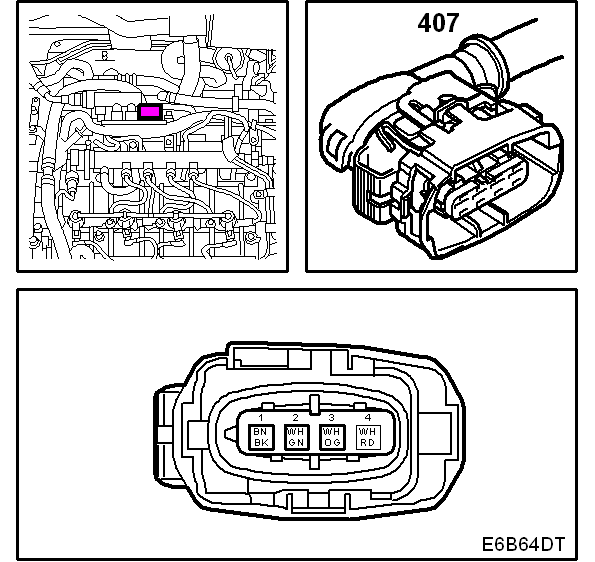

4-cyl diesel
Fig 2: Identifying Intake Air Temperature Sensor For 4-Cylinder Diesel
Courtesy of SAAB-SCANIA OF AMERICA, INC.
