Grounding point G25: Notes

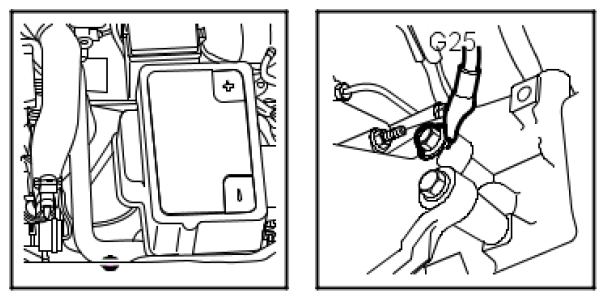

Fig 1: Identifying Grounding Point G25
G05121051Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Identifying Gearbox Location
G05121052Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On the gearbox.
