DICE Control Module (628)

LHD

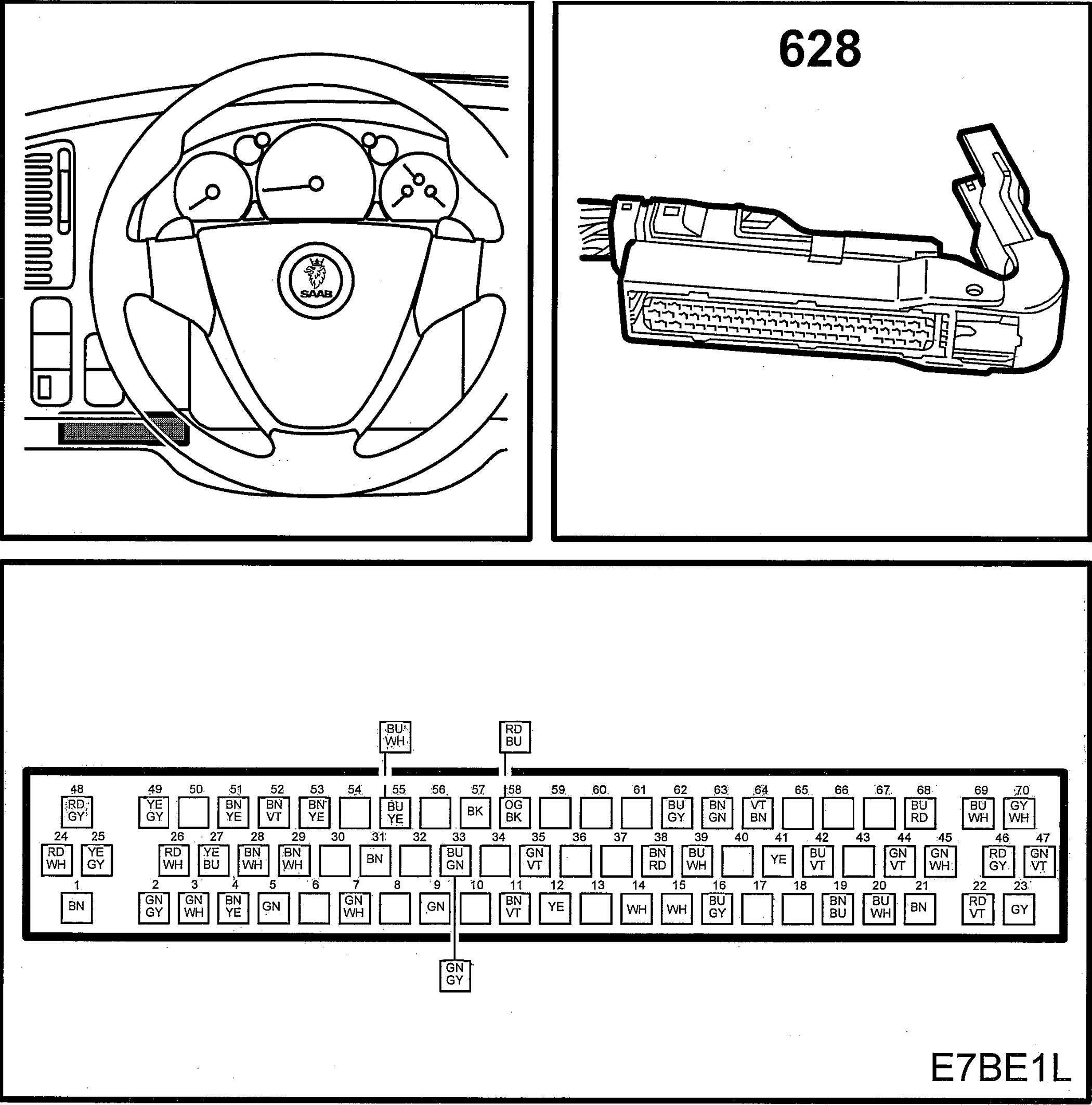

Fig 1: Identifying Dice Control Module (628) Connector (LHD)
G05035777Courtesy of SAAB-SCANIA OF AMERICA, INC.

RHD

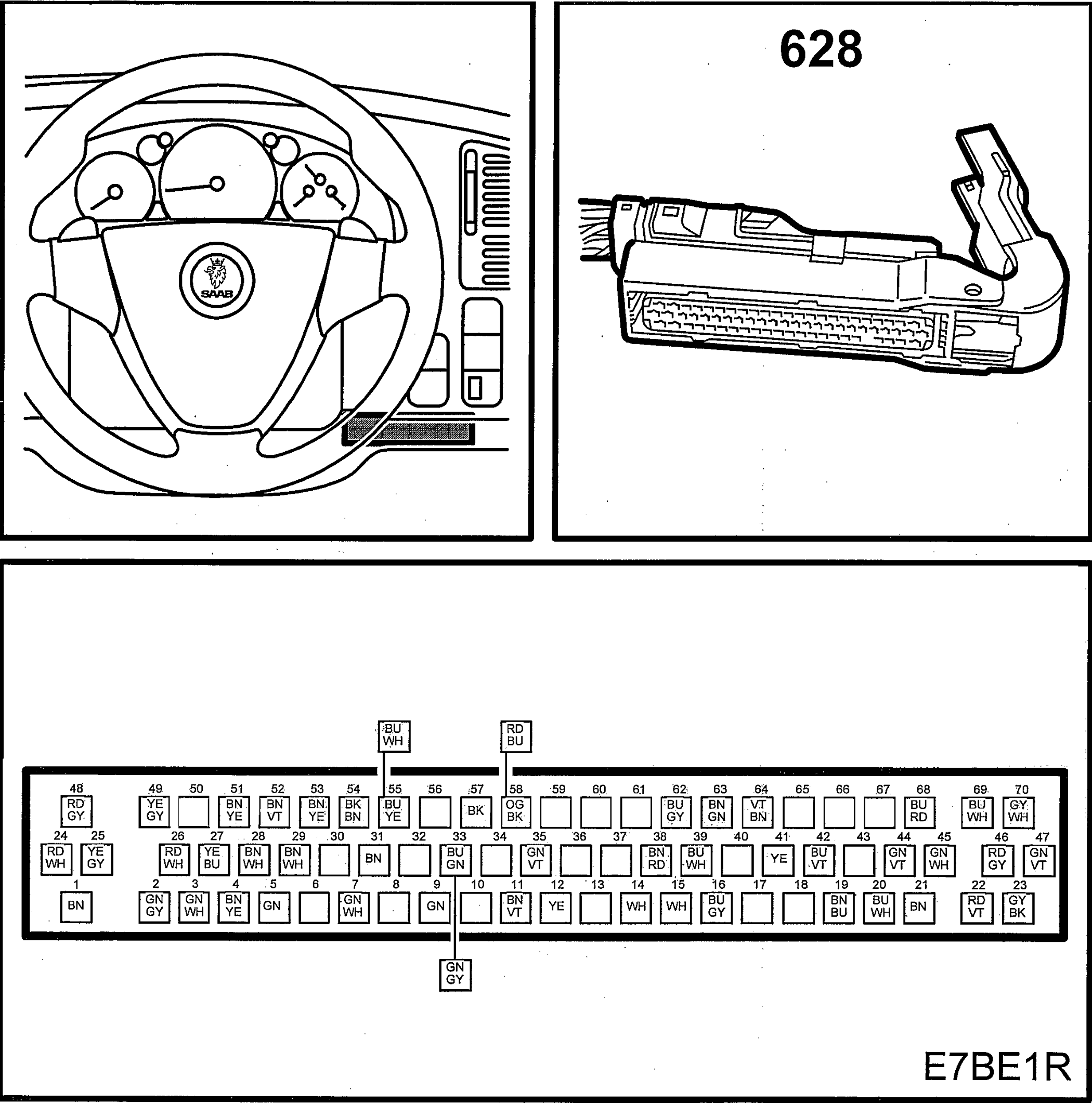

Fig 2: Identifying Dice Control Module (628) Connector (RHD)
G05035778Courtesy of SAAB-SCANIA OF AMERICA, INC.
