Connector 2 (K2), test readings

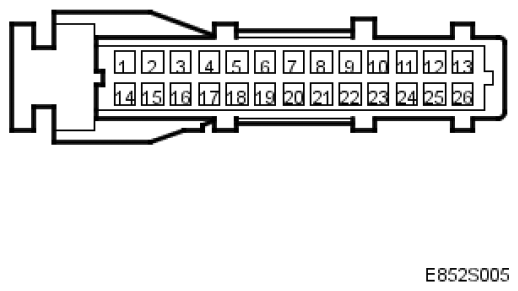

Fig 1: Identifying Connector 2 (K2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONNECTOR 2 (K2), TEST READINGS

Pin	Pin no. BOB	Component/function	Input/Output	Test conditions	Between X and Y	Measurement value (V)
1	9	Power supply of switch	Out	Ignition ON	1-7(K1)	B+
2	10	Memory button 1	In	Button in neutral	2-7(K1)	0
2	10	Memory button 1	In	Button depressed (Ignition ON)	2-7(K1)	B+
3	11	Memory button 2	In	Button in neutral	3-7(K1)	0
3	11	Memory button 2	In	Button depressed (Ignition ON)	3-7(K1)	B+
4	12	Memory button 3	In	Button in neutral	4-7(K1)	0
4	12	Memory button 3	In	Button depressed (Ignition ON)	4-7(K1)	B+
5-17	13-25
18	26	Memory store button	In	Button in neutral	18-7(K1)	0
18	26	Memory store button	In	Button depressed (Ignition ON)	18-7(K1)	B+
19	27	Switch, seat forward	In	Button in neutral	19-7(K1)	0
19	27	Switch, seat forward	In	Button depressed (Ignition ON)	19-7(K1)	B+
20	28	Switch, seat rearward	In	Button in neutral	20-7(K1)	0
20	28	Switch, seat rearward	In	Button depressed (Ignition ON)	20-7(K1)	B+
21	29	Switch, backrest forward	In	Button in neutral	21-7(K1)	0
21	29	Switch, backrest forward	In	Button depressed (Ignition ON)	21-7(K1)	B+
22	30	Switch, backrest rearward	In	Button in neutral	22-7(K1)	0
22	30	Switch, backrest rearward	In	Button depressed (Ignition ON)	22-7(K1)	B+
23	31	Switch, front edge up	In	Button in neutral	23-7(K1)	0
23	31	Switch, front edge up	In	Button depressed (Ignition ON)	23-7(K1)	B+
24	32	Switch, front edge down	In	Button in neutral	24-7(K1)	0
24	32	Switch, front edge down	In	Button depressed (Ignition ON)	24-7(K1)	B+
25	33	Switch, rear edge up	In	Button in neutral	25-7(K1)	0
25	33	Switch, rear edge up	In	Button depressed (Ignition ON)	25-7(K1)	B+
26	34	Switch, rear edge down	In	Button in neutral	26-7(K1)	0
26	34	Switch, rear edge down	In	Button depressed (Ignition ON)	26-7(K1)	B+
