Control Module

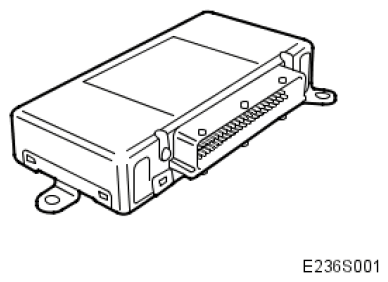

Fig 1: Identifying Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONTROL MODULE SPECIFICATIONS CHART

Location		Under left-hand front seat, screwed on the floor
Number of pins		70
Power supply +30	pin no.	43
Power supply +15, logic/key position	pin no.	16
Power supply +B, logic/key position	pin no.	17
Power ground	pin no.	70
Signal ground	pin no.	37
Instrument BUS, I-BUS (+)	pin no.	38
Instrument BUS, I-BUS (-)	pin no.	15
