Control module connection

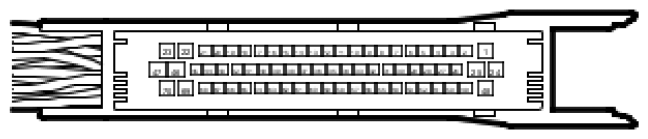

Fig 1: Identifying Control Module Connection
G05037540Courtesy of SAAB-SCANIA OF AMERICA, INC.
COMPONENT FUNCTION CHART

Pin no. Component/Function In/Out Test conditions Across Test reading See
1 Courtesy / floor lighting Out Door open 1-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
2 Luggage compartment lighting Out Boot lid open 2-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
3 Hazard flashers, switch In Switch depressed (closed) 3-26 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
4 Dipped beam relay Out Light switch in pos. 2.
Ignition ON		 4-26 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
5 I-BUS (-) In/Out BUS active 5-57 2-3V See BUS MESSAGES, DICE .
6 No connection
7 Ignition +B, logic In Key turned in ignition switch 7-57 B+ See CONTROL MODULE POWER SUPPLY  and BUS MESSAGES, DICE .
8 No connection
9 A/C pressure sensor in In Ignition ON 9-54 0.4-4.6 V (2-30 bar) Heating and ventilation, A/C. See PRESSURE SENSOR .
10 Evaporation temperature sensor. Power supply In Ignition ON 10-30 6°C = 2.8-3.7V Heating and ventilation, A/C. See EVAPORATOR .
11 Main beam relay Out Main beam, light switch in pos. 2.
Ignition ON		 11-26 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
12 Rear window intermittent wiper, relay Out Activate with diagnostic tool 12-26 B+ See WASH/WIPE SYSTEMS .
13 No connection
14 I-BUS (+) In/Out BUS active 14-57 2-3V See BUS MESSAGES, DICE .
15 Light switch, pos. 2 In Light switch in pos. 2. 15-57 B+ Lighting and signalling system
Ignition ON See HEADLAMPS, HALOGEN .
16 Rear fog lights, switch In Light switch in pos. 2. 16-57 B+ Lighting and signalling system
Ignition ON. Hold switch depressed (closed) See REAR FOG LIGHT .
17 No connection
18 Electrically heated rear window from MCC In Hold switch depressed (closed) 18-57 B+ Glass, windows and mirrors. See ELECTRICALLY HEATED REAR WINDOW AND DOOR MIRRORS .
19 Rear window intermittent wiper, switch In Ignition ON.
Switch in intermittent position.		 19-57 B+ See WASH/WIPE SYSTEMS
20 Direction indicators LH, switch In Switch to the left. 20-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
21 Intermittent wiper, switch In Ignition ON.
Switch in intermittent position.		 21-57 B+ See WASH/WIPE SYSTEMS
22 Direction indicators, power supply +30 In Always +30. 22-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
23 Interior lighting Out Door open. 23-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
24 Comfort lighting in cabin, power supply +30 In Always +30 24-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
25 Rear fog light, lamp Out Light switch in pos. 2. 25-57 B+ Lighting and signalling system
Ignition ON. Hold switch depressed (closed). See REAR FOG LIGHT .
26 DICE, power supply +30 In Always +30 26-57 B+ See CONTROL MODULE POWER SUPPLY .
27 Headlamp wiper, relay Out Activate with diagnostic tool. 26-27 B+ See WASH/WIPE SYSTEMS
28 Diagnostics KW 2000 In/Out Communication with DICE or a BUS system 28-57 11V See BUS MESSAGES, DICE  and TECH 2 MENU STRUCTURE .
29 Front fog lights, relay Out Market dependent or activate with diagnostic tool. 26-29 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
30 Evaporator temperature sensor, ground In Always 26-30 B+ Heating and ventilation, A/C. See EVAPORATOR .
31 Ignition +54, logic In Key in "ON" position 31-57 B+ See CONTROL MODULE POWER SUPPLY .
32 No connection
33 Intermittent wiper potentiometer, ground In Always 26-33 B+ WASH/WIPE SYSTEMS
34 No connection
35 Radiator fan, low speed, relay Out Activate with diagnostic tool 26-35 B+ Cooling system
LINK.
36 No connection
37 No connection
38 A/C pressure sensor, power supply Out Ignition ON 38-57 5V Heating and ventilation, A/C. See PRESSURE SENSOR .
39 Light switch in zero position In Light switch in zero position. Ignition ON 39-57 B+ (fuse 35 fitted) Lighting and signalling system
0V (fuse 35 not fitted) See HEADLAMPS, HALOGEN .
40 No connection
41 Main/dipped beam In Move stalk switch to farthest position 41-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
42 Rear window washer, switch In Ignition ON.
Switch activated.		 42-57 B+ WASH/WIPE SYSTEMS
43 No connection
44 Direction indicators RH, switch In Switch to the right 44-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
45 Reversing-light switch In Reverse gear selected 45-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
46 Map/cabin lighting, power supply +30 In Always +30 46-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
47 Direction indicators RH, lamp Out Switch to the right 47-57 B+ Lighting and signalling system
Ignition ON See HAZARD WARNING LIGHTS .
48 Rear fog light, power supply +30 In Always +30 48-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
49 Button illumination Out Light switch in pos. 2. 49-57 PWM 3.5V to B+ Lighting and signalling system
Ignition ON.
Rheostat in max. position.		 See LIGHTING FOR BUTTONS AND CONTROLS .
50 No connection
51 Radiator fan, high, relay 2 Out Activate with diagnostic tool 26-51 B+ Cooling system. See COOLING SYSTEM -- SAAB 9-5 .
52 Electrically heated rear window, relay Out Ignition ON. Hold switch depressed (closed). 26-52 B+ Glass, windows and mirrors. See ELECTRICALLY HEATED REAR WINDOW AND DOOR MIRRORS .
53 Radiator fan, high, relay 1 Out Activate with diagnostic tool. 26-53 B+ Cooling system. See COOLING SYSTEM -- SAAB 9-5 .
54 A/C pressure sensor, ground In Always 26-54 B+ Heating and ventilation, A/C. See PRESSURE SENSOR .
55 Intermittent wiper, rheostat In Ignition ON 55-57 2 sec: 0V 15 sec: 6.3V WASH/WIPE SYSTEMS
56 No connection
57 Ground In Always 57-B+ B+ See CONTROL MODULE GROUND .
58 Intermittent wiper, relay Out Activate with diagnostic tool. 58-B+ B+ WASH/WIPE SYSTEMS
59 No connection
60 No connection
61 No connection
62 Front fog lights, switch In Ignition ON. Hold switch depressed (closed). 62-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
63 Front wiper, park position In Windscreen wiper not in parked position. 63-57 B+ Wash/wipe systems
Ignition ON See WINDSCREEN WIPERS WITH RAIN SENSOR .
64 Ignition +15, logic In Ignition ON 64-57 B+ See CONTROL MODULE POWER SUPPLY .
65 A/C request MCC In Ignition ON 65-57 B+ Heating and ventilation, A/C
Hold A/C switch depressed (closed). See HEATING AND VENTILATION, A/C -- SAAB 9-5 .
66 No connection
67 No connection
68 Windscreen washers, switch In Ignition ON.
Switch activated.		 68-57 B+ WASH/WIPE SYSTEMS
69 Direction indicators LH, lamp Out Ignition ON.
Switch to the left.		 69-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
70 Reading lamp Out Ignition ON 70-57 B+ Lighting and signalling system. See LIGHTING AND SIGNALLING SYSTEMS .
