Premium Audio System With Navigation System: Notes

WARNING: This page is about a different car, the 2007 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

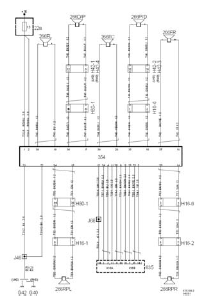

Fig 1: Premium Audio System With Navigation System - Circuit Diagram
G05124135Courtesy of SAAB-SCANIA OF AMERICA, INC.
