Fuel Level Sensor (46)



Location: integrated in the fuel pump unit 689

Petrol, market US/CA and 4WD

4WD: The fuel pump unit is located on the right-hand side of the fuel tank

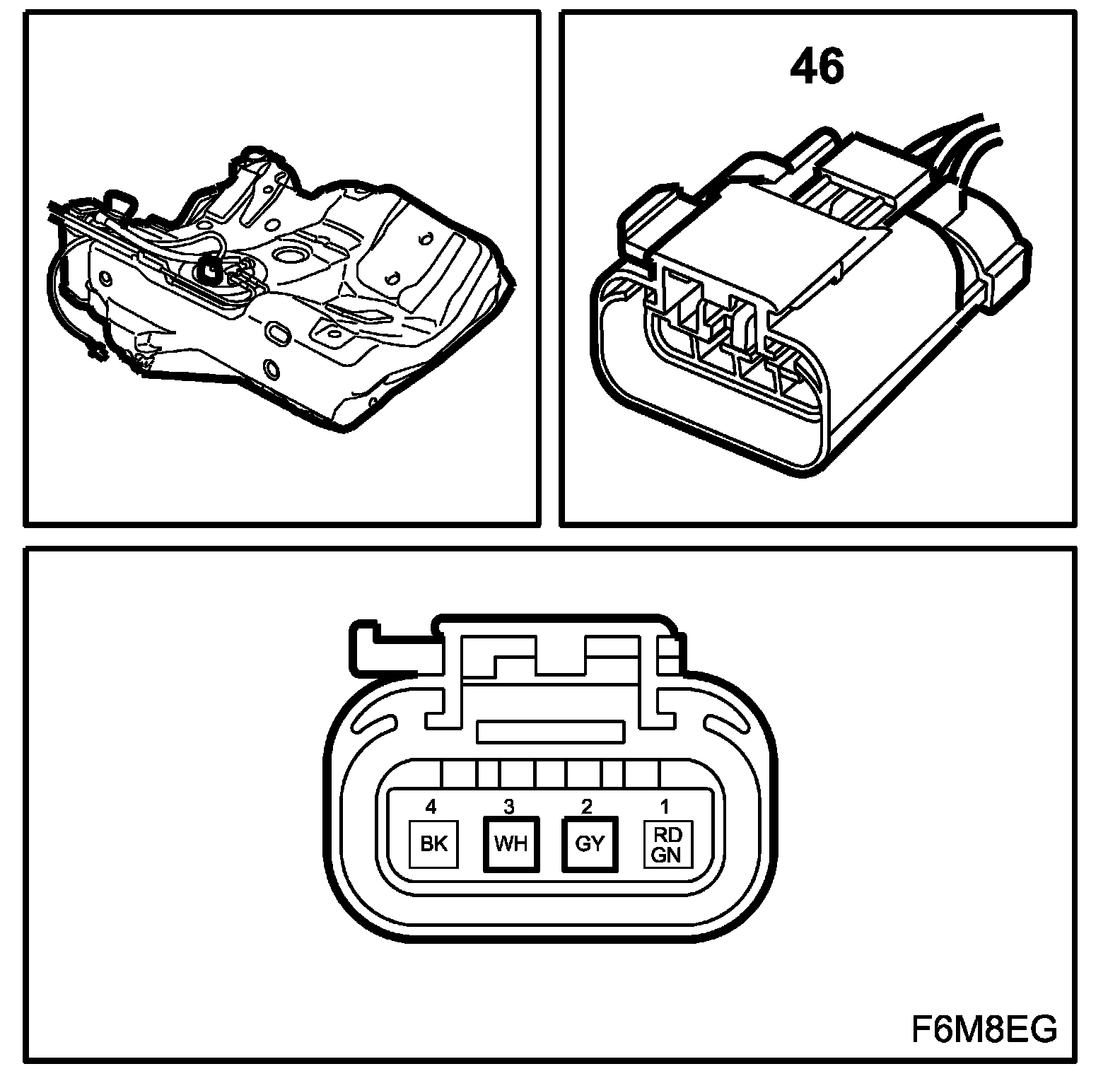

Fuel Level Sensor (46):
