Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor (ORVR)

To remove
1. Remove the fuel tank.

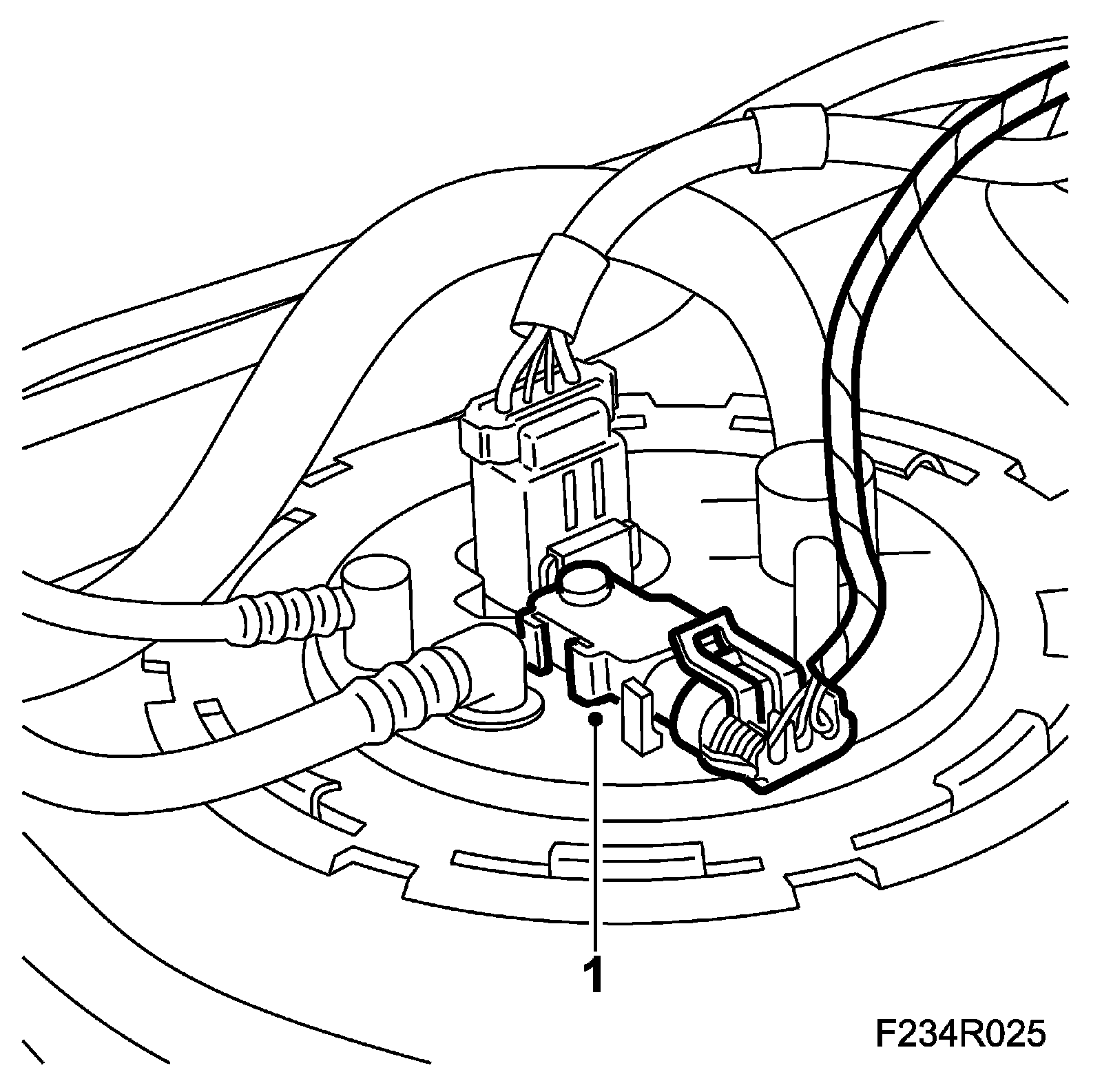

2. Unplug the connector and remove the pressure sensor.





To fit

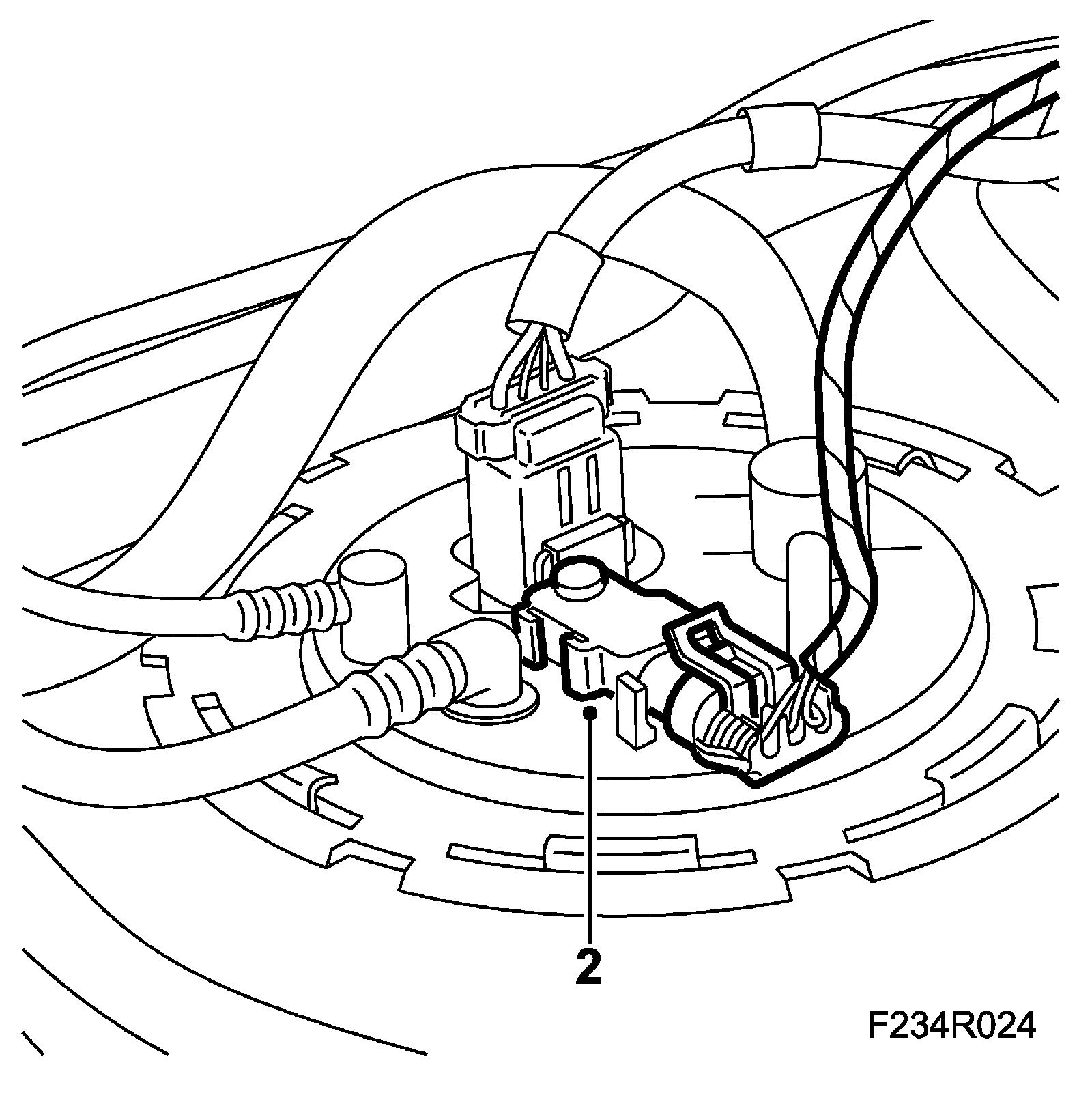

1. Fit the pressure sensor and plug in the connector.





2. Fit the fuel tank.
