Air Flow Meter/Sensor: Service and Repair

Mass Air Flow Sensor

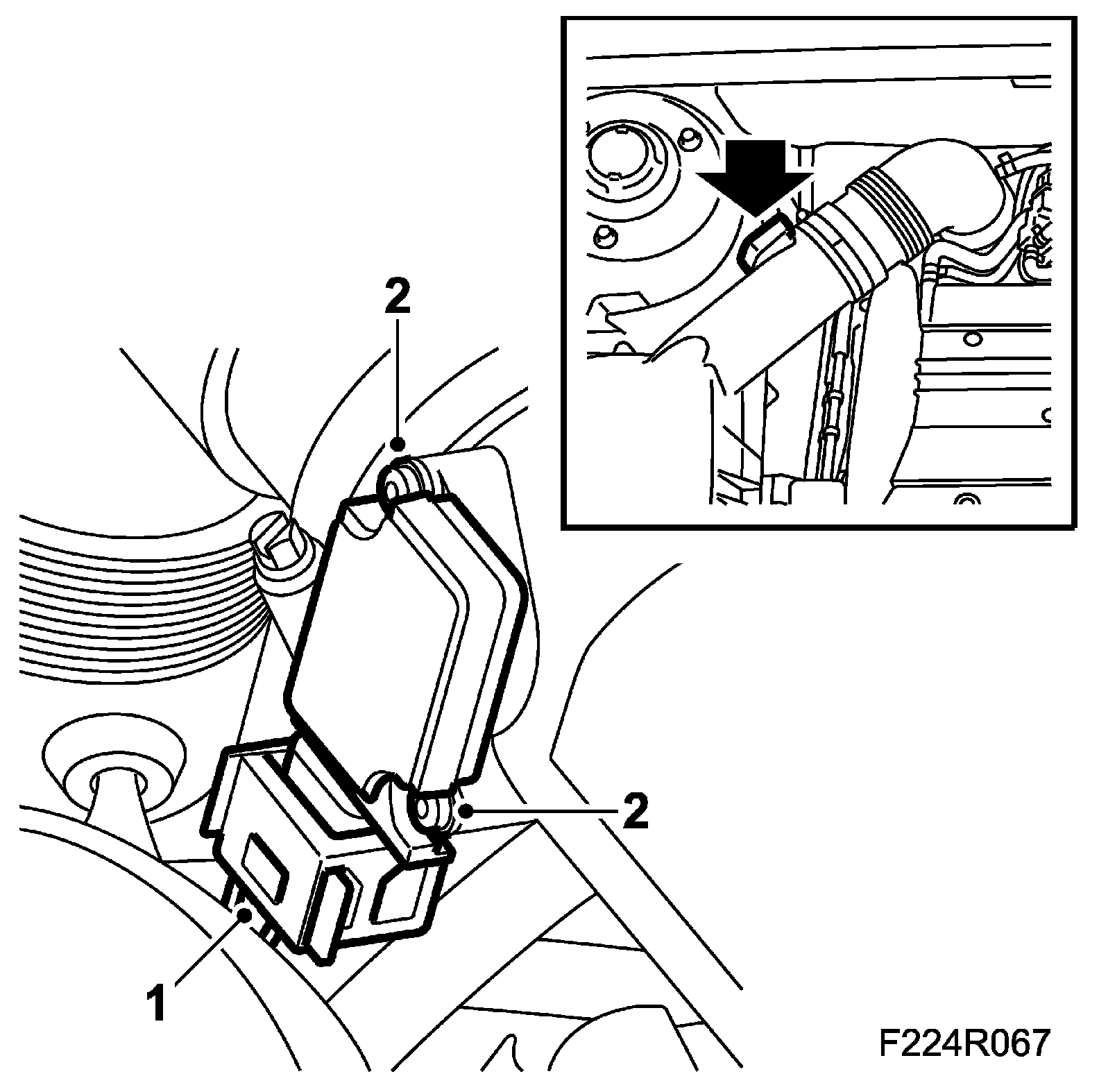

To remove
1. Unplug the connector.





2. Remove the mass air flow sensor.

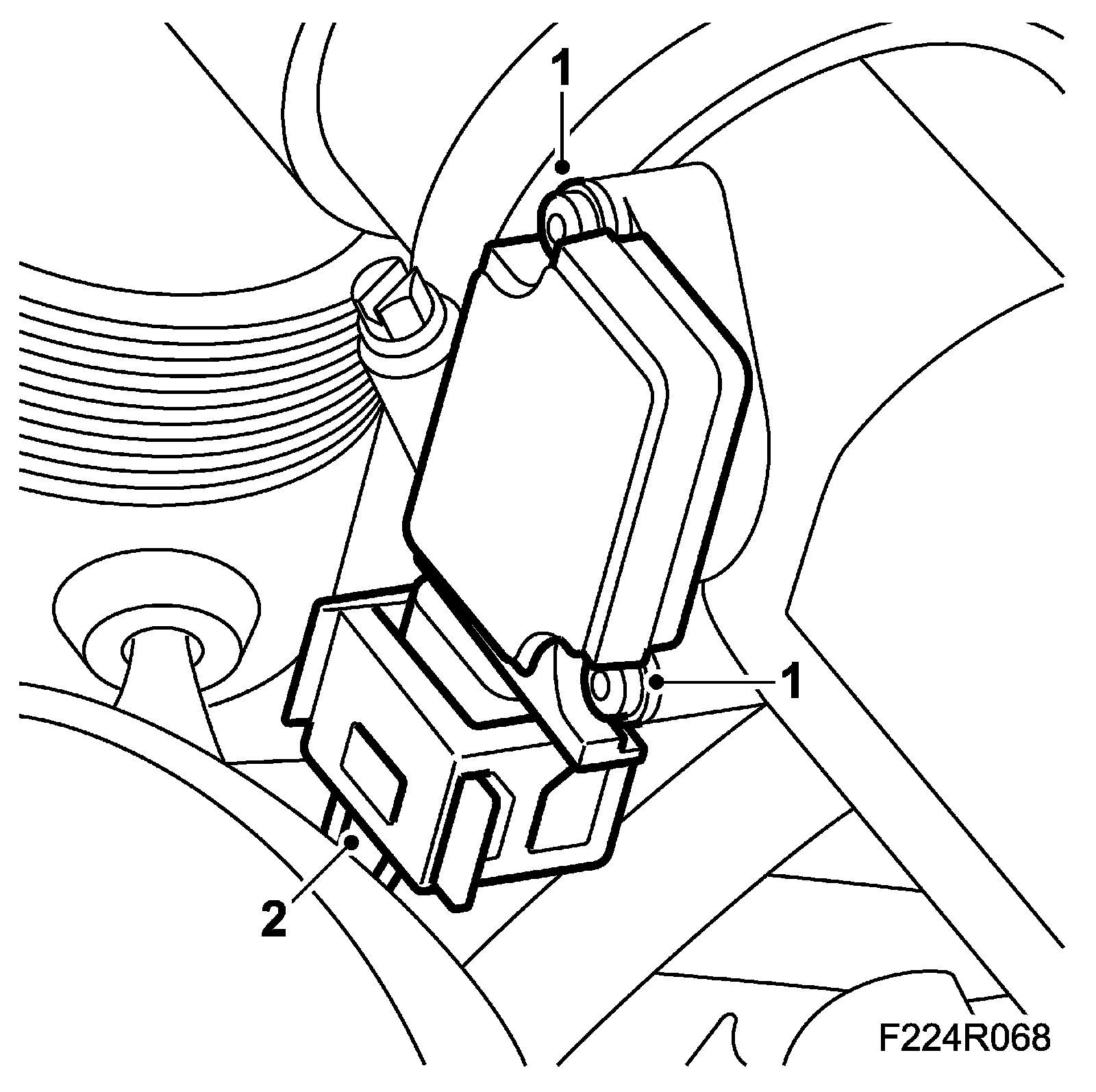

To fit
1. Fit the mass air flow sensor with a new O-ring, sparingly lubricated with Vaseline.





2. Plug in the connector.
