Home >> Saab >> 2007 >> 9-3 (9440) L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ignition Control Module
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

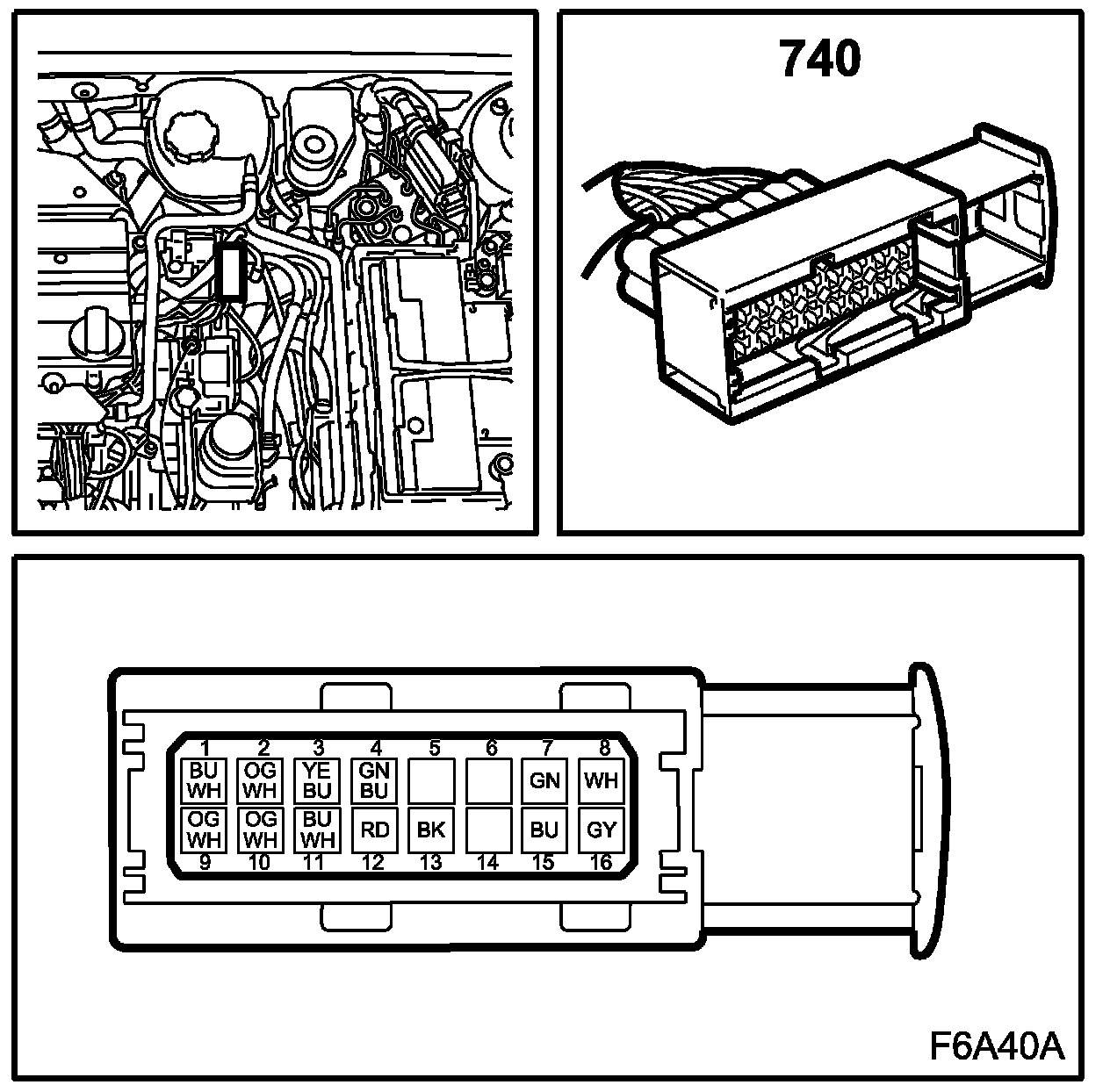

Ignition Control Module



Location: on the engine's short left side by the vacuum pump

Ionization Detection Module (740):
