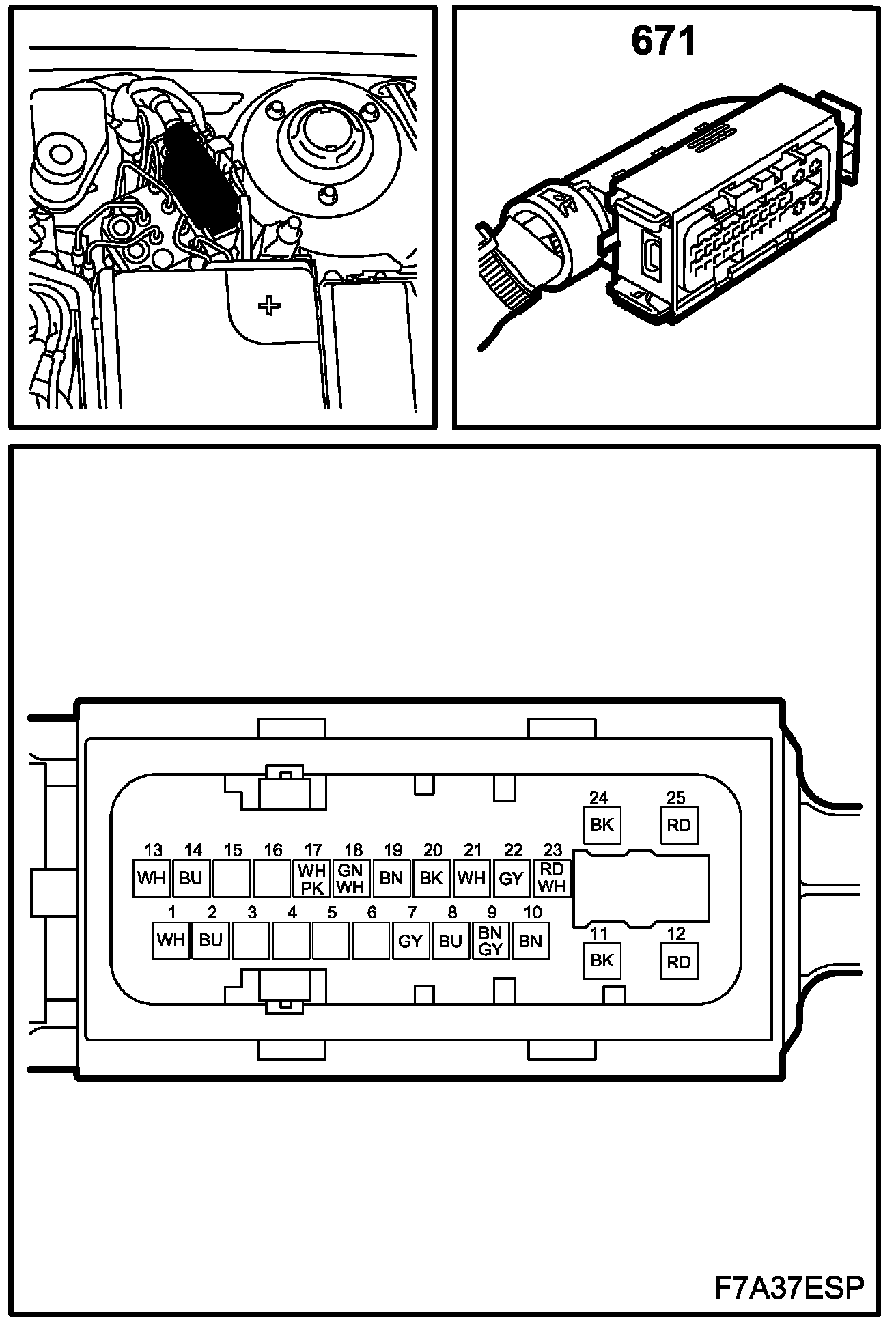

ESP Control Module (671)



Location: Integrated in hydraulic unit behind electrical center 342 in engine bay


ESP Control Module (671):
