Body Control System Schematics

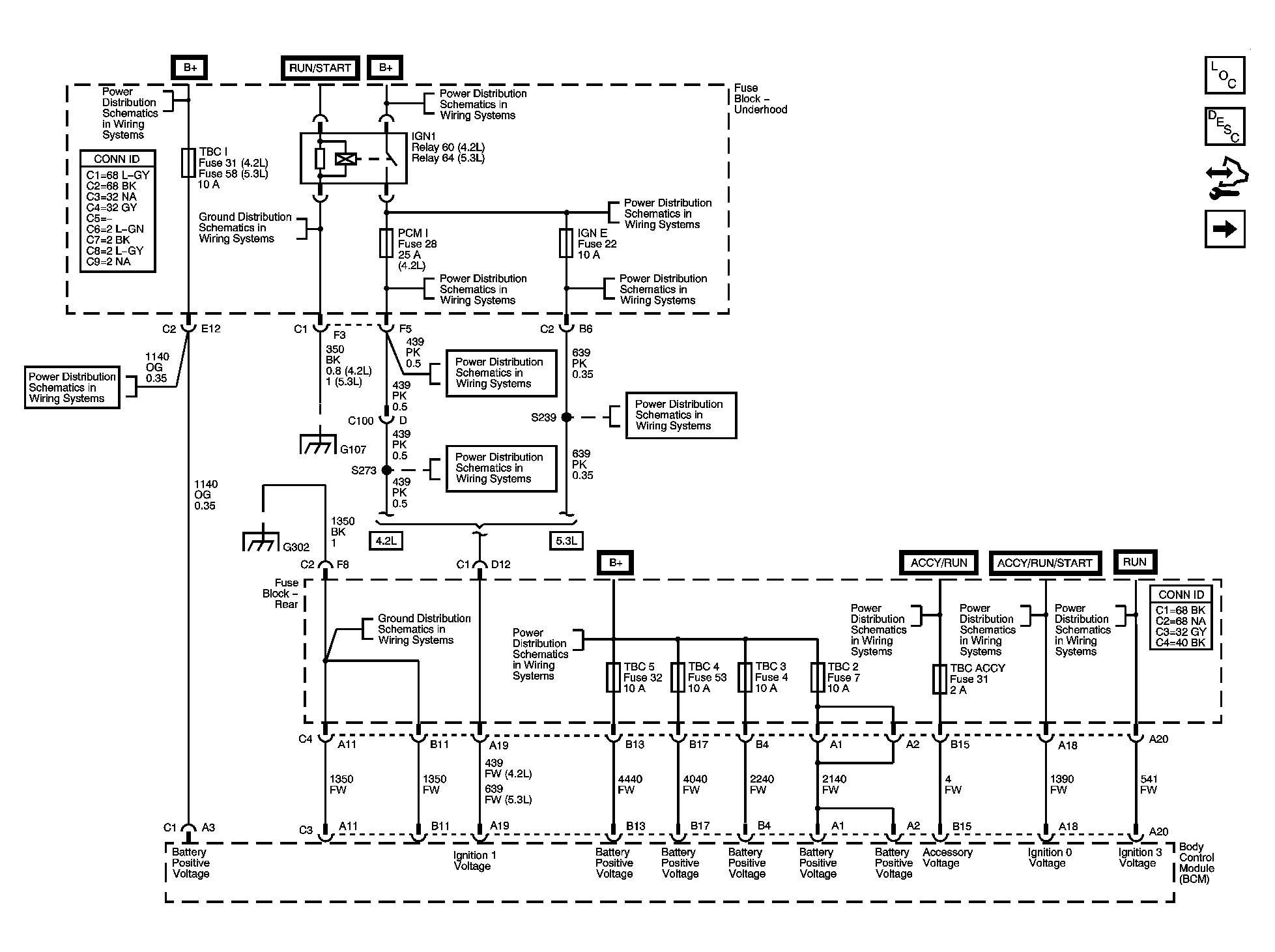

Fig 1: Module Power and Ground Wiring Diagram

Courtesy of GENERAL MOTORS CORP.

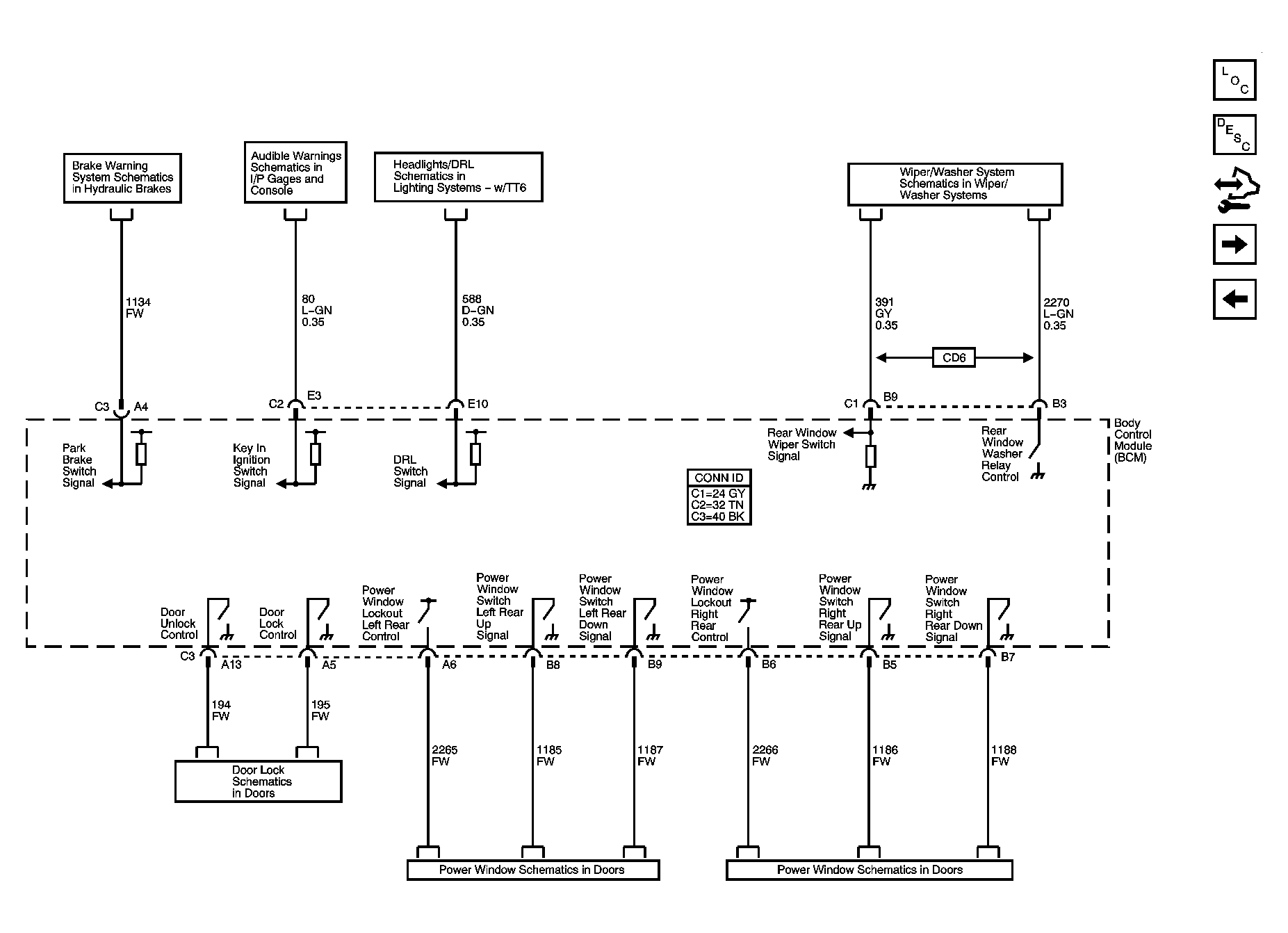

Fig 2: Controlled/Monitored Subsystem References - 1 of 3

Courtesy of GENERAL MOTORS CORP.

Fig 3: Controlled/Monitored Subsystem References - 2 of 3

Courtesy of GENERAL MOTORS CORP.

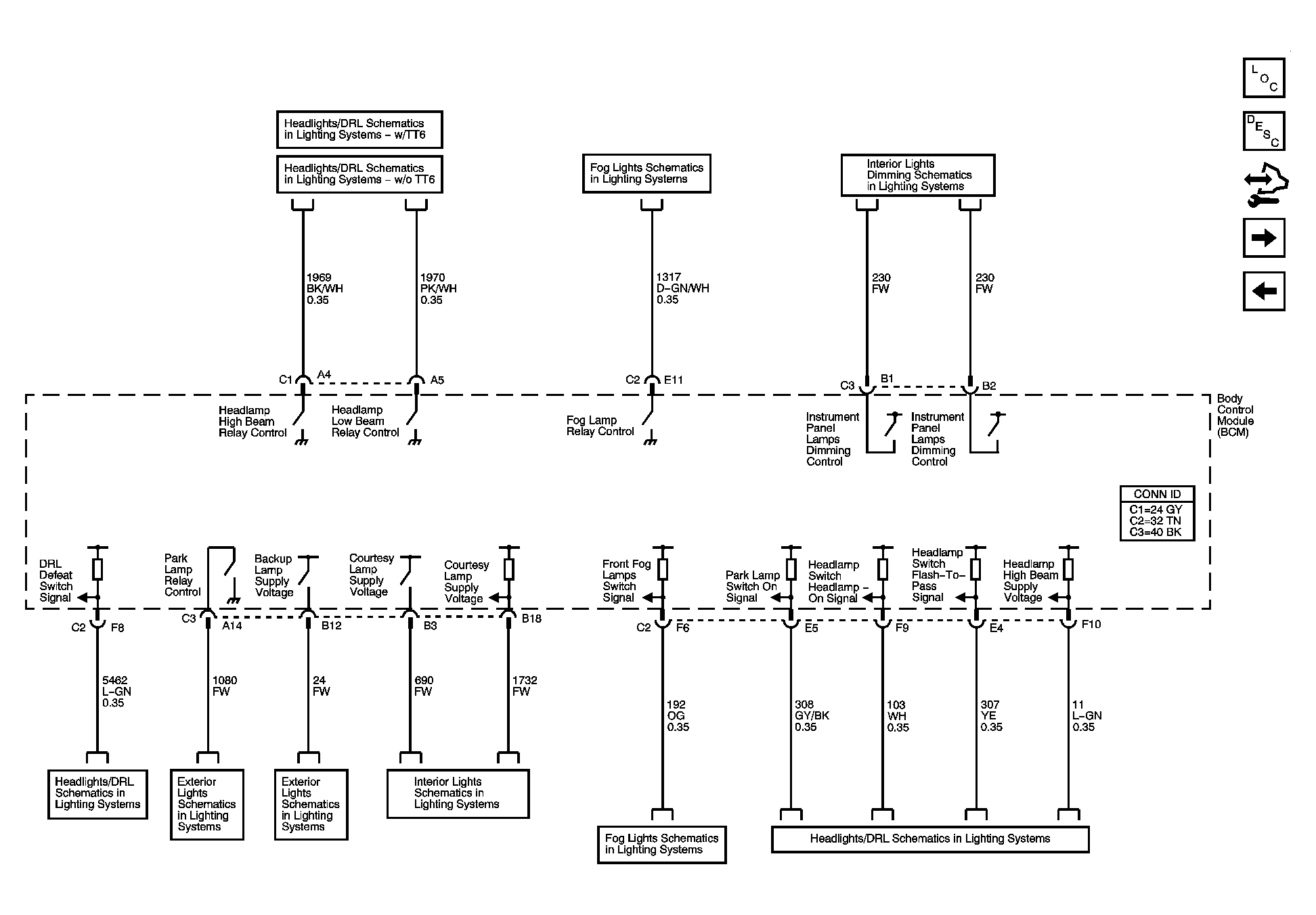

Fig 4: Controlled/Monitored Subsystem References - 3 of 3

Courtesy of GENERAL MOTORS CORP.
