Grounding Point G42: Notes

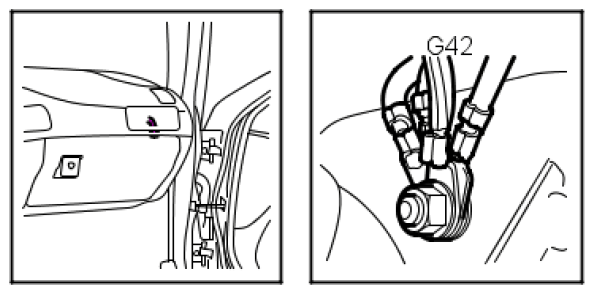

Fig 1: Identifying Grounding Point G42
G05041295Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Point G42 - Circuit Diagram
G05041296Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On right-hand side of knee member.
