Grounding point G3, 4D: Notes

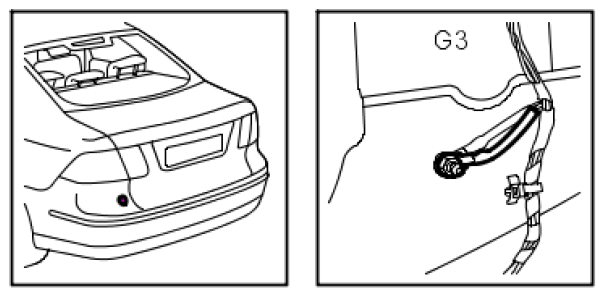

Fig 1: Identifying Grounding Point G3, 4D
G05054543Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In boot below left light cluster

The grounding point is connected with grounding point G29 via the boot electrical centre 701.
