Tightening torques

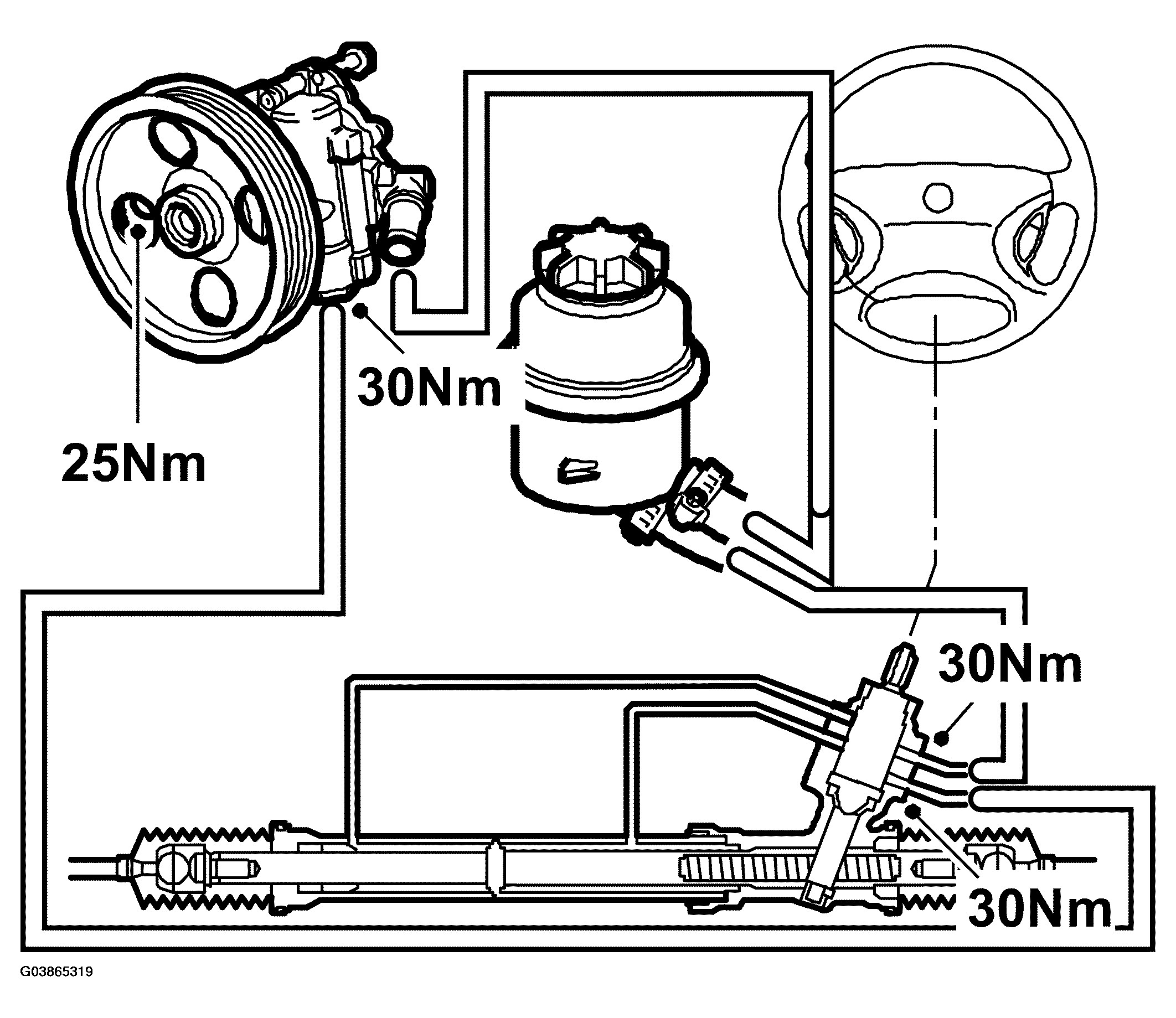

Courtesy of SAAB-SCANIA OF AMERICA, INC. POWER STEERING SYSTEM TIGHTENING TORQUES
| Power steering pump |
Nm (lbf ft) |
25 (20) |
| Delivery pipe, power steering pump |
Nm (lbf ft) |
30 (25) |
| Delivery pipe, valve body |
Nm (lbf ft) |
30 (25) |
| Return pipe, valve body |
Nm (lbf ft) |
30 (25) |
