Fuel level sensor

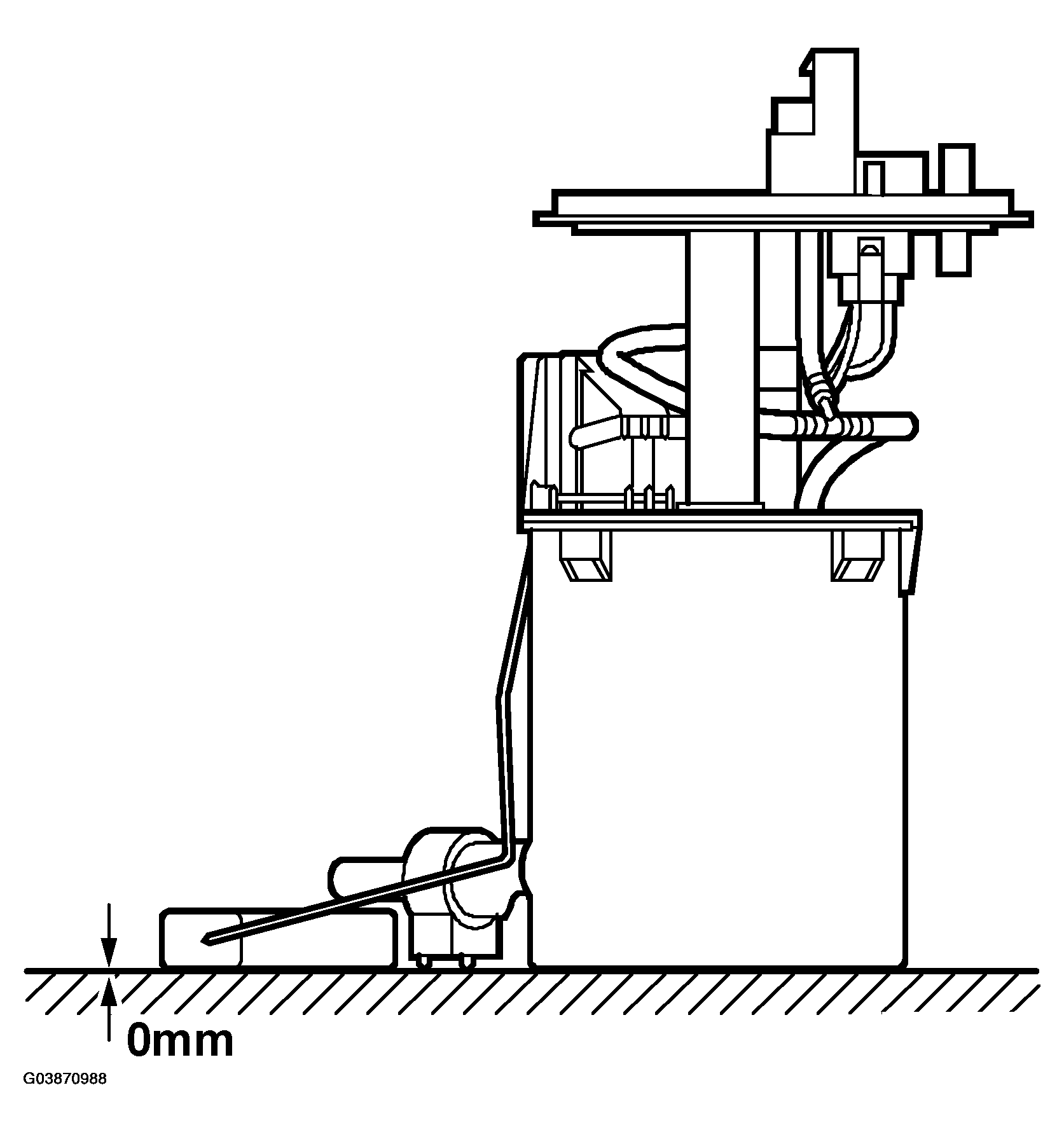

Fig 1: View Of Fuel Level Sensor
G03870988Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL LEVEL SENSOR TECHNICAL DATA

Resistance, empty tank Ohms 50+/-1.5
Resistance, full tank Ohms 425+/-6.5
