Main components, front wipers

WARNING: This page is about a different car, the 2004 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

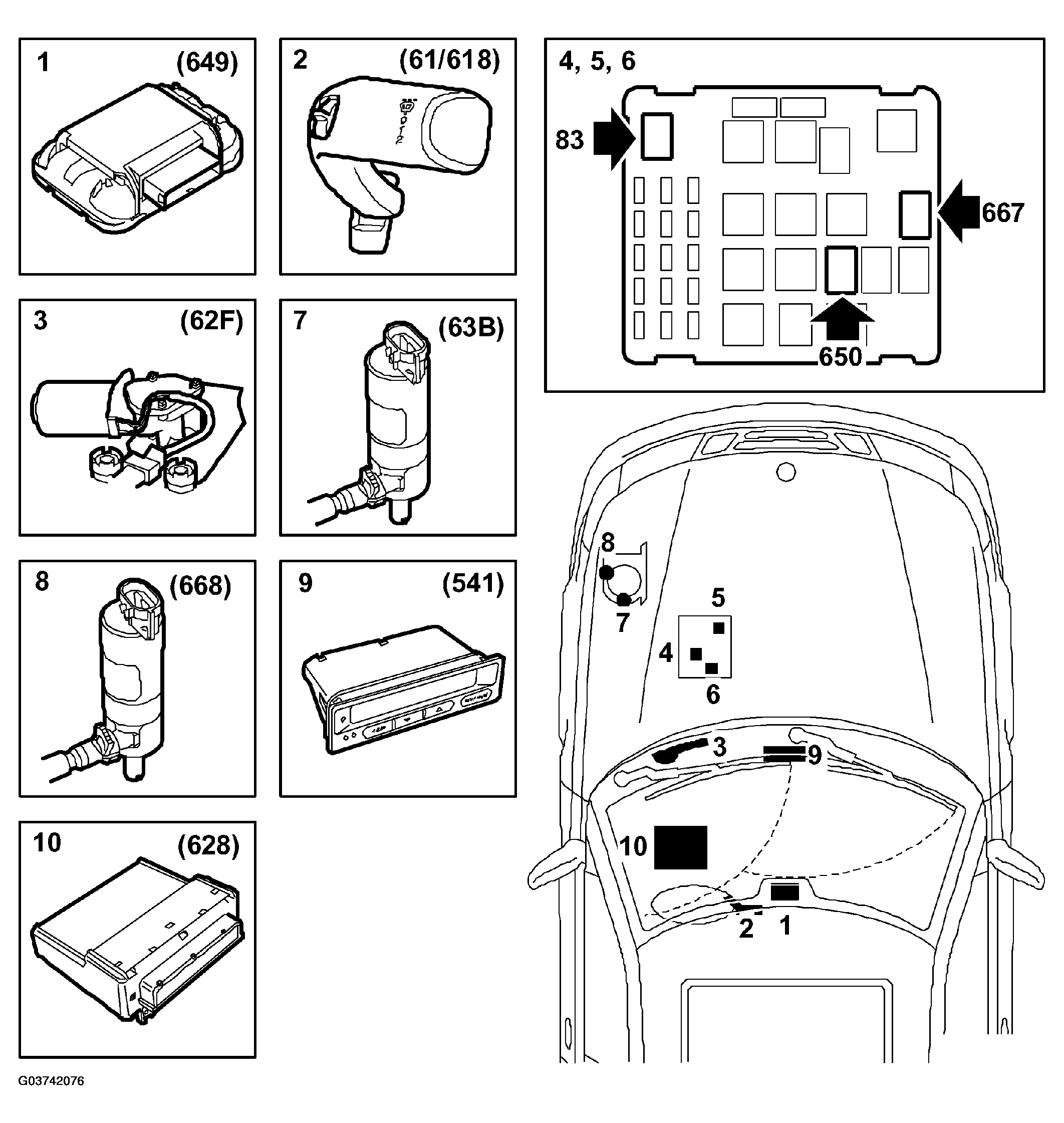

Fig 1: Identifying Main Components, Front Wipers And Location
G03742076Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Rain sensor (649)
  2. Windscreen wiper switch (61, 618)
  3. Windscreen wiper motor (62F)
  4. Rain sensor relay (650)
  5. Relay, intermittent wiper (83)
  6. Relay, headlamp washer fluid pump (667)
  7. Washer fluid pump, windscreen (63b)
  8. Washer fluid pump, headlamps (668)
  9. SID (541)
  10. DICE (628)
