To remove

  1. Unplug the oxygen sensor and carefully lower the cable.

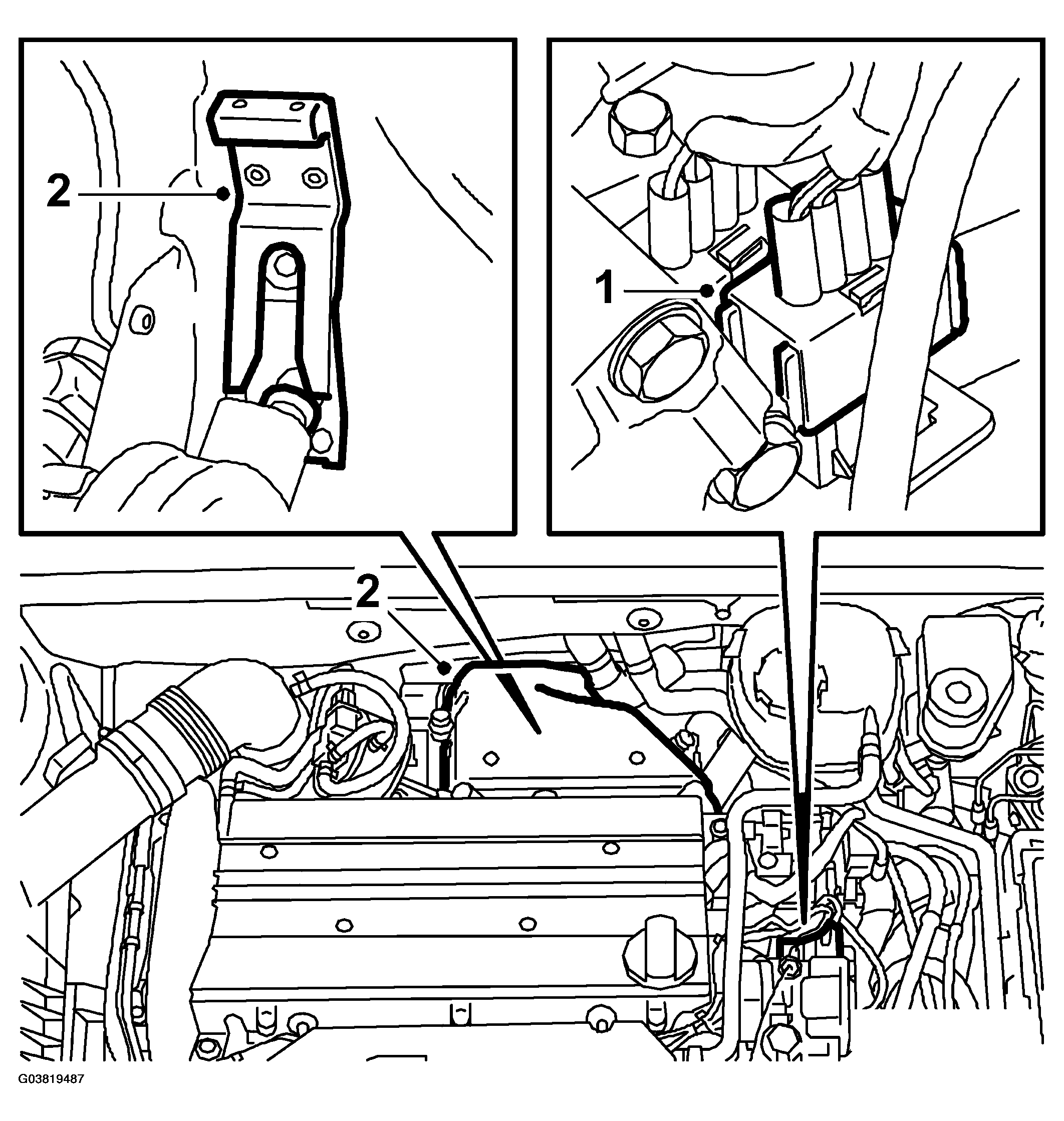

    Fig 1: Illustration For Step - 1-2
    G03819487Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the heat shield over the turbocharger (note the clip underneath the heat shield, see Fig 1 .)
  3. Remove the oxygen sensor.

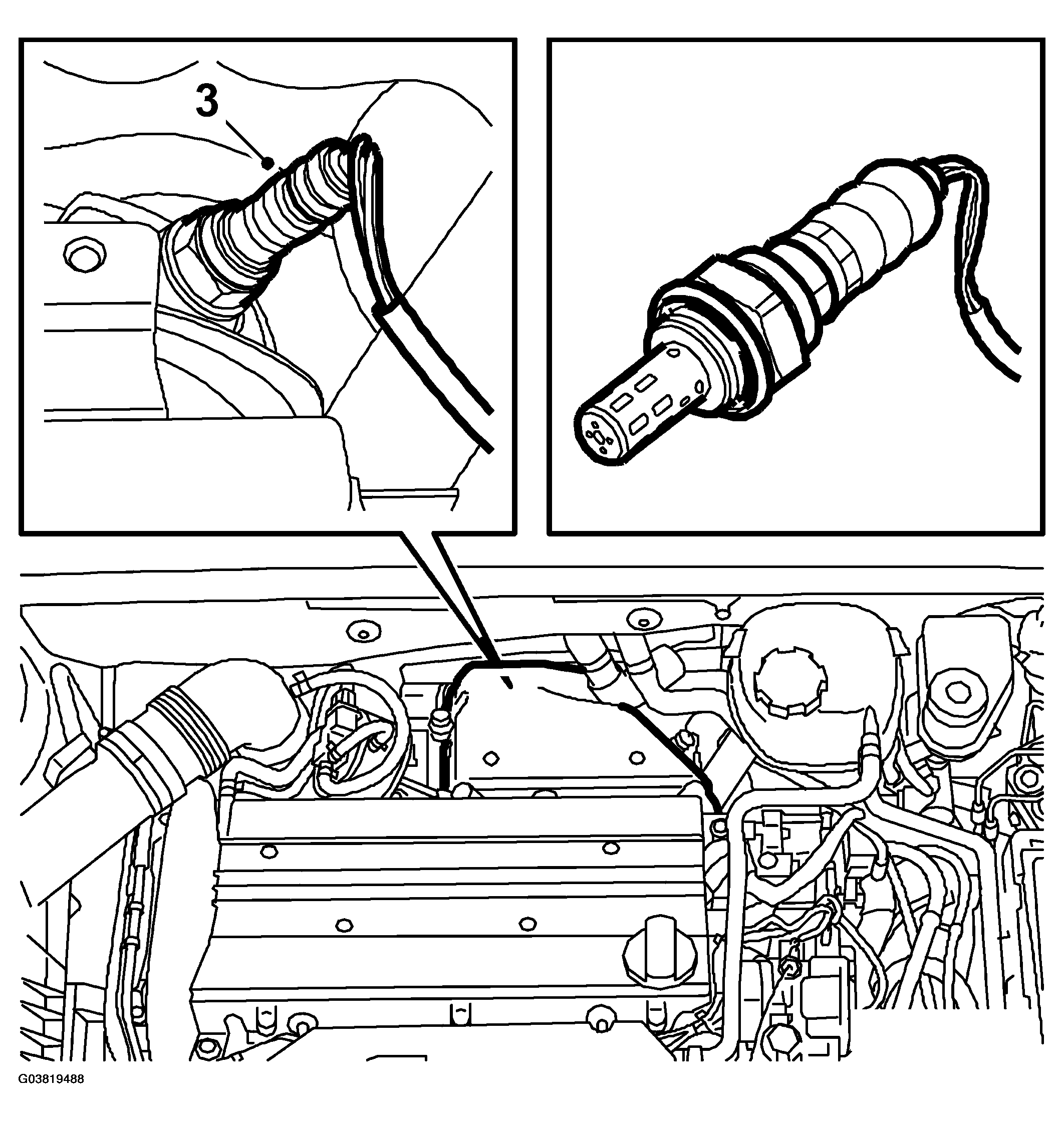

    Fig 2: Removing Oxygen Sensor
    G03819488Courtesy of SAAB-SCANIA OF AMERICA, INC.
