TRIONIC T8 Fuel Control System
>>
Adjustment / Replacement
>>
Spark plug (157)
>>
To remove
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
To remove

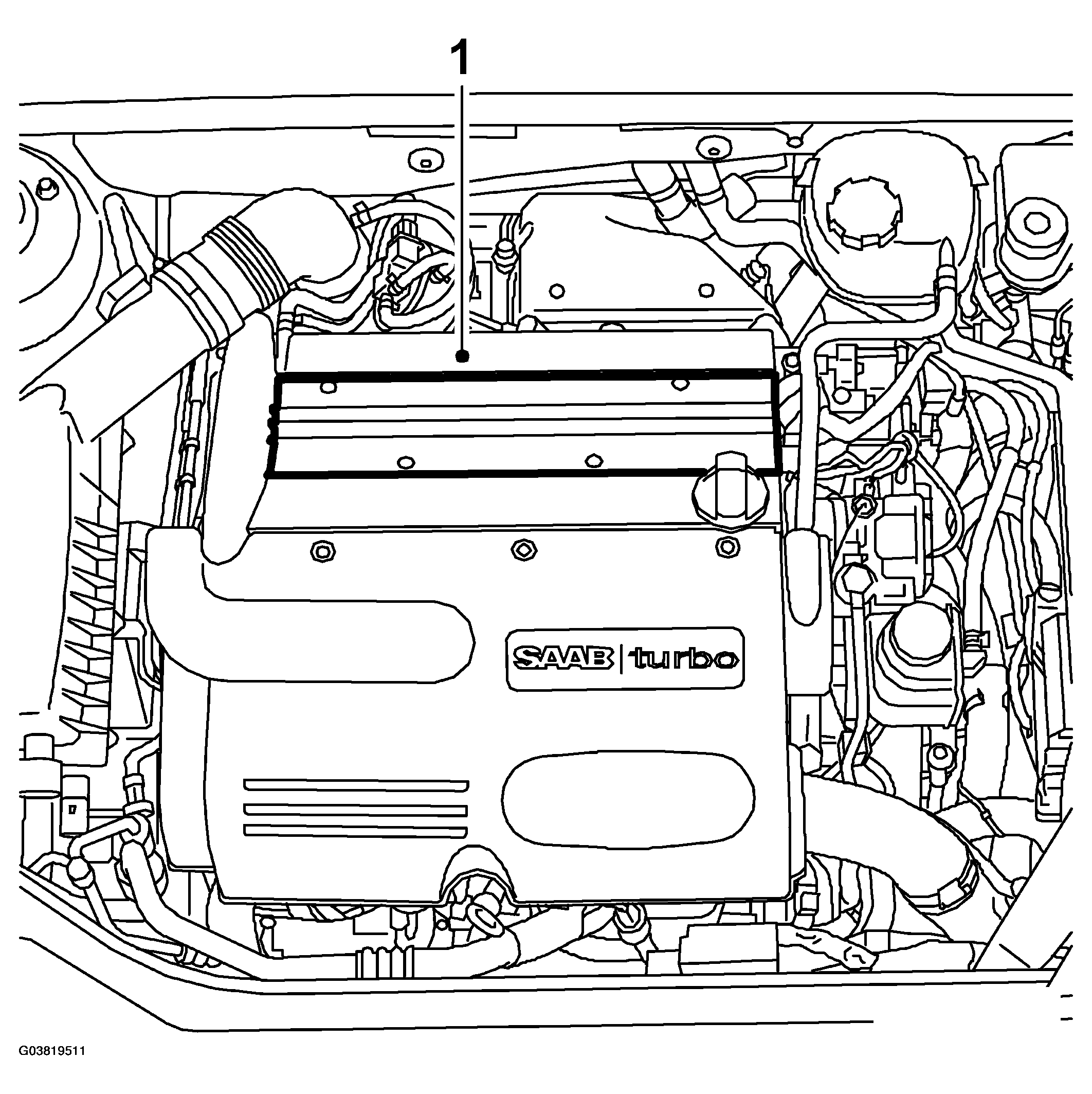

Remove the cover over the ignition coils.
Fig 1: Removing Cover Over Ignition Coils
Courtesy of SAAB-SCANIA OF AMERICA, INC.

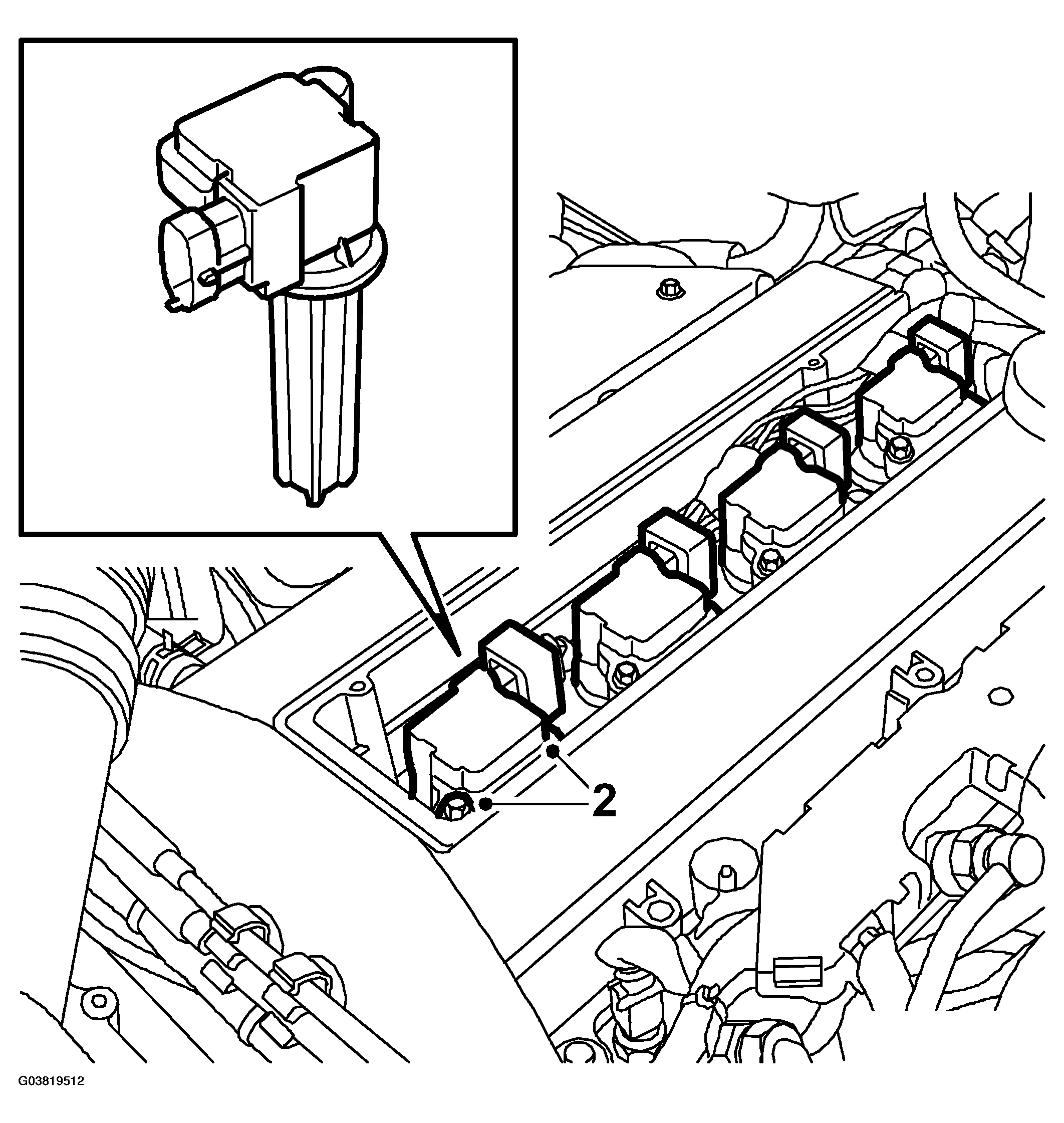

Remove the bolts, lift up each ignition coil and move aside. Start with the ignition coil for cylinder 1.
Fig 2: Removing Bolts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the spark plugs, socket 8394785.
