To remove

  1. Raise the car.
  2. Cut the front pipe between the flexipipe and the silencer at 87 mm (see illustration). Cut the pipe at right-angles using 83 95 667 PIPE CUTTER/EXHAUST SYSTEM  .
  3. Remove the front and rear silencers.

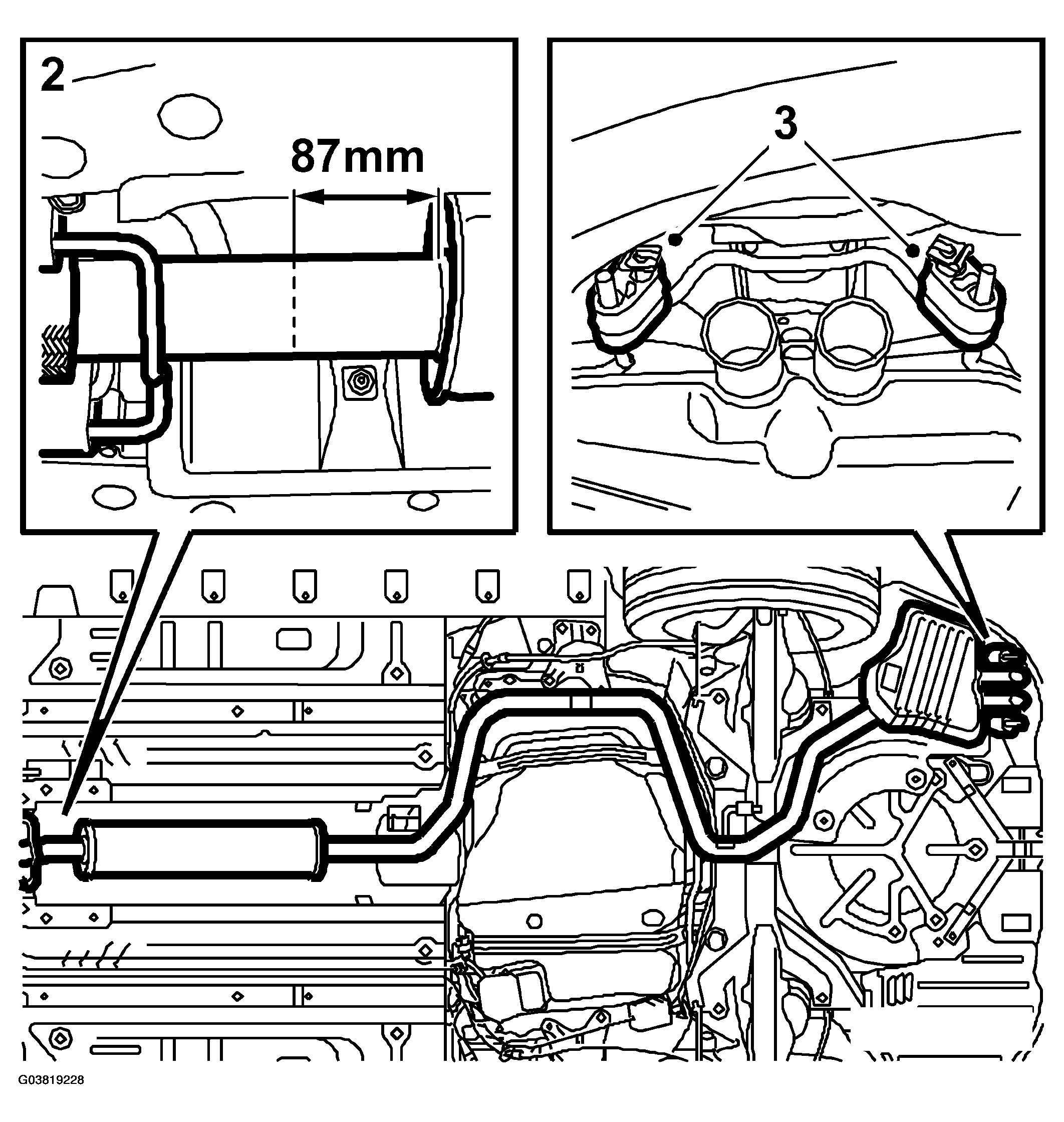

    Fig 1: Illustration For Step (2 And 3)
    G03819228Courtesy of SAAB-SCANIA OF AMERICA, INC.
