Control module, seat (357k)

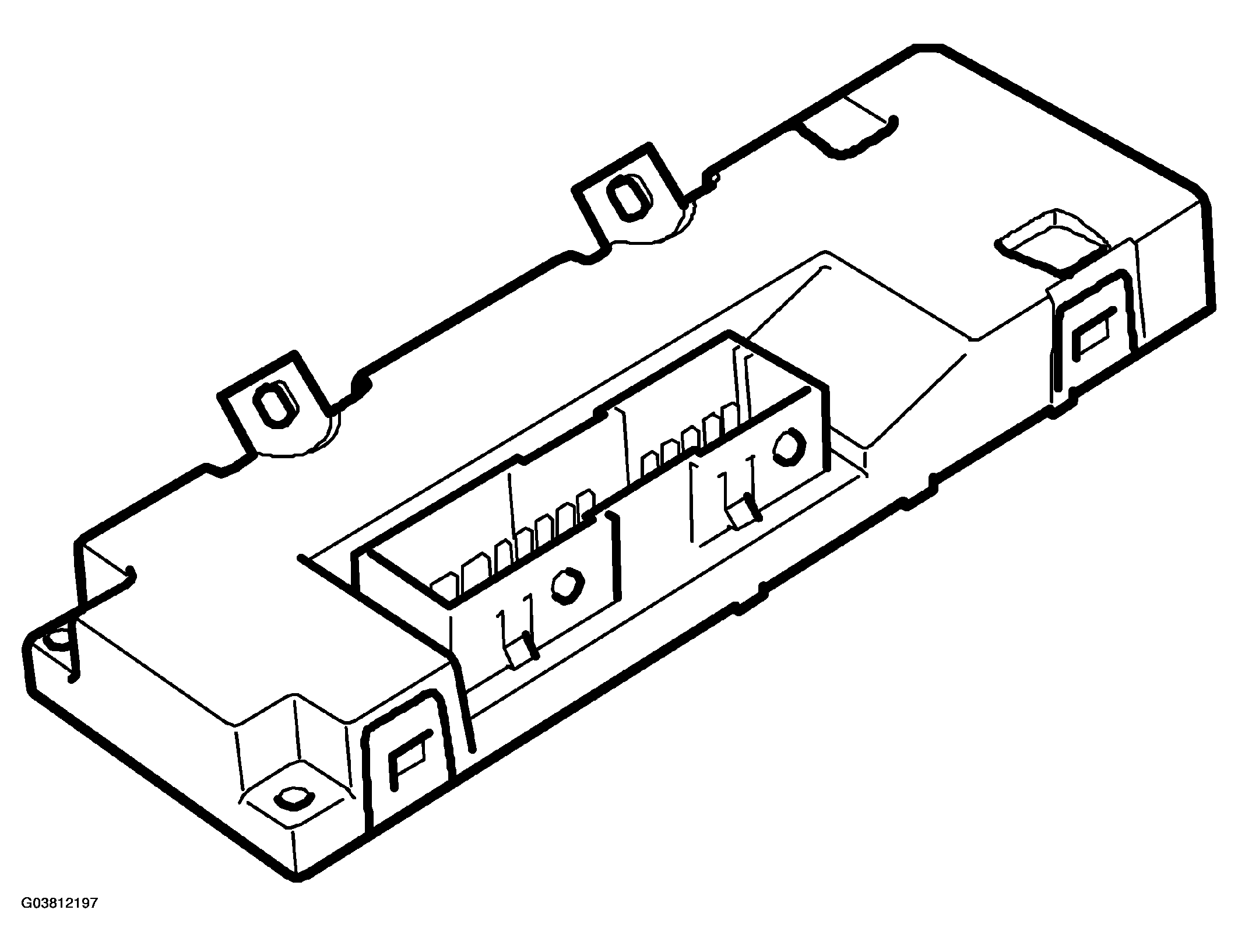

Fig 1: Identifying Control Module Seat (357K)
G03812197Courtesy of SAAB-SCANIA OF AMERICA, INC.
SEAT CONTROL MODULE SPECIFICATION

Power supply +30 59 pin
Ground 58 pin
