Main components: CV

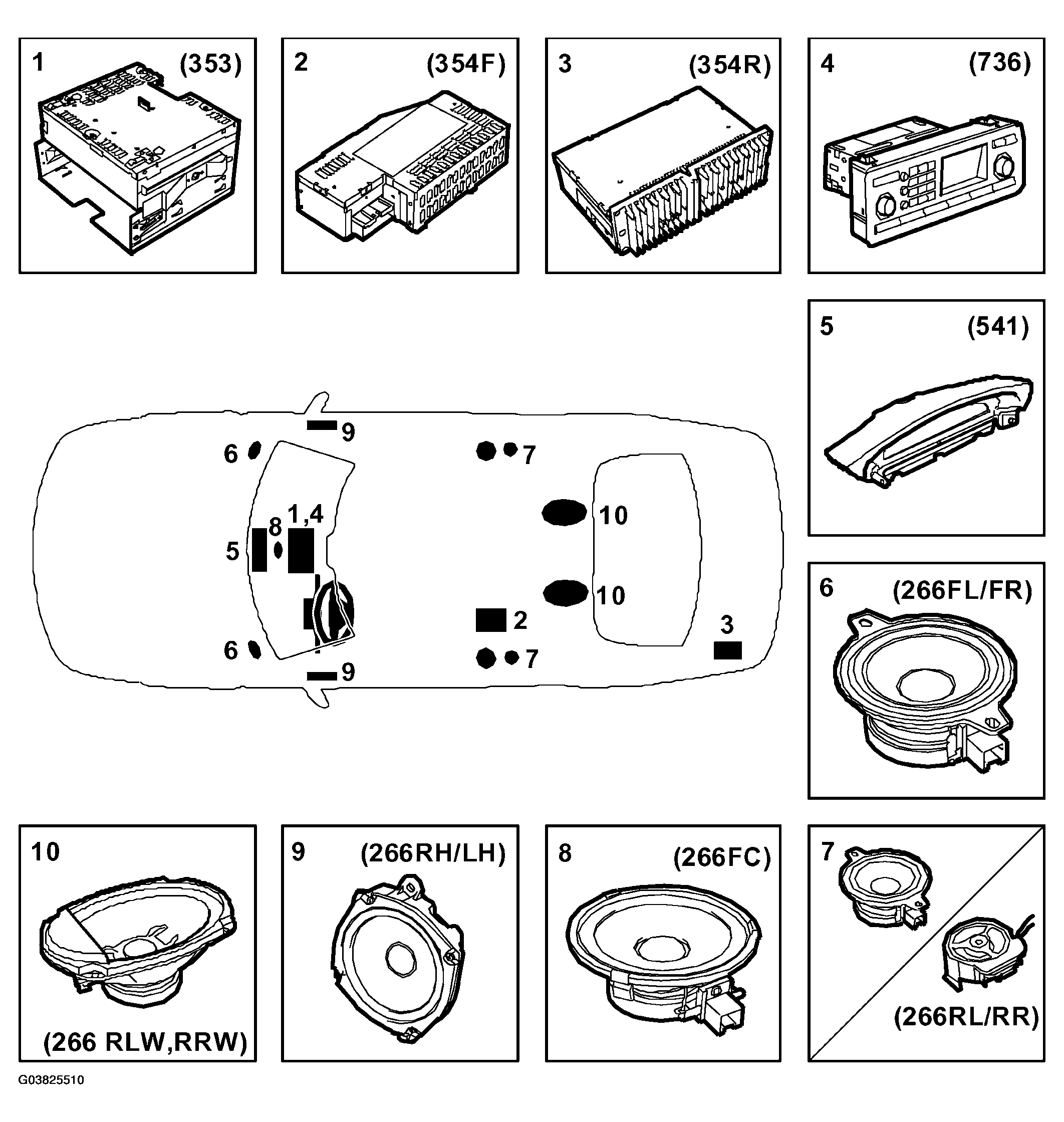

Fig 1: Identifying Rear Speaker Connector Terminals - CV (RH)
G03825510Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Identifying Rear Woofer Connector Terminals - CV (LH)
G03825511Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Entertainment Head Unit, EHU (353)
  2. Audio System Amplifier, front speakers, AMP1 (354F)
  3. Audio System Amplifier, rear speakers, AMP2 (354R)
  4. Control panel, infotainment, ICM (736)
  5. SID (541)
  6. Speakers, dashboard, left/right (266 FL/FR)
  7. Speakers, rear, left/right (266 RL/RR)
  8. Speaker, dashboard, centre (266 FC)
  9. Speakers, front door, left/right (266 LH/RH)
  10. Speakers, woofer, rear, left/right (266 RLW/RRW)
  11. Radio antenna (364)
  12. Bypass unit, antenna amplifier (624a)
  13. Antenna amplifier, radio (624b), (integrated in antenna base)
  14. Steering wheel controls (633)
  15. Column Integration Module (703)
  16. Connection, AUX (771)
