Main components: 4D

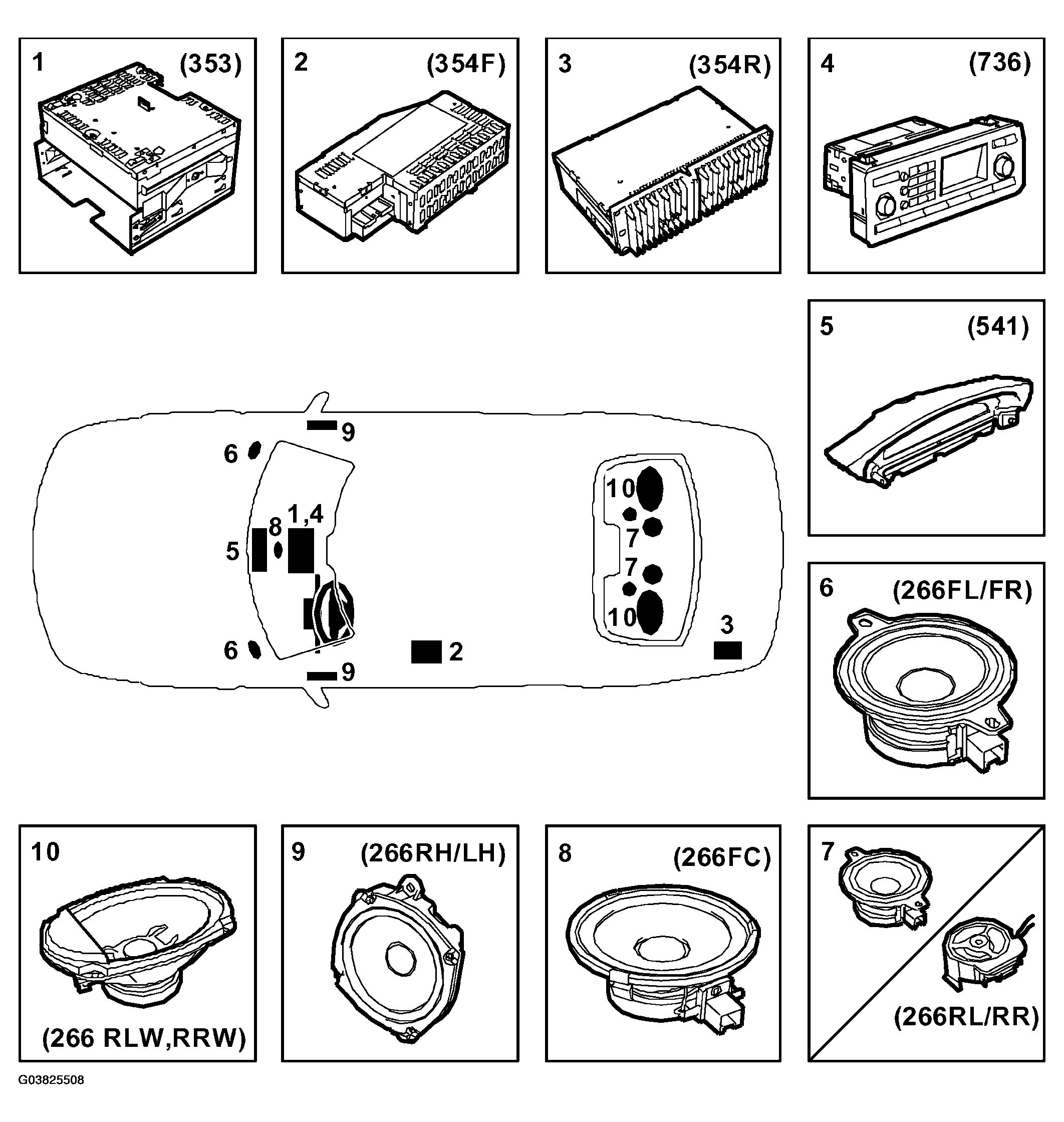

Fig 1: Identifying Rear Speaker Connector Terminals - 4D (RH)
G03825508Courtesy of SAAB-SCANIA OF AMERICA, INC.
Fig 2: Identifying Rear Woofer Connector Terminals - 4D (LH)
G03825509Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Entertainment Head Unit, EHU (353)
  2. Audio System Amplifier, front speakers, AMP1 (354F)
  3. Audio System Amplifier, rear speakers, AMP2 (354R)
  4. Control panel, infotainment, ICM (736)
  5. SID (541)
  6. Speakers, dashboard, left/right (266 FL/FR)
  7. Speakers, rear, left/right (266 RL/RR)
  8. Speaker, dashboard, centre (266 FC)
  9. Speakers, front door, left/right (266 LH/RH)
  10. Speakers, woofer, rear, left/right (266 RLW/RRW)
  11. Antenna (625)
  12. Antenna amplifier, radio (624)
  13. Antenna filter (644)
  14. Steering wheel controls (633)
  15. Column Integration Module (703)
  16. Connection, AUX (771)
