Infotainment control module

The control panel on the infotainment control module is used to select the functions of the infotainment system. There are three control modules: 1, 2 and 3. The type of control module depends on the equipment selected by the customer, for example:

• ICM 1: most basic sound system and provisions for mobile phone.

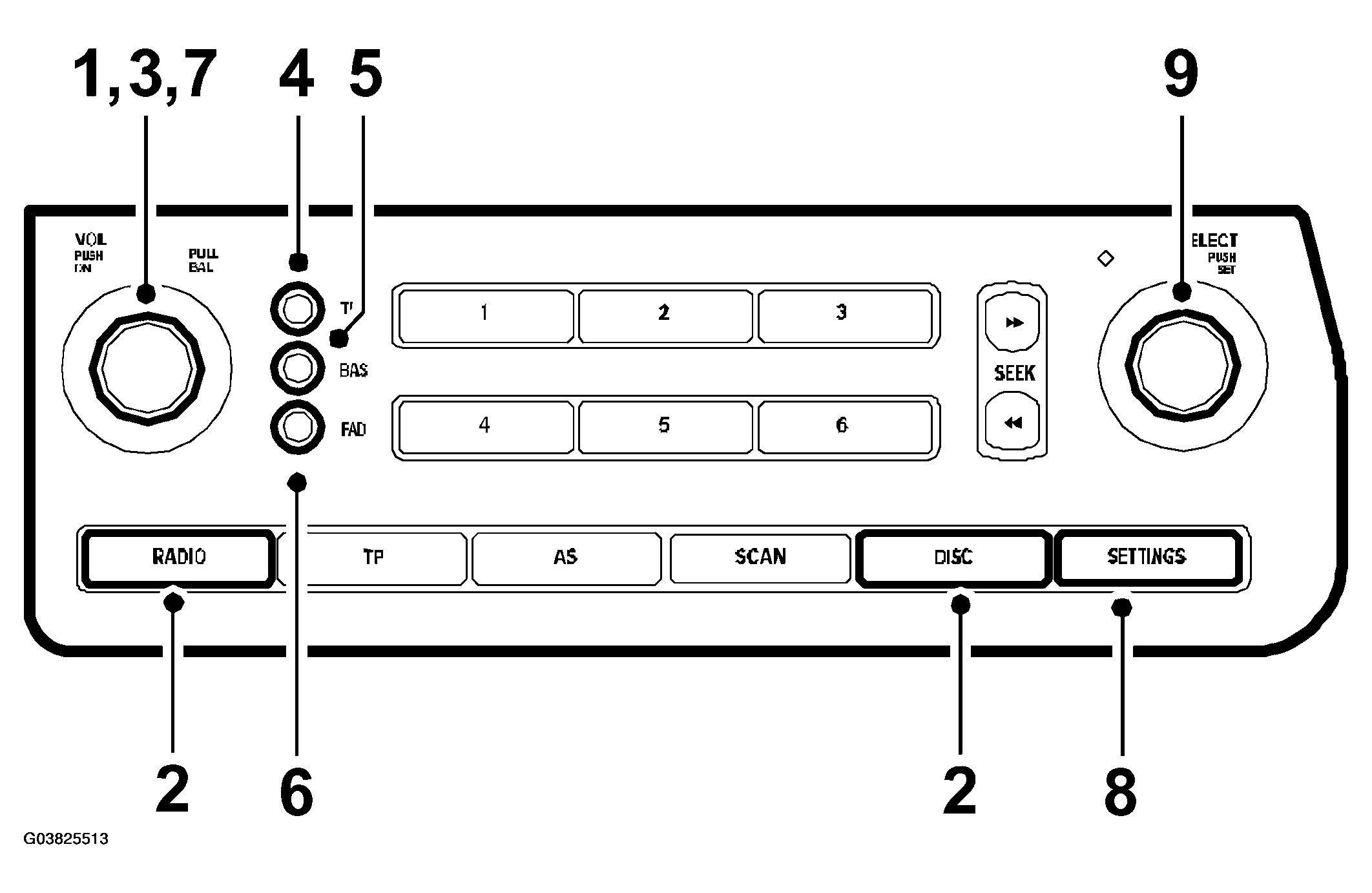

  Fig 1: Identifying Control Panel On Infotainment Control Module (ICM 1)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Audio system ON/OFF.
  2. Selection of audio system source.
  3. Volume
  4. Treble
  5. Bass
  6. Fader
  7. Balance
  8. Navigation in lists/menus under "Settings" in SID.
  9. Activation of "Settings" in SID.
• ICM 2: higher level sound system and integrated phone.

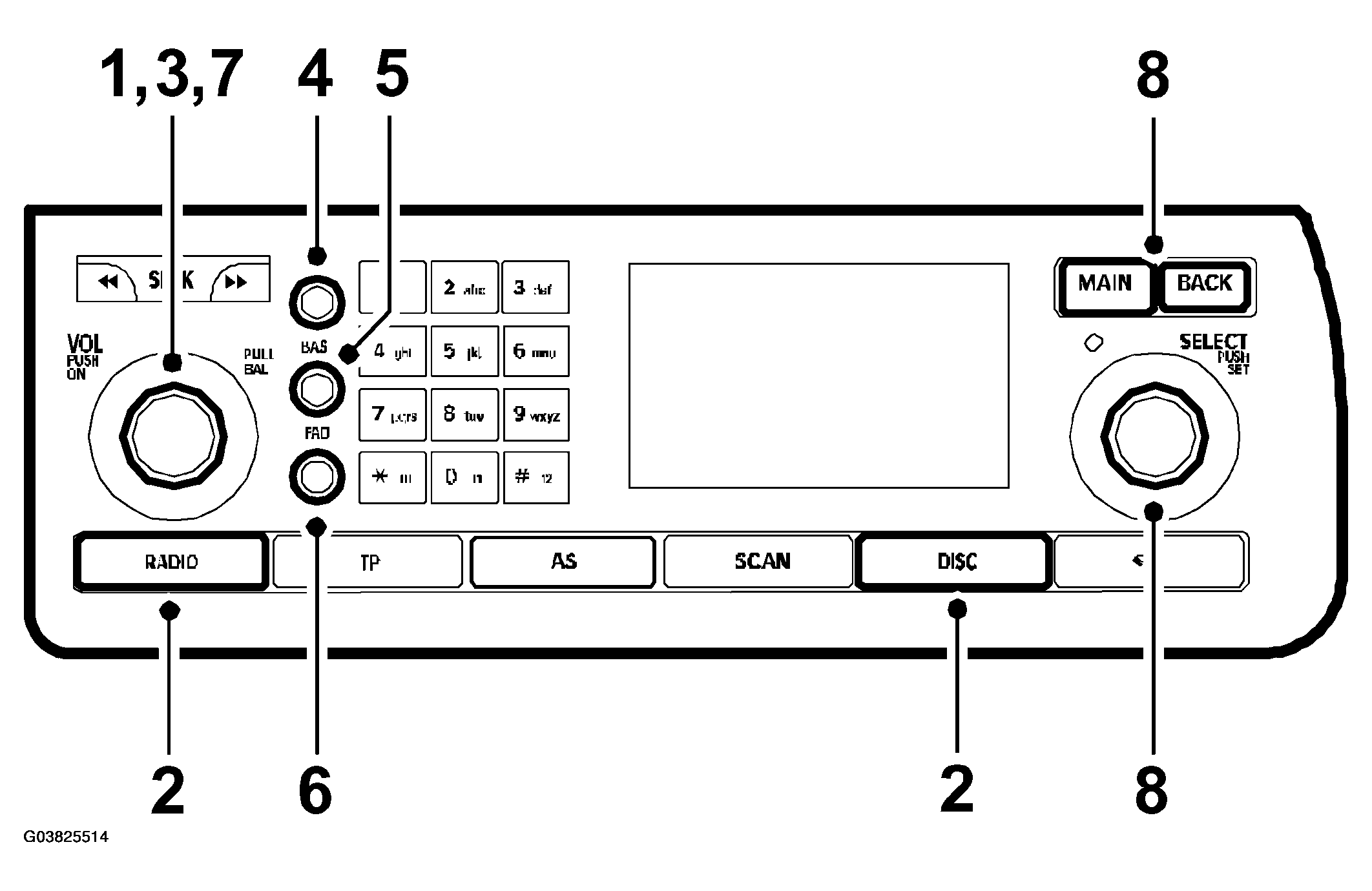

  Fig 2: Identifying Control Panel On Infotainment Control Module (ICM 2)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Audio system ON/OFF.
  2. Selection of audio system source.
  3. Volume
  4. Treble
  5. Bass
  6. Fader
  7. Balance
  8. Operating the menu display.
• ICM 3: highest level sound system, integrated phone and navigation system.

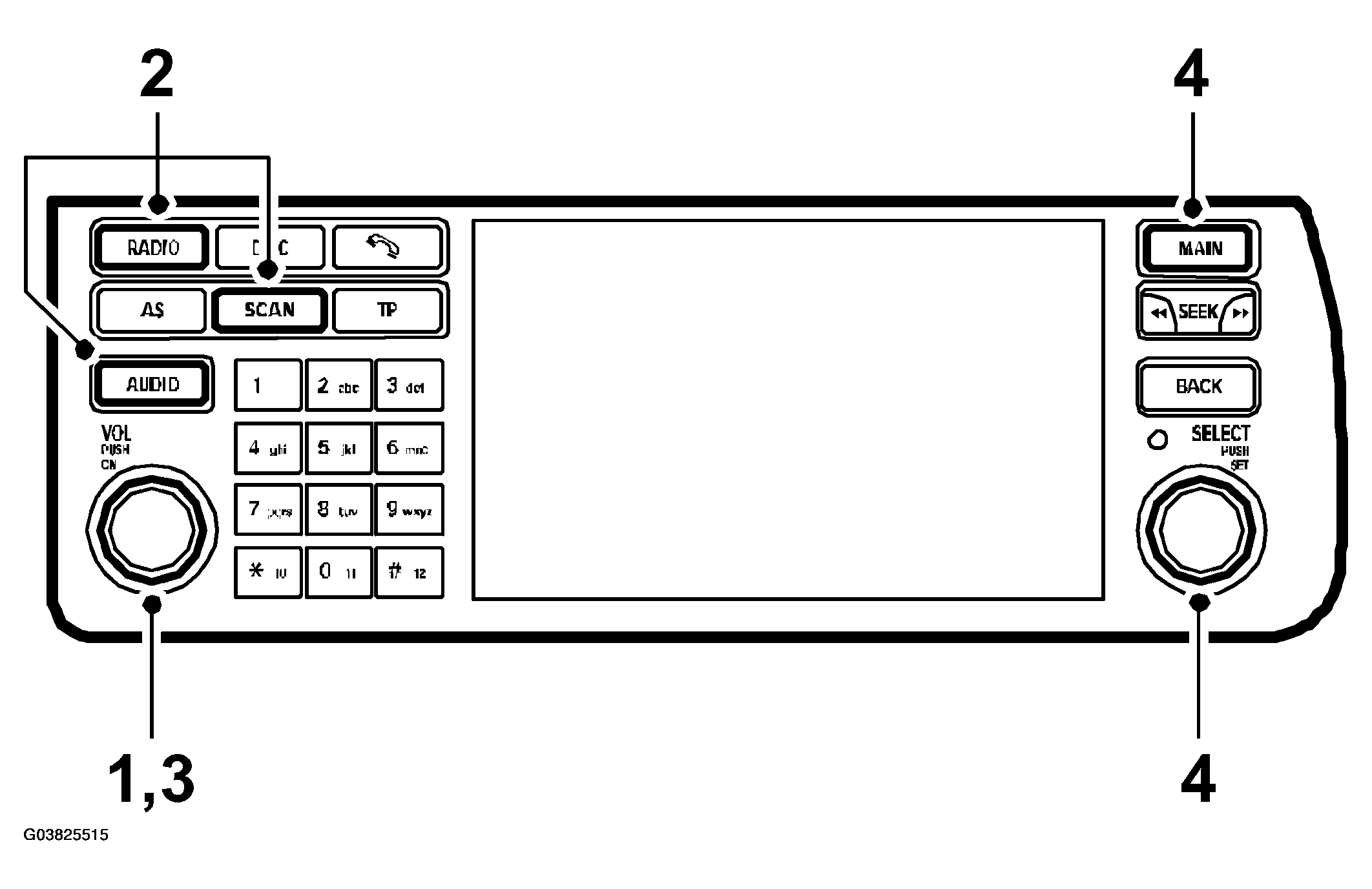

  Fig 3: Identifying Control Panel On Infotainment Control Module (ICM 3)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Audio system ON/OFF.
  2. Selection of audio system source.
  3. Volume
  4. Operating the menu display.

Data is transferred from the ICM to the EHU on the O-bus.
