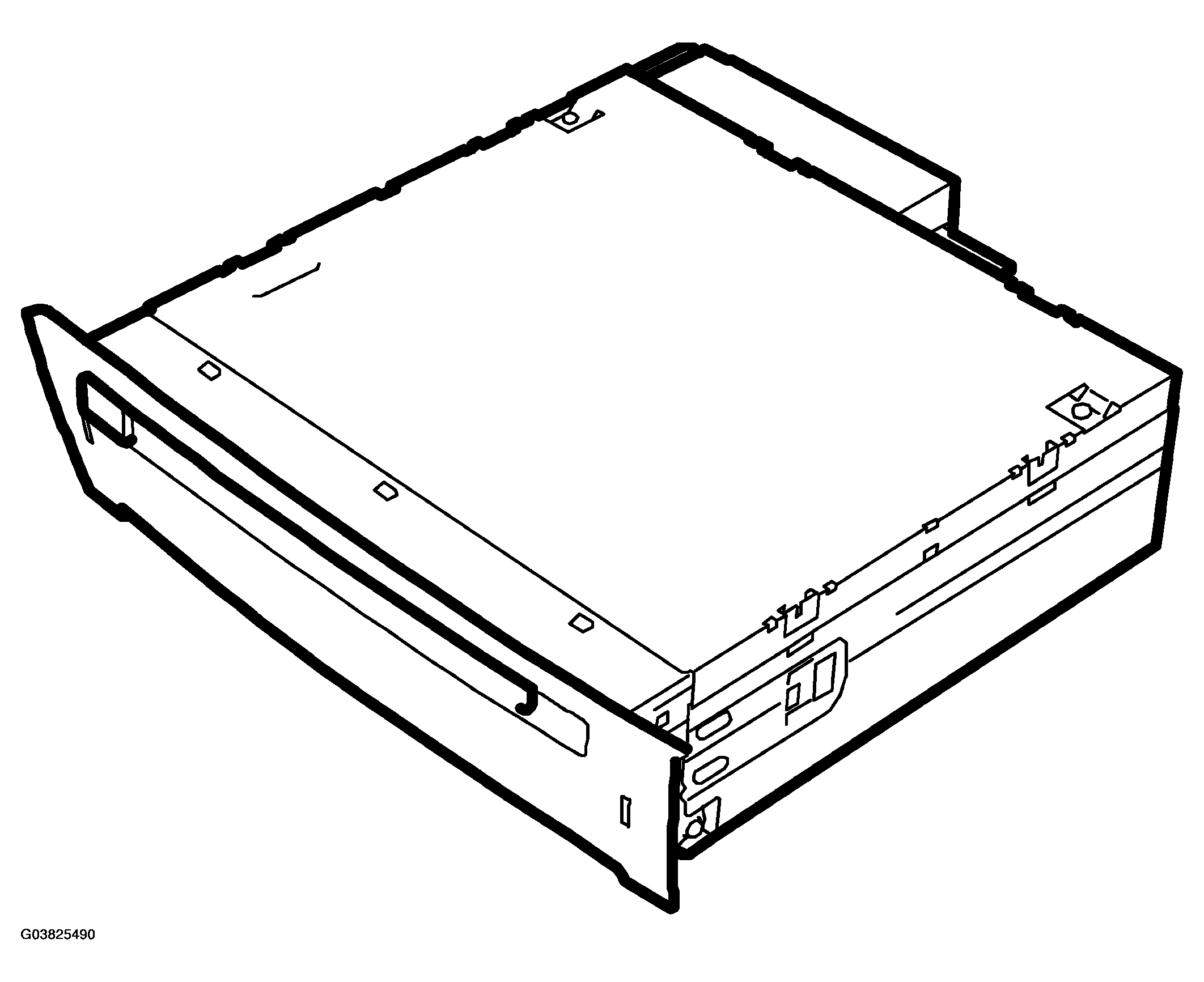

CD player/changer, front
CD PLAYER/CHANGER SPECIFICATION
| Make | Clarion | |
| Number of pins | 4 | |
| Instrument bus, O-BUS (receiver) | O-Bus connection | 1 |
| Power supply +30 | pin No. | 2 |
| Instrument bus, O-BUS (sender) | O-Bus connection | 2 |
| Ground | pin No. | 4 |
| Rest mode power consumption | mA | 0.06 |
| Max. current consumption: | A | 1.5 |
WARNING:
The CD changer is a Class 1 laser product
- The CD changer should only be serviced and repaired by a qualified technician.
- If the casing of the CD changer is damaged, laser radiation can occur with a risk of injury.
