Crimp J42, engine harness, Trionic: Notes

Location:  Approx. 20 mm from branching point crankshaft sensor towards the engine oil pressure switch

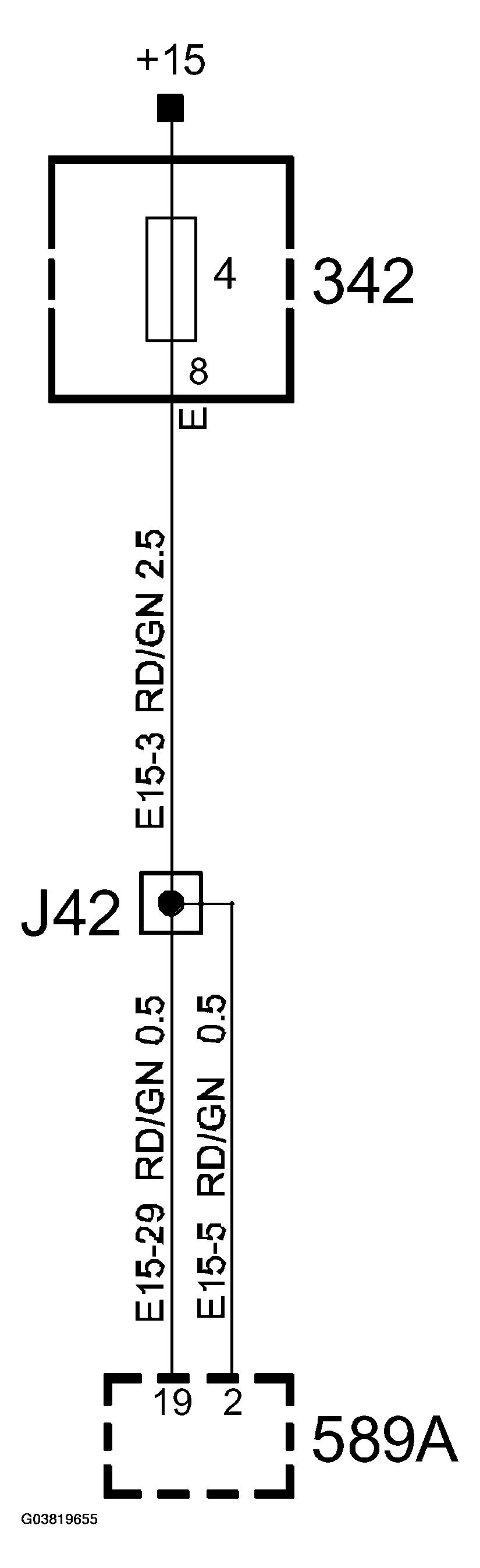

Fig 1: Identifying Engine Harness Trionic - Crimp J42
G03819655Courtesy of SAAB-SCANIA OF AMERICA, INC.
