Opening Cylinder: Installation
Install in the reverse order of removal.
NOTE:
- Before installing the operating cylinder, apply grease (SUNLIGHT 2: Part No. 32005009) to contact point of the release lever and operating cylinder.
- For Saab 9-2X 2.0T Aero, bleed air with the clutch hose installed to the operating cylinder before installing the operating cylinder to vehicle.

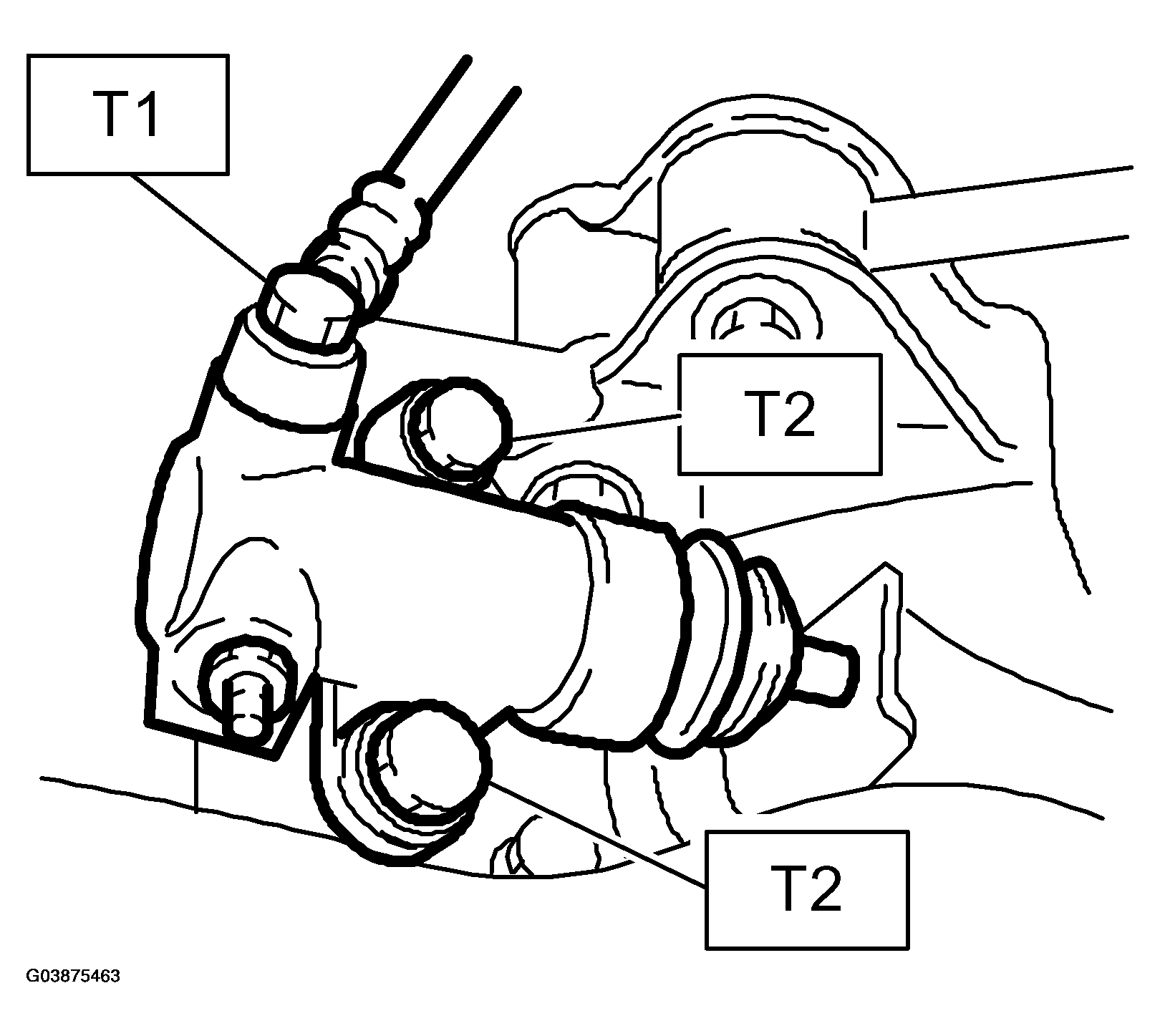

- Saab 9-2X 2.5i Linear
Tightening torque:
T1: 18 Nm (1.8 kgf-m, 13.3 ft-lb)
T2: 37 Nm (3.8 kgf-m, 27.5 ft-lb)

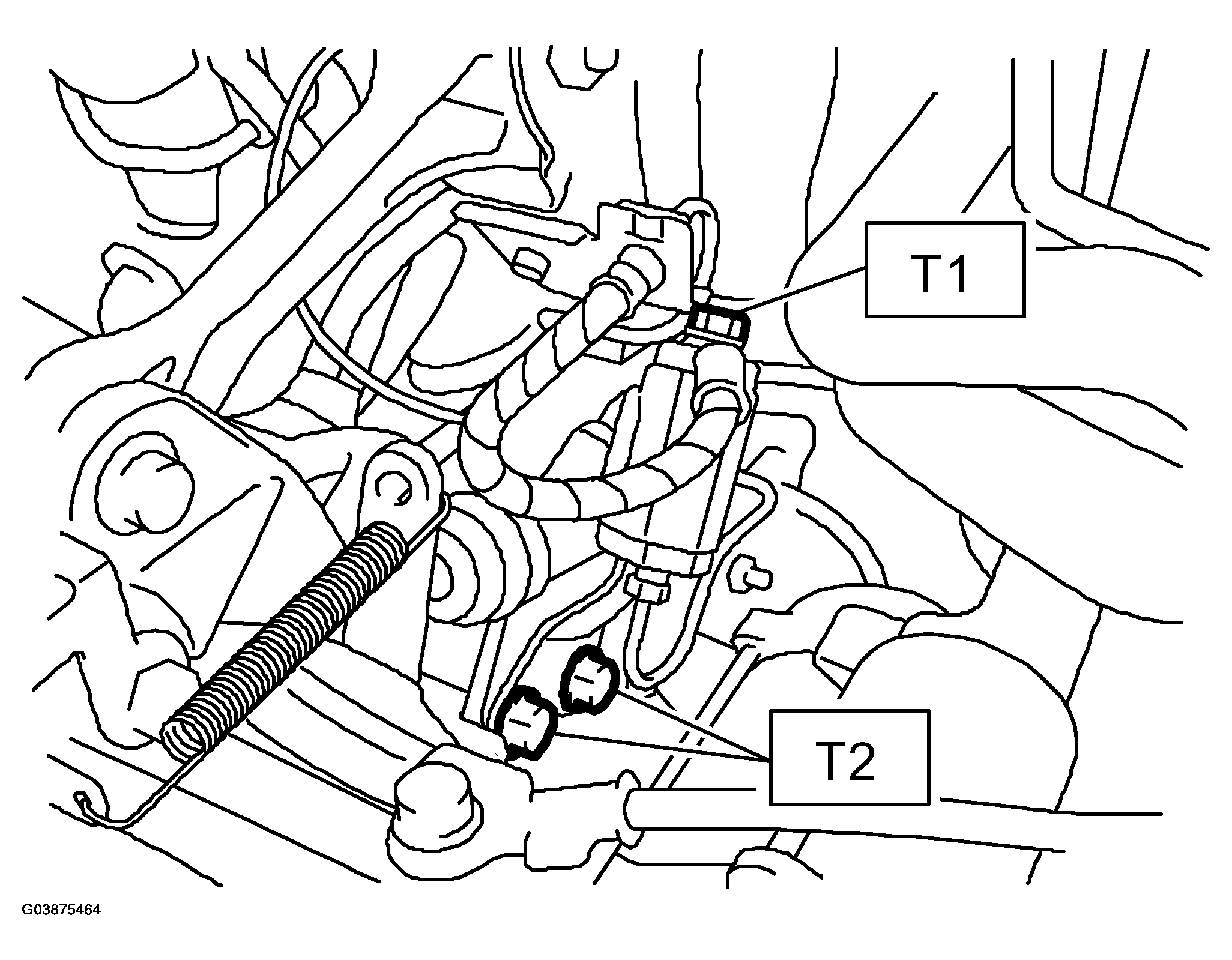

- Saab 9-2X 2.0T Aero
Tightening torque:
T1: 18 Nm (1.8 kgf-m, 13.3 ft-lb)
T2: 37 Nm (3.8 kgf-m, 27.5 ft-lb)

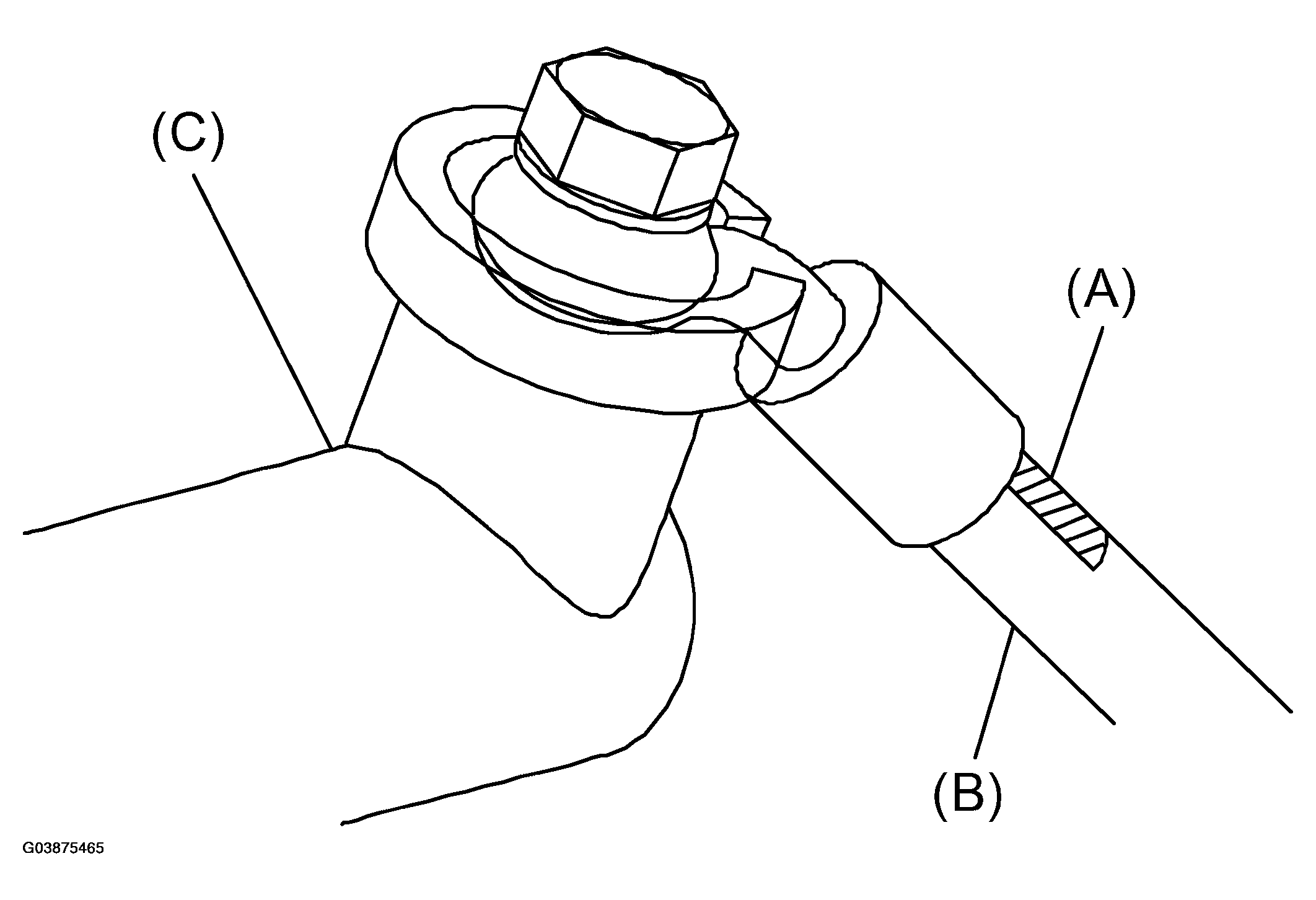

NOTE:
- Be sure to install the clutch hose with the mark side facing upward.
- Be careful not to twist the clutch hose during installation.
- Marking
- Clutch hose
- Operating cylinder
After bleeding air from the operating cylinder, ensure that clutch operates properly.
