Master Cylinder: Assembly

Install the clutch damper. (Saab 9-2X 2.0T Aero)

Tightening torque:

46.6 Nm (4.75 kgf-m, 34.4 ft-lb)

Apply a coat of grease to the contacting surfaces of the push rod and piston before installation.

Grease:

SILICONE GREASE G40M (Part No. 32005018)

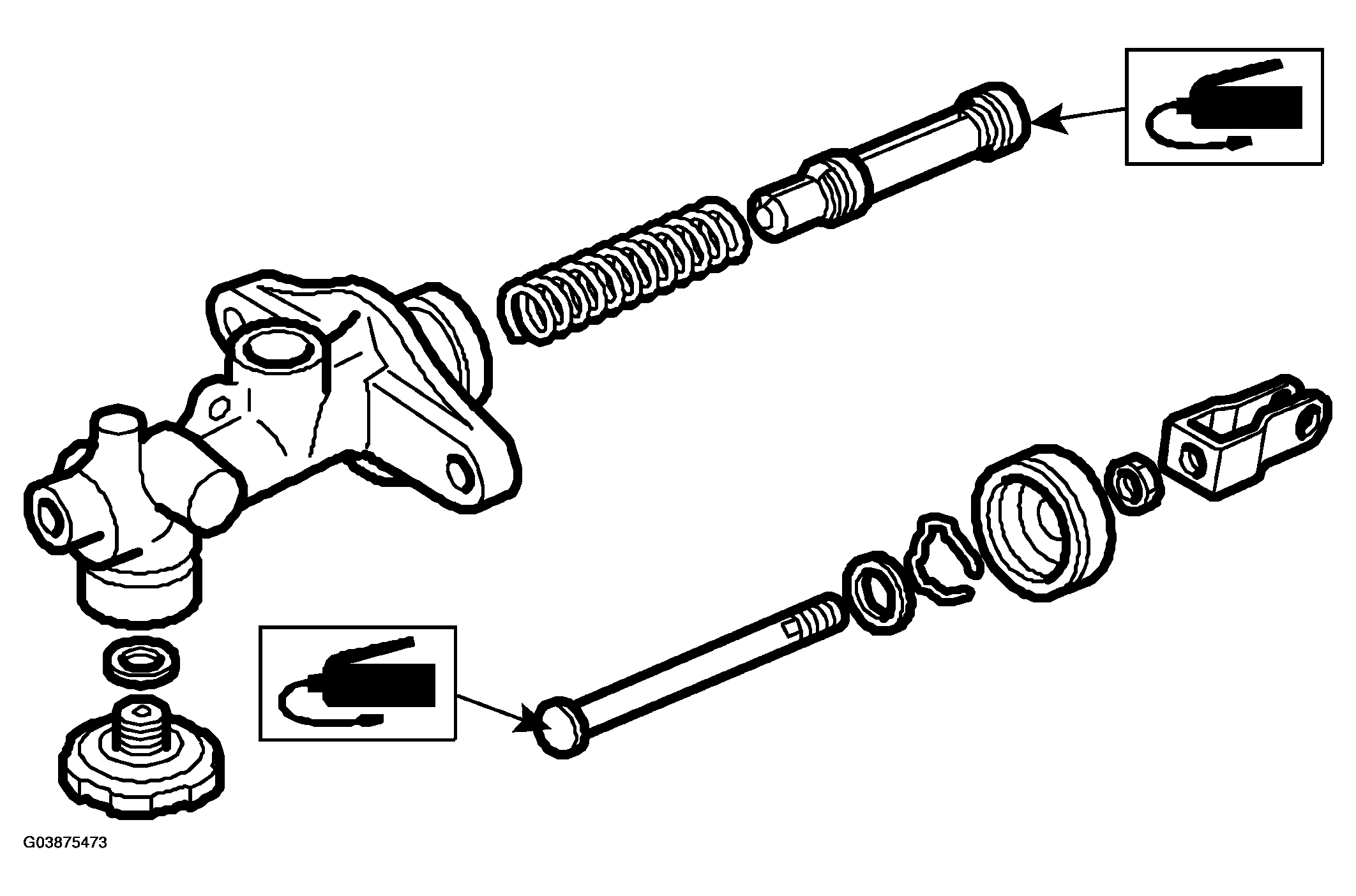

Fig 1: Exploded View Of Master Cylinder

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Assemble in the reverse order of disassembly.

Tightening torque:

10 Nm (1.0 kgf-m, 7 ft-lb)
