Steering Wheel & Column

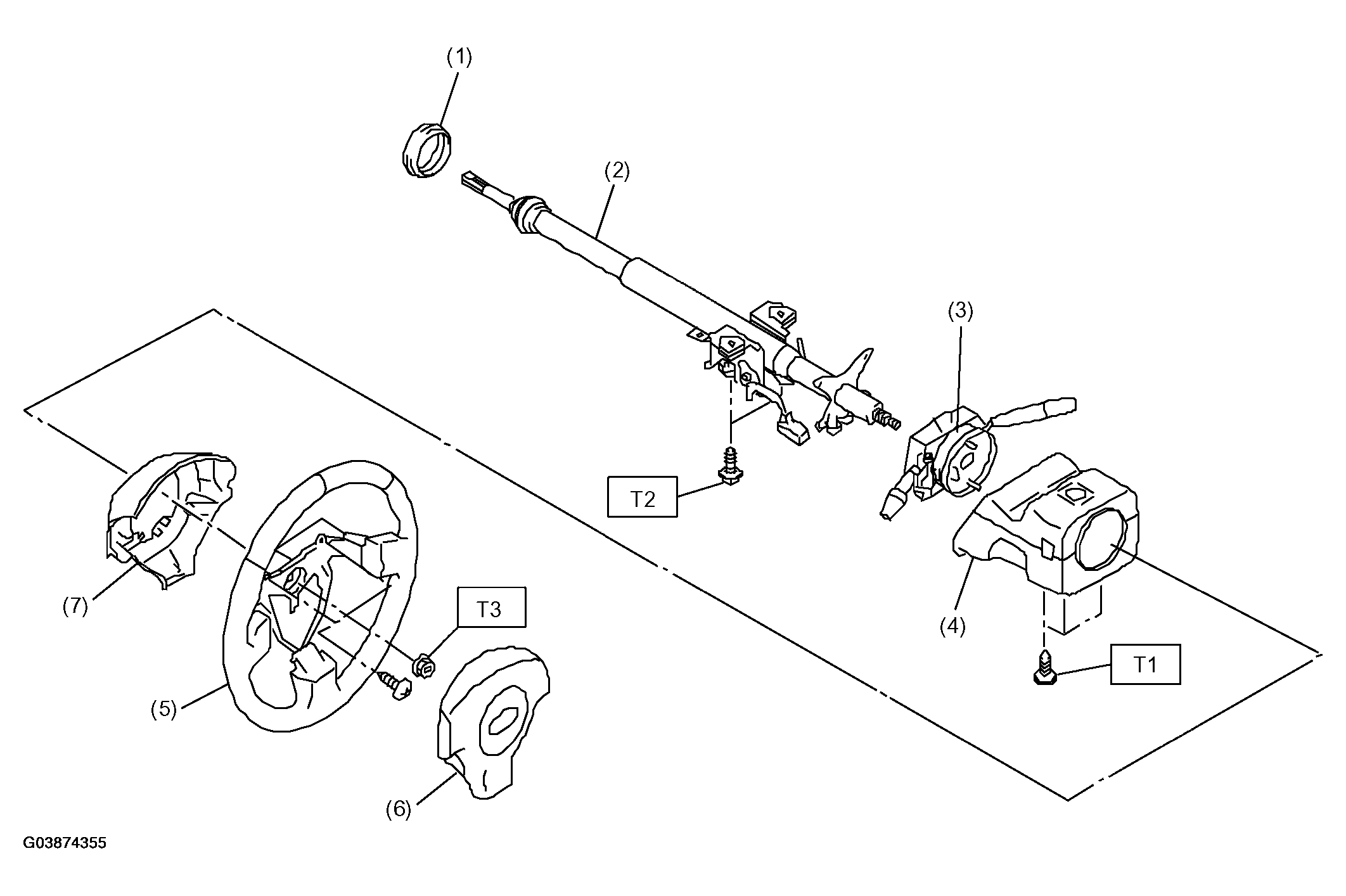

Fig 1: Exploded View Of Steering Wheel And Column

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Bushing
2. Steering shaft
3. Steering roll connector
4. Column cover
5. Steering wheel
6. Airbag module
7. Steering wheel lower cover

Tightening torque: Nm (kgf-m, ft-lb)

T1: 1.2 (0.12, 0.9)

T2: 25 (2.5, 18.1)

T3: 45 (4.6, 33.2)
