Cruise Control System: ADJUSTMENT/REPLACEMENT/Inspection: Actuator: Inspection

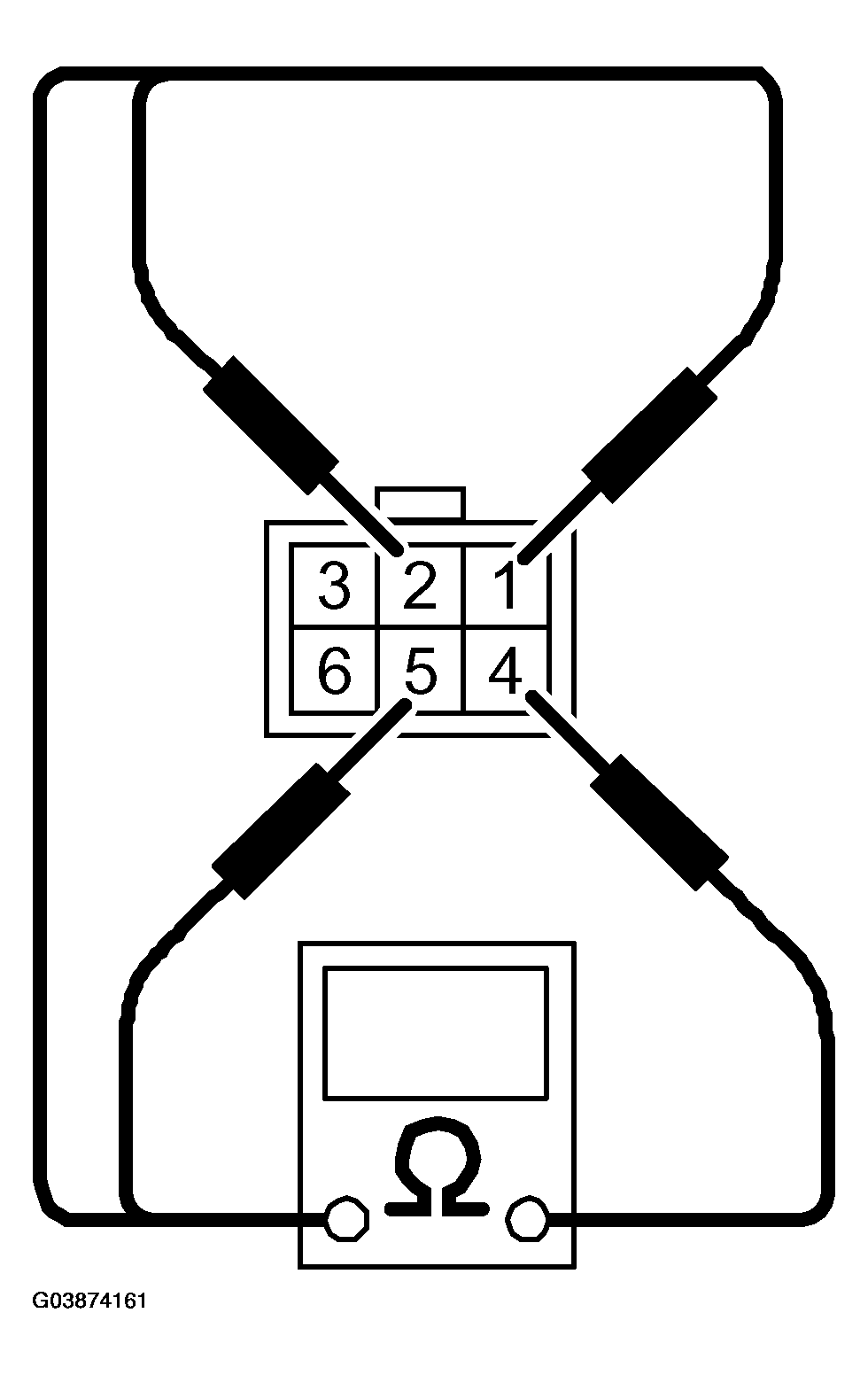

Measure the cruise control actuator resistance.
Courtesy of SAAB-SCANIA OF AMERICA, INC. RESISTANCE SPECIFICATIONS
| Terminal No. |
Standard |
| 4 and 1 |
Approx. 5 O |
| 4 and 2 |
Approx. 5 O |
| 4 and 5 |
Approx. 5 O |
| 3 and 6 |
Approx. 39 O |
If NG, replace the cruise control actuator.
