Wiring Diagram:

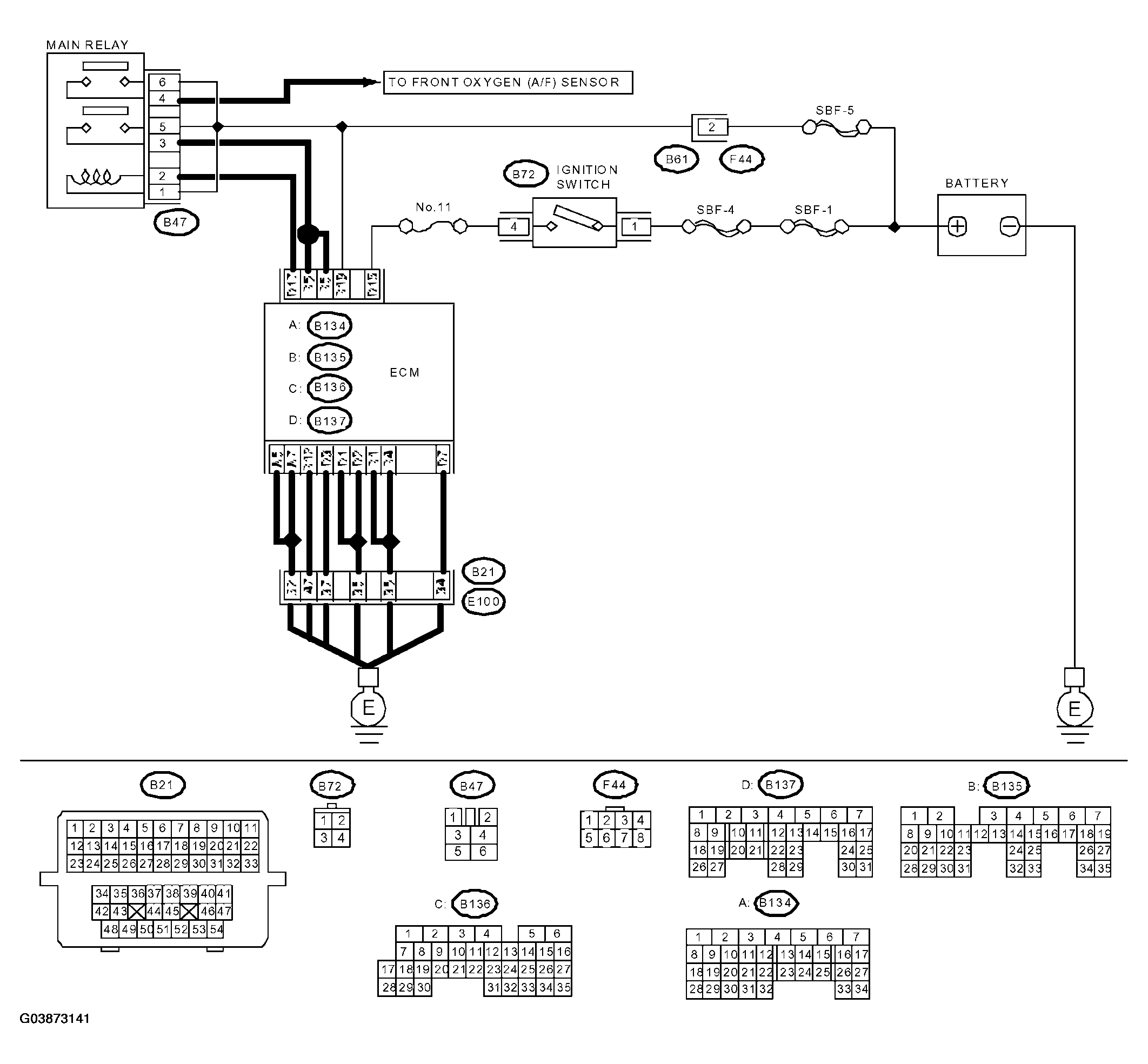

Fig 1: Wiring Diagram - Internal Control Module Random Access Memory (Ram) Error
G03873141Courtesy of SAAB-SCANIA OF AMERICA, INC.

CHECK ANY OTHER DTC ON DISPLAY.

Is any other DTC displayed?

YES

Check the relevant DTC using the List of Diagnostic Trouble Code (DTC).

NO

A temporary poor contact occurs.
