Computers and Control Systems: Locations

ENGINE

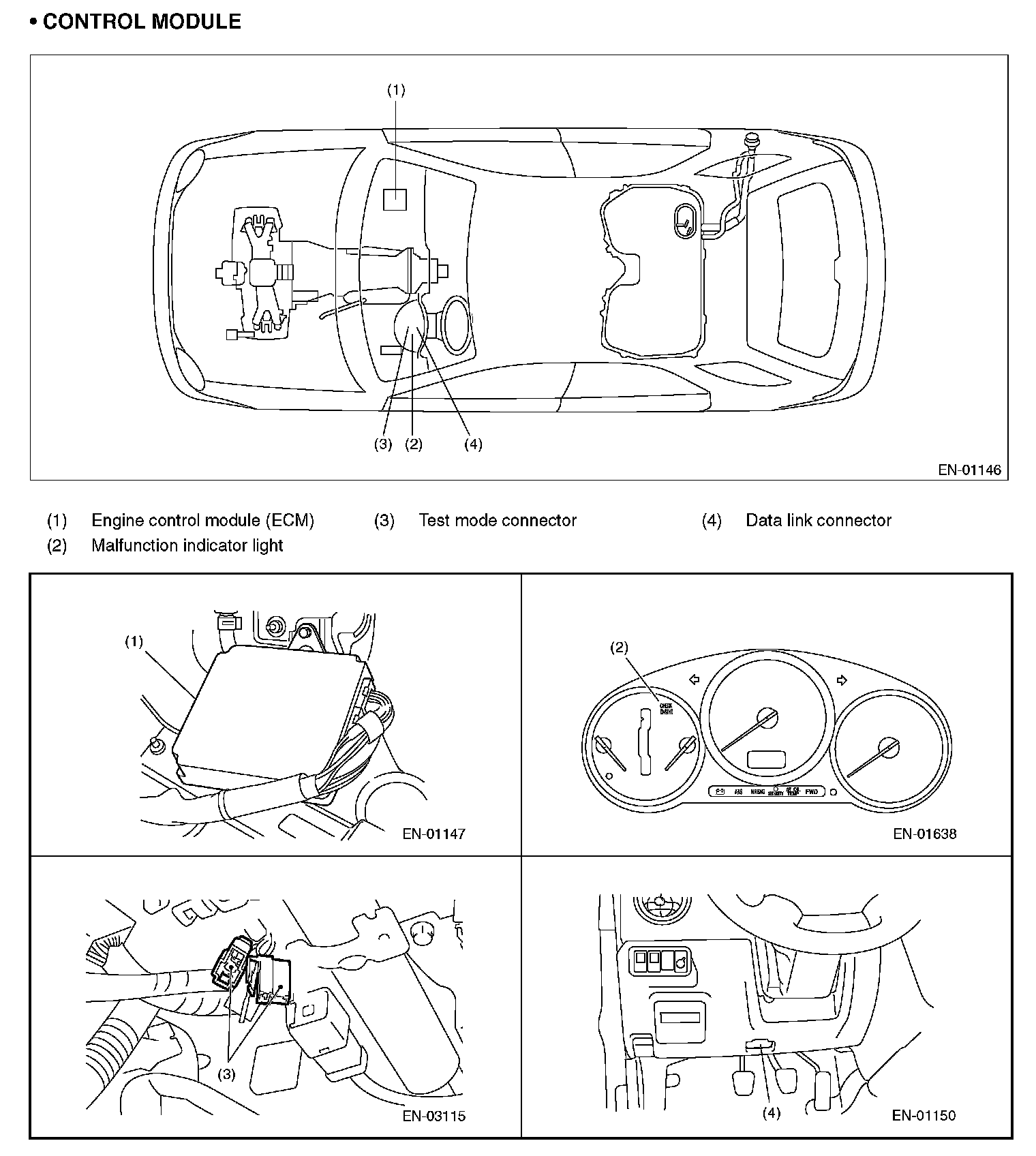

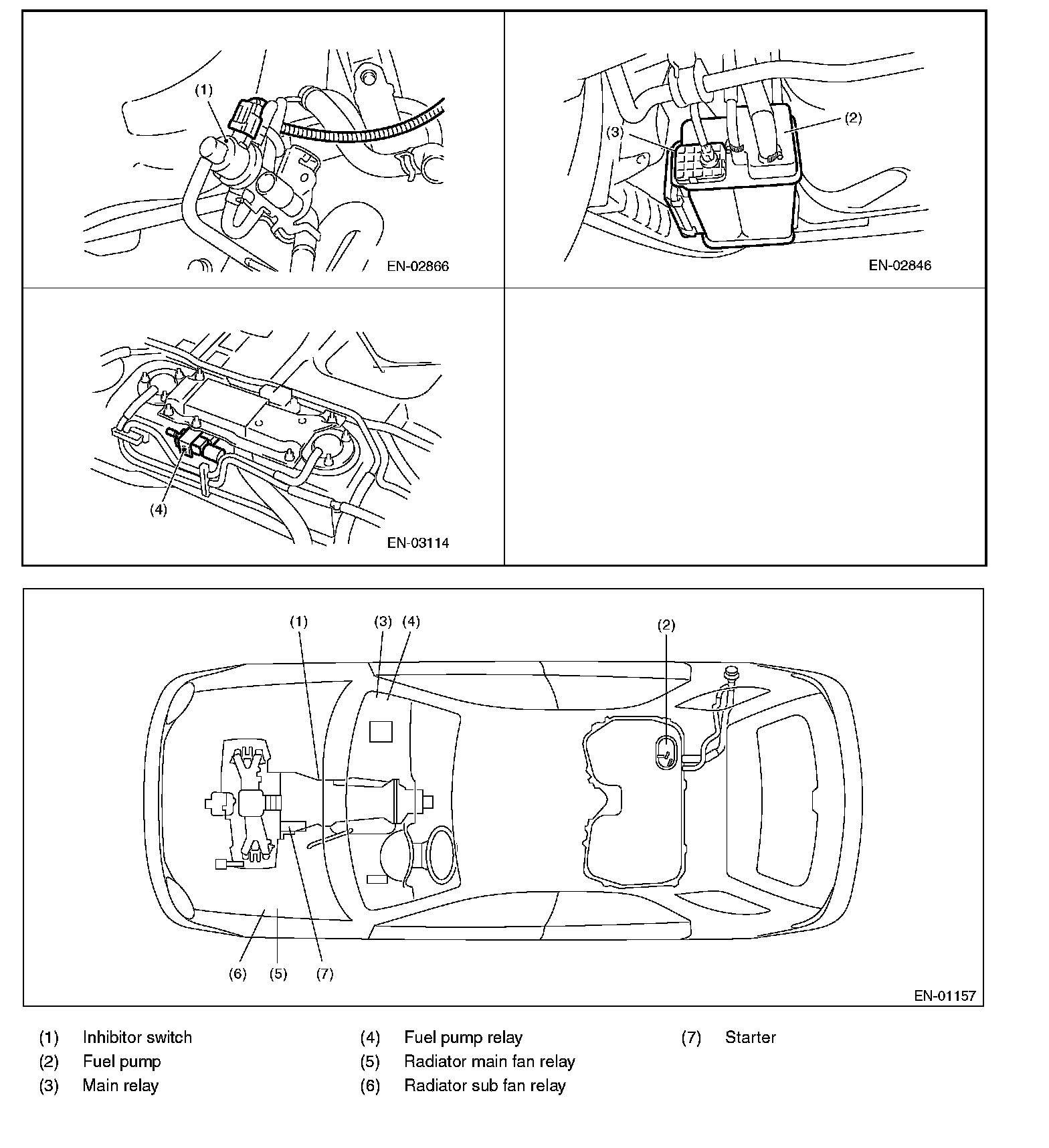

CONTROL MODULE

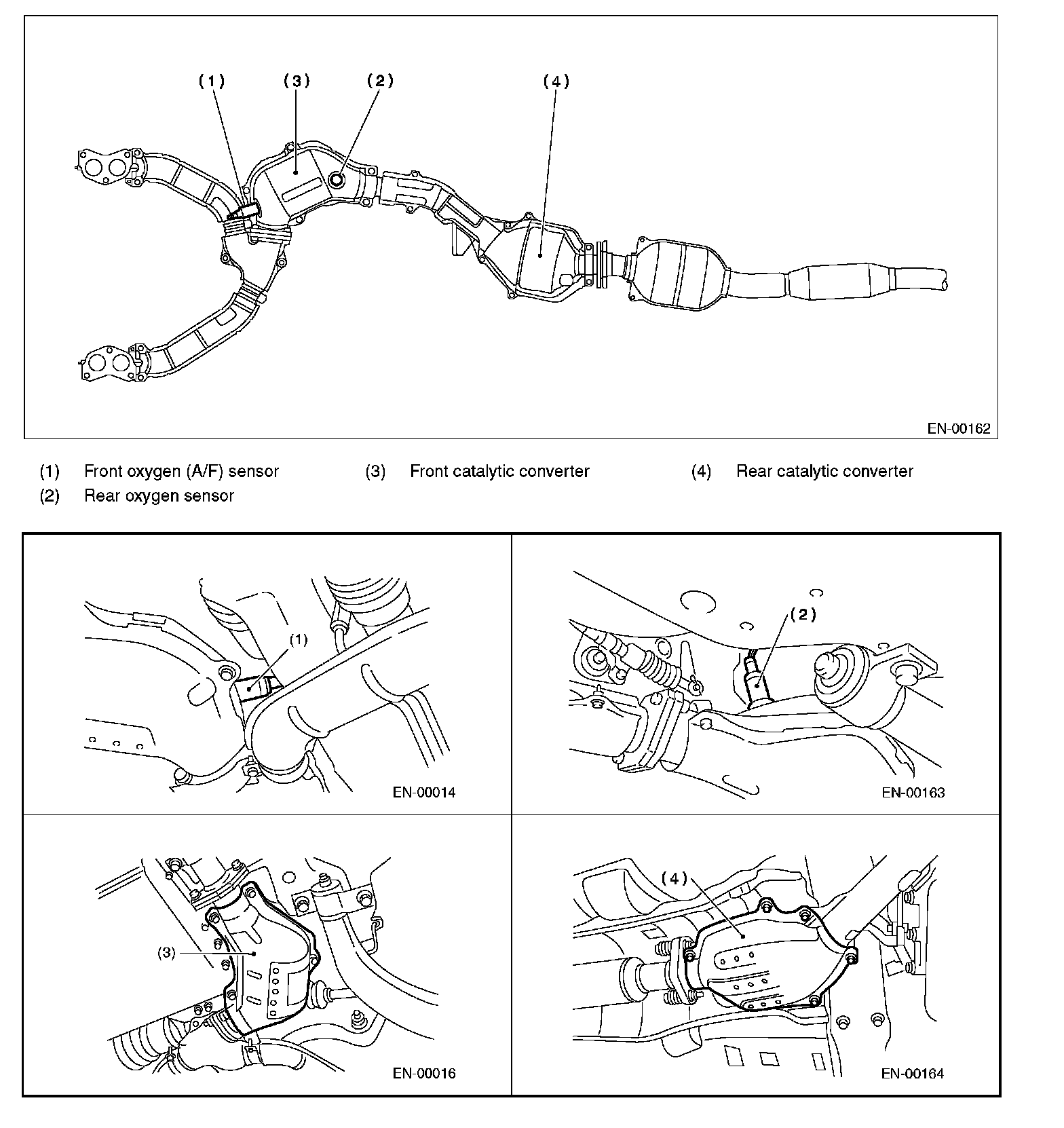

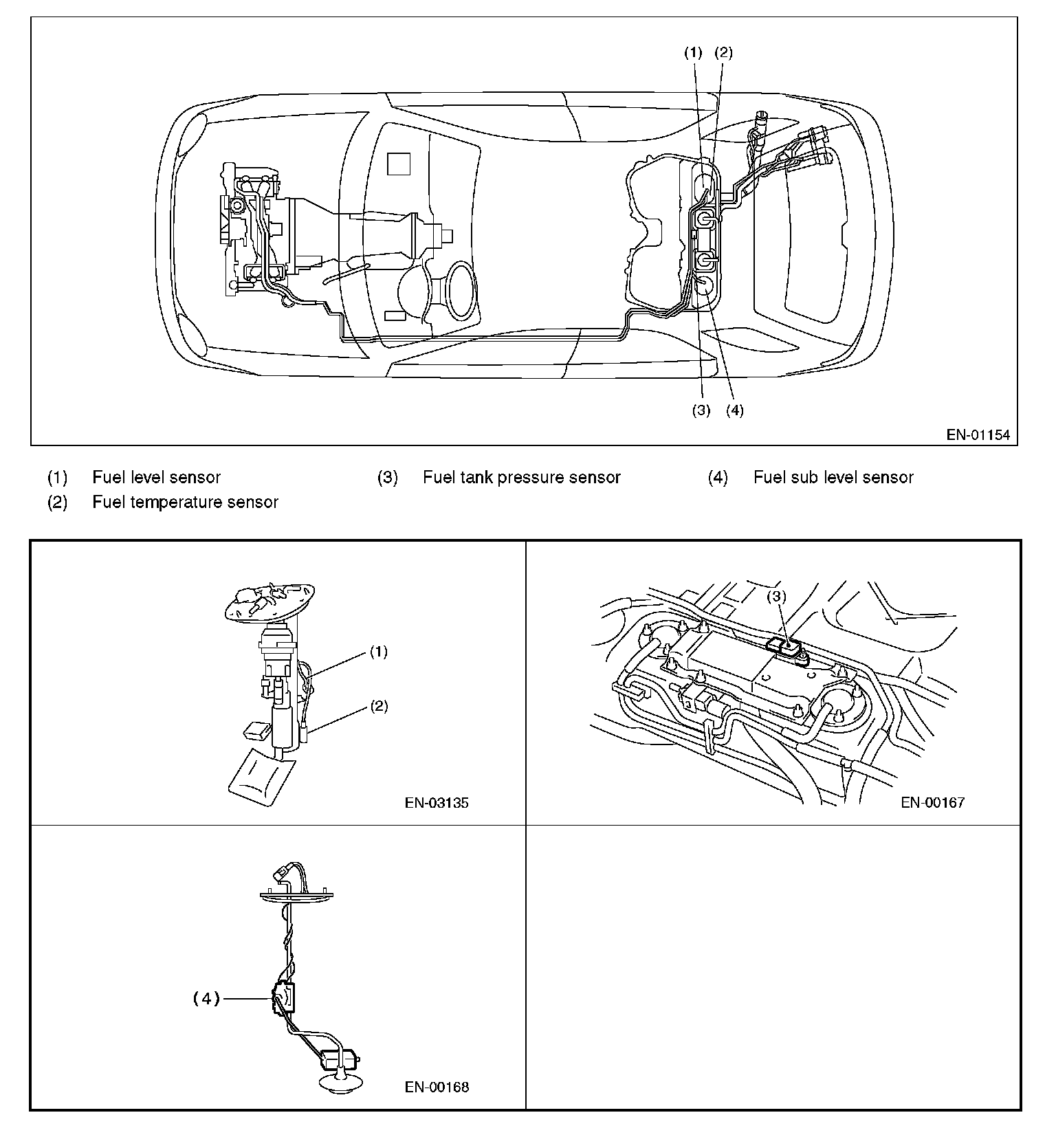

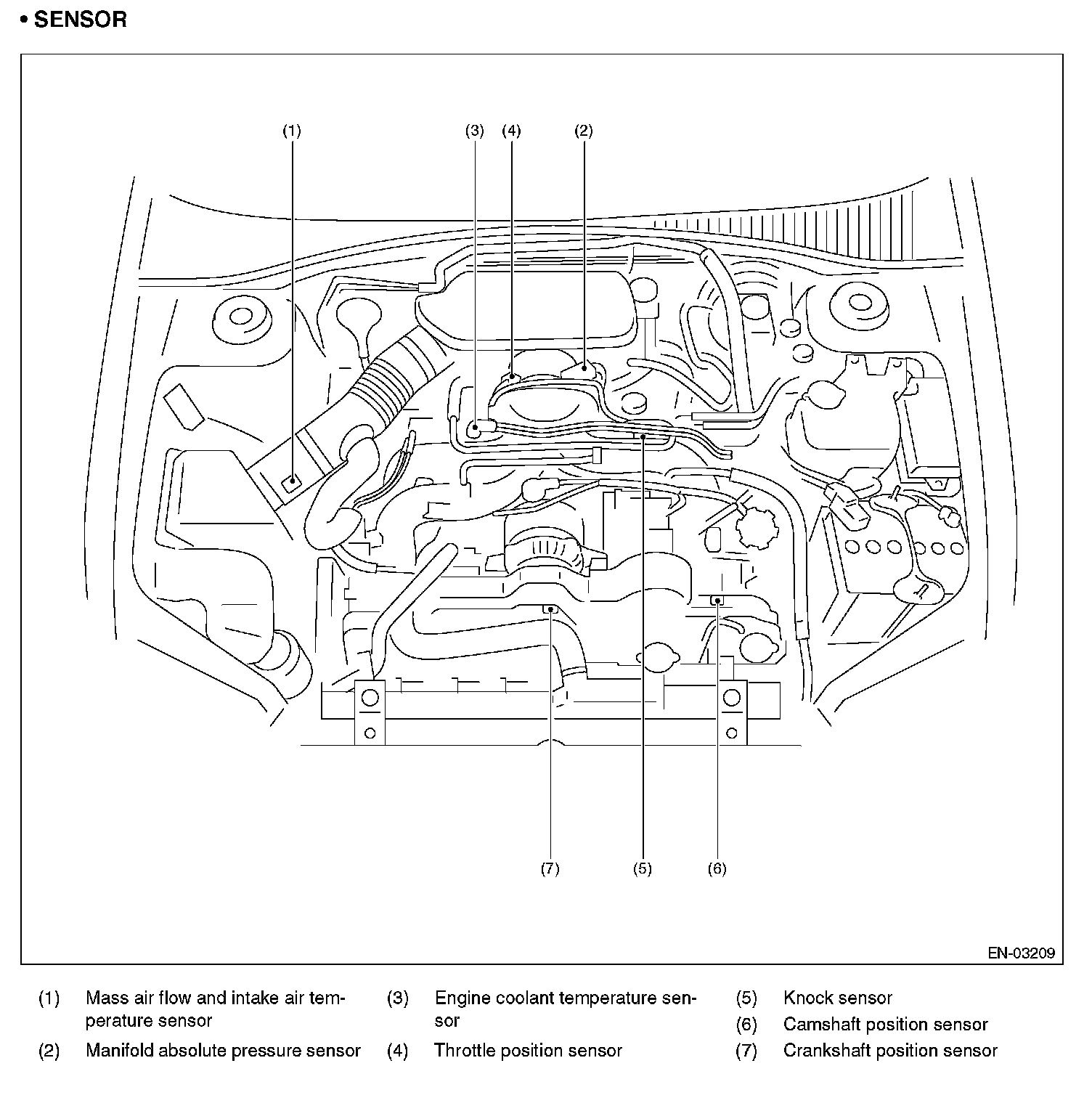

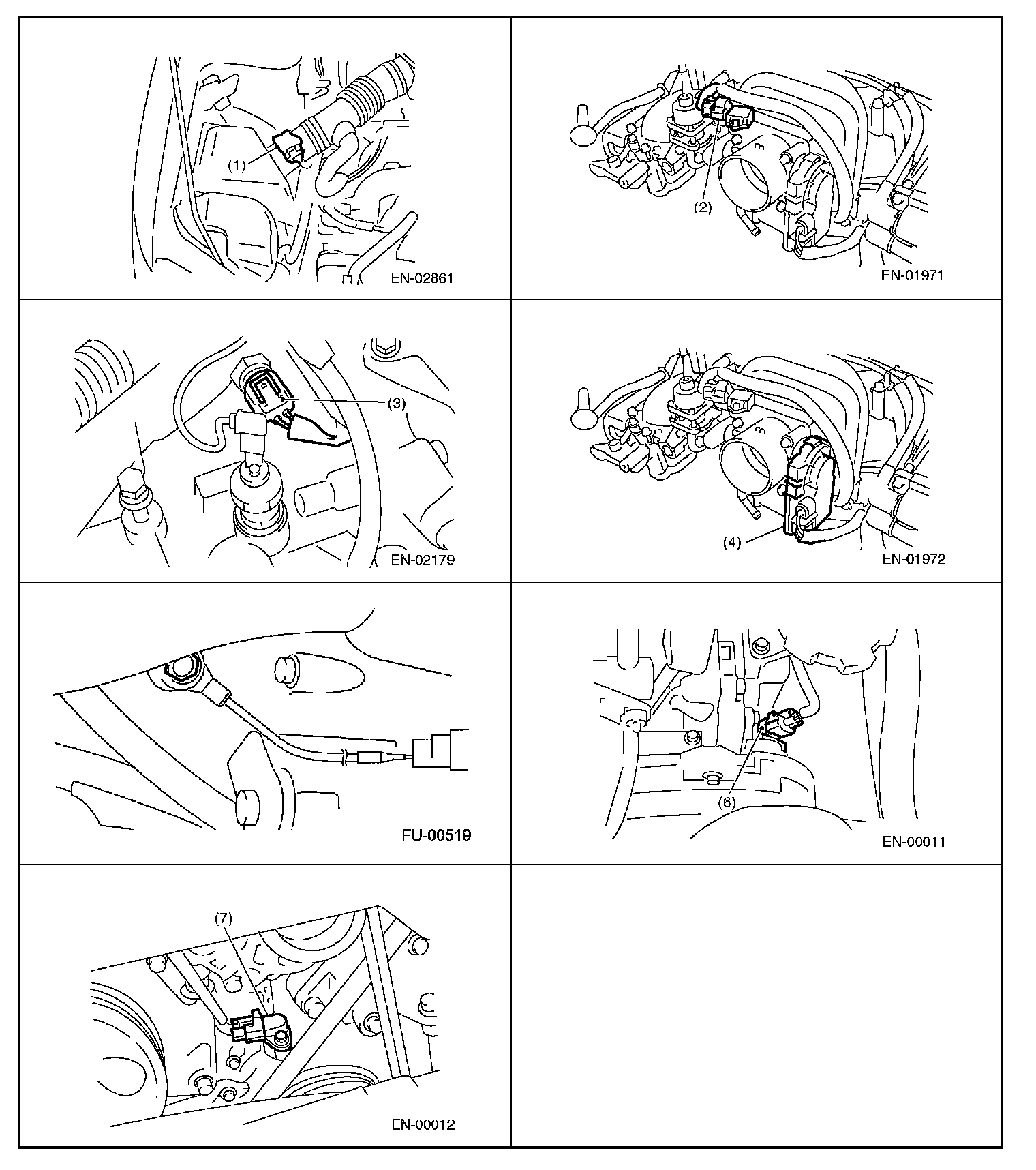

SENSOR

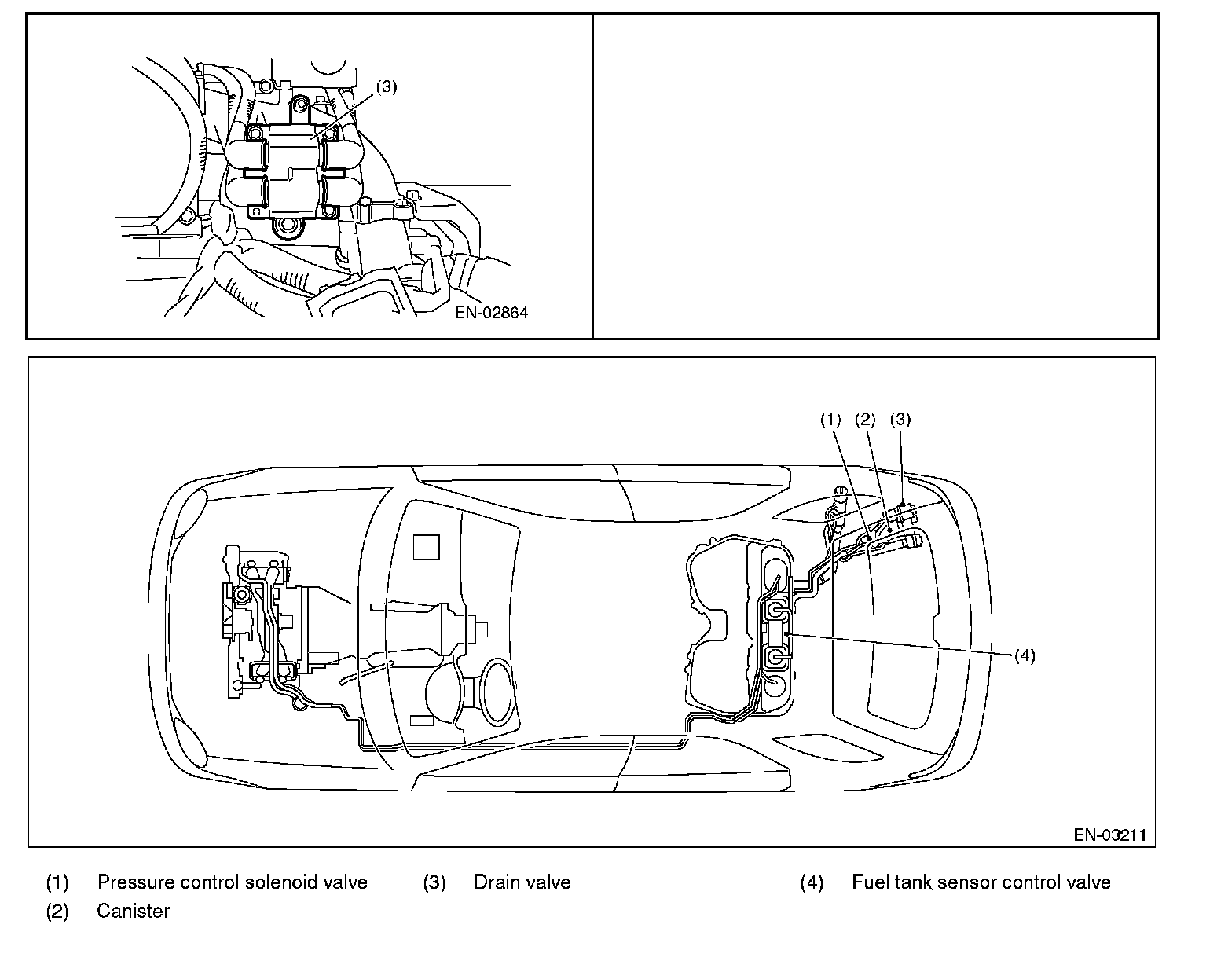

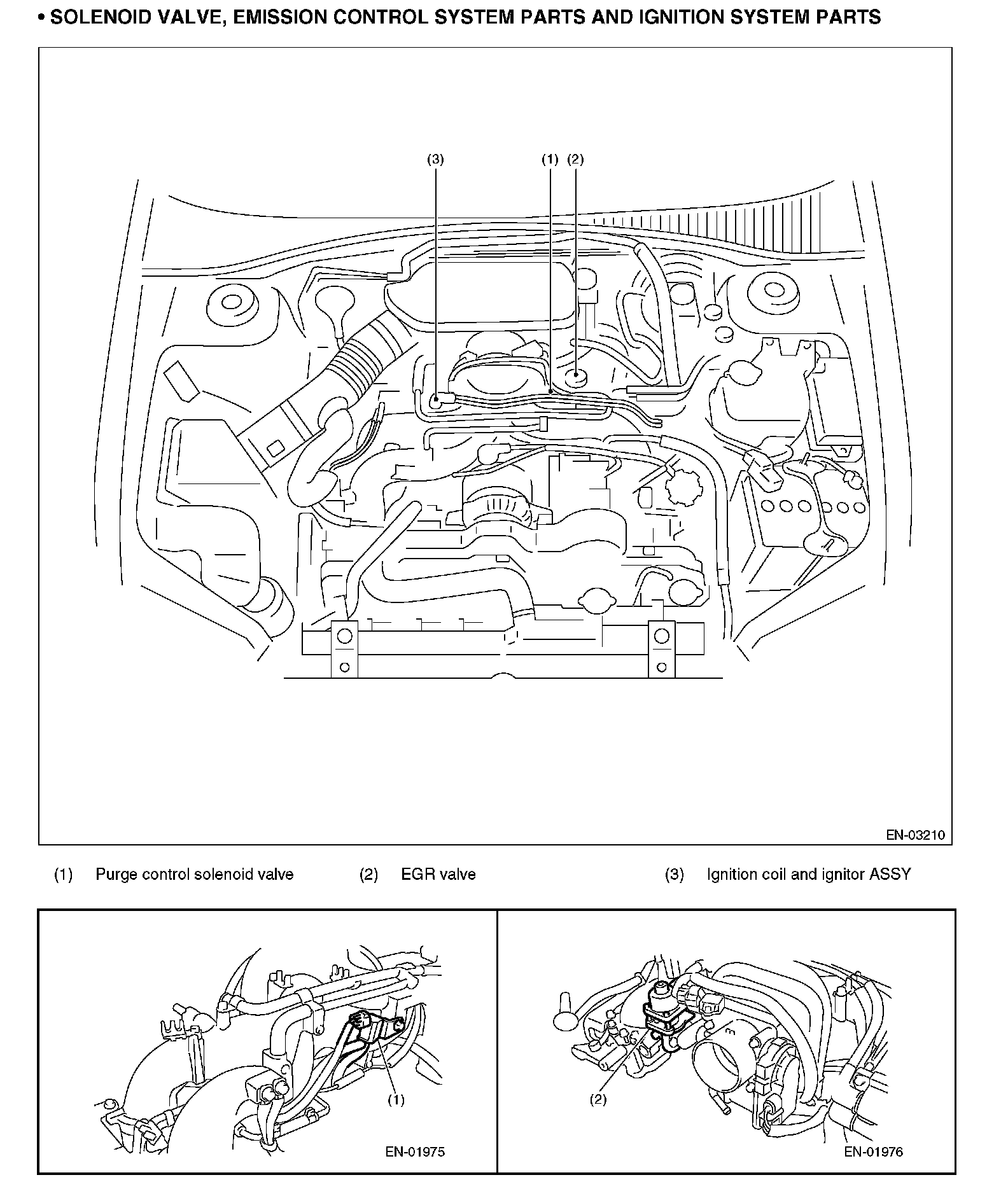

SOLENOID VALVE, EMISSION CONTROL SYSTEM PARTS AND IGNITION SYSTEM PARTS
