Transfer Case and Extension

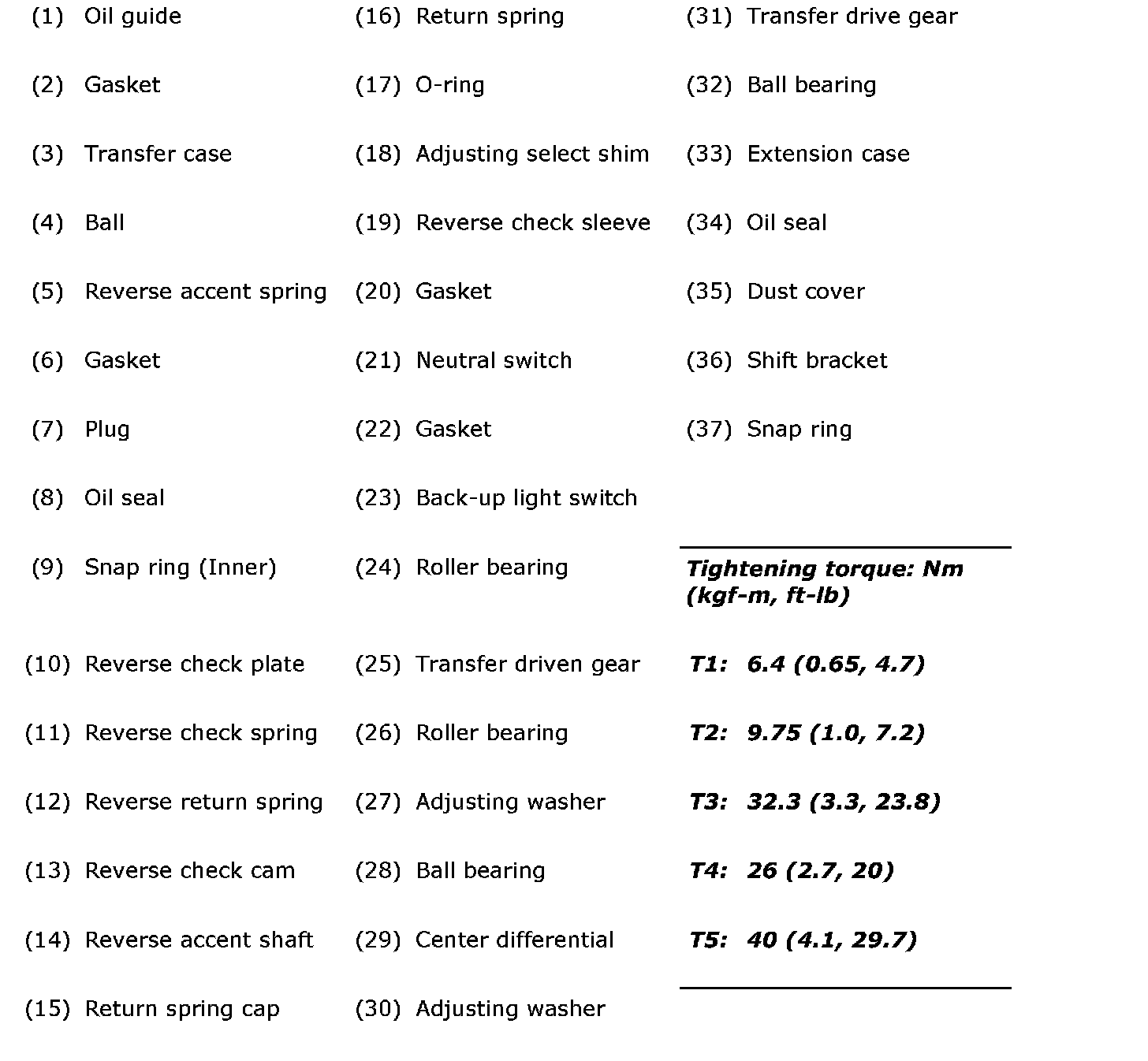

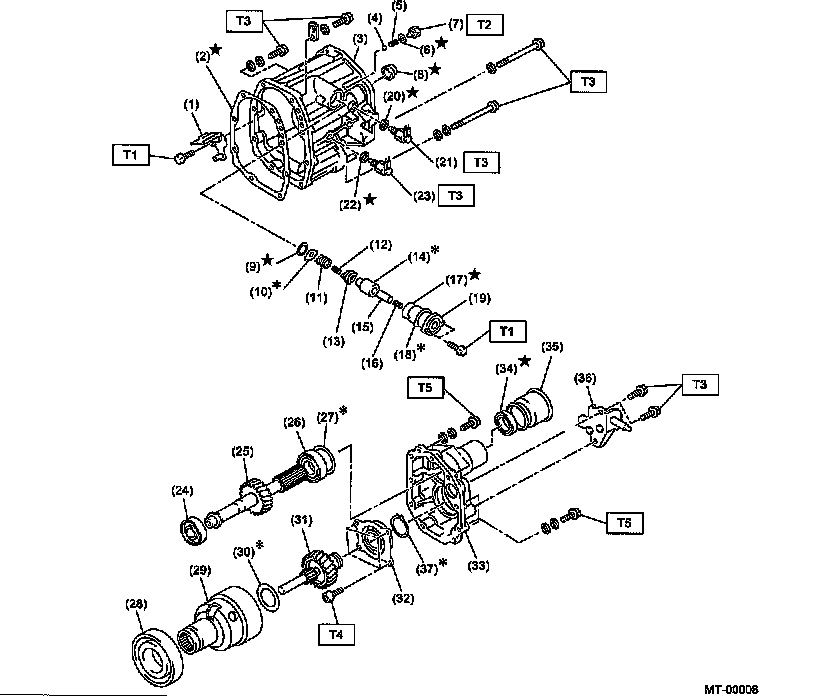

Transfer Case and Extension (Part 1):



Transfer Case and Extension (Part 2):
