Splash Guard: Service and Repair

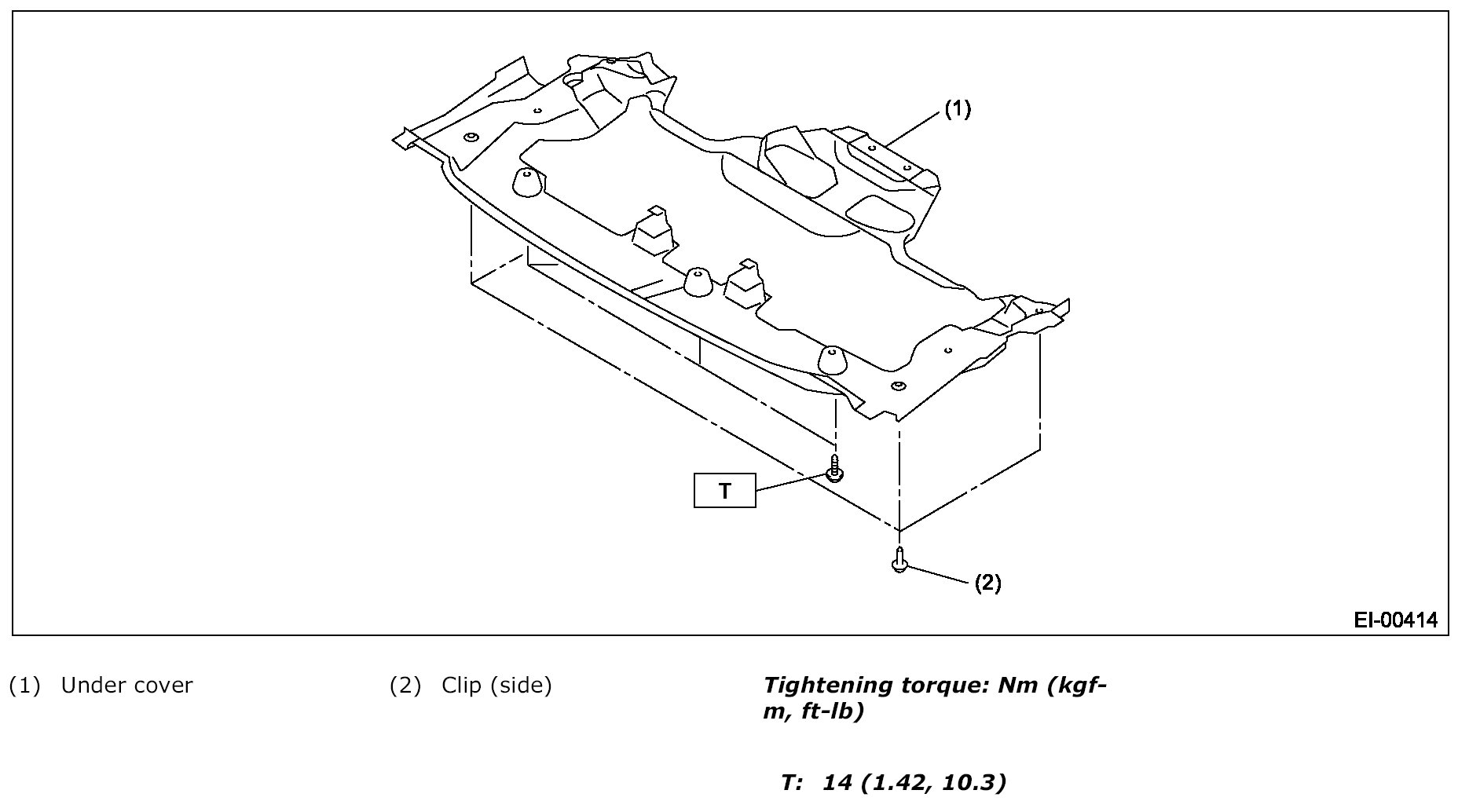

Under Cover:

REMOVAL

Lift-up the vehicle.

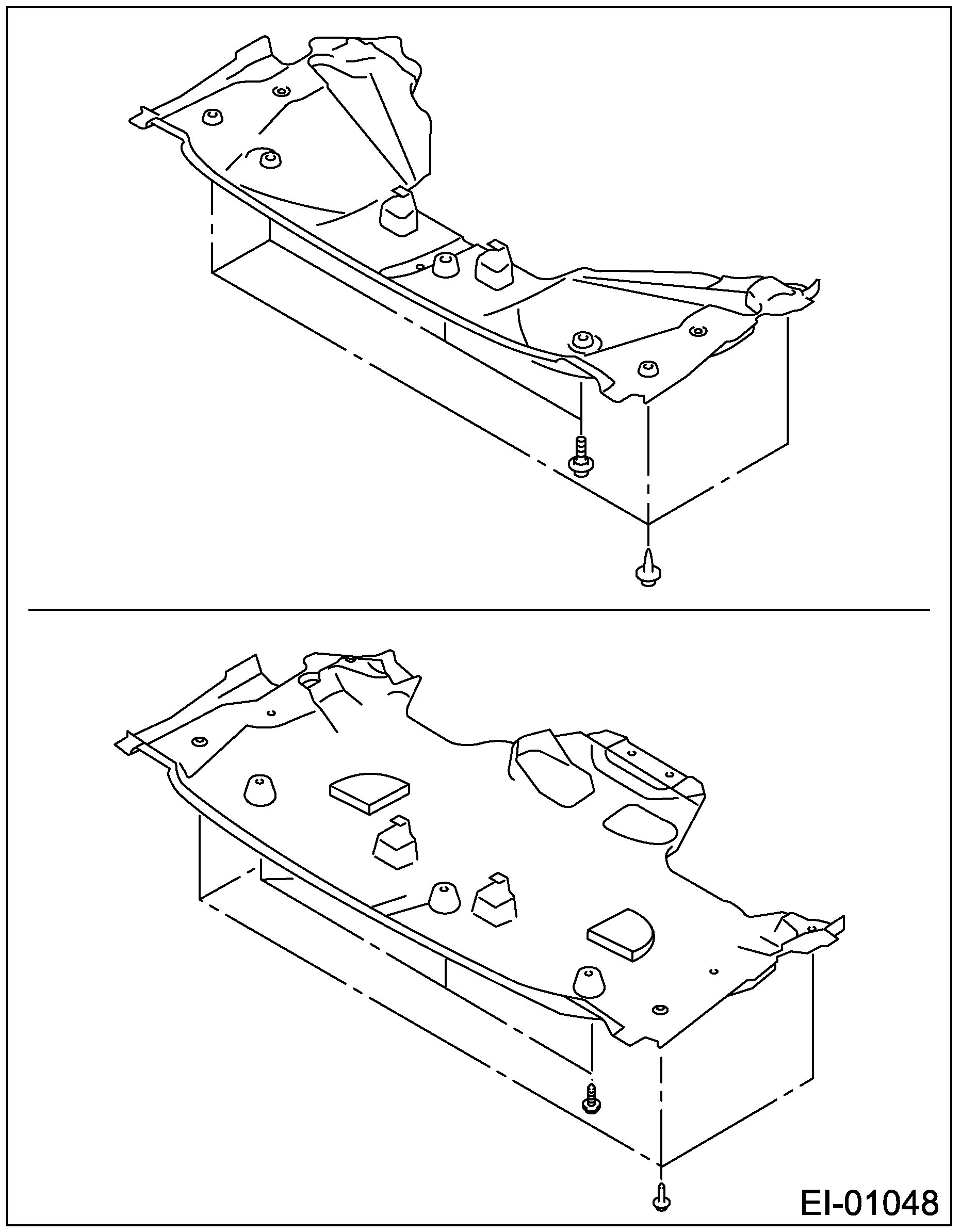

Remove the bolts and clips to remove under cover.

INSTALLATION

Install in the reverse order of removal.

Tightening torque: 14 Nm (1.42 kgf-m, 10.3 ft-lb)
