To fit

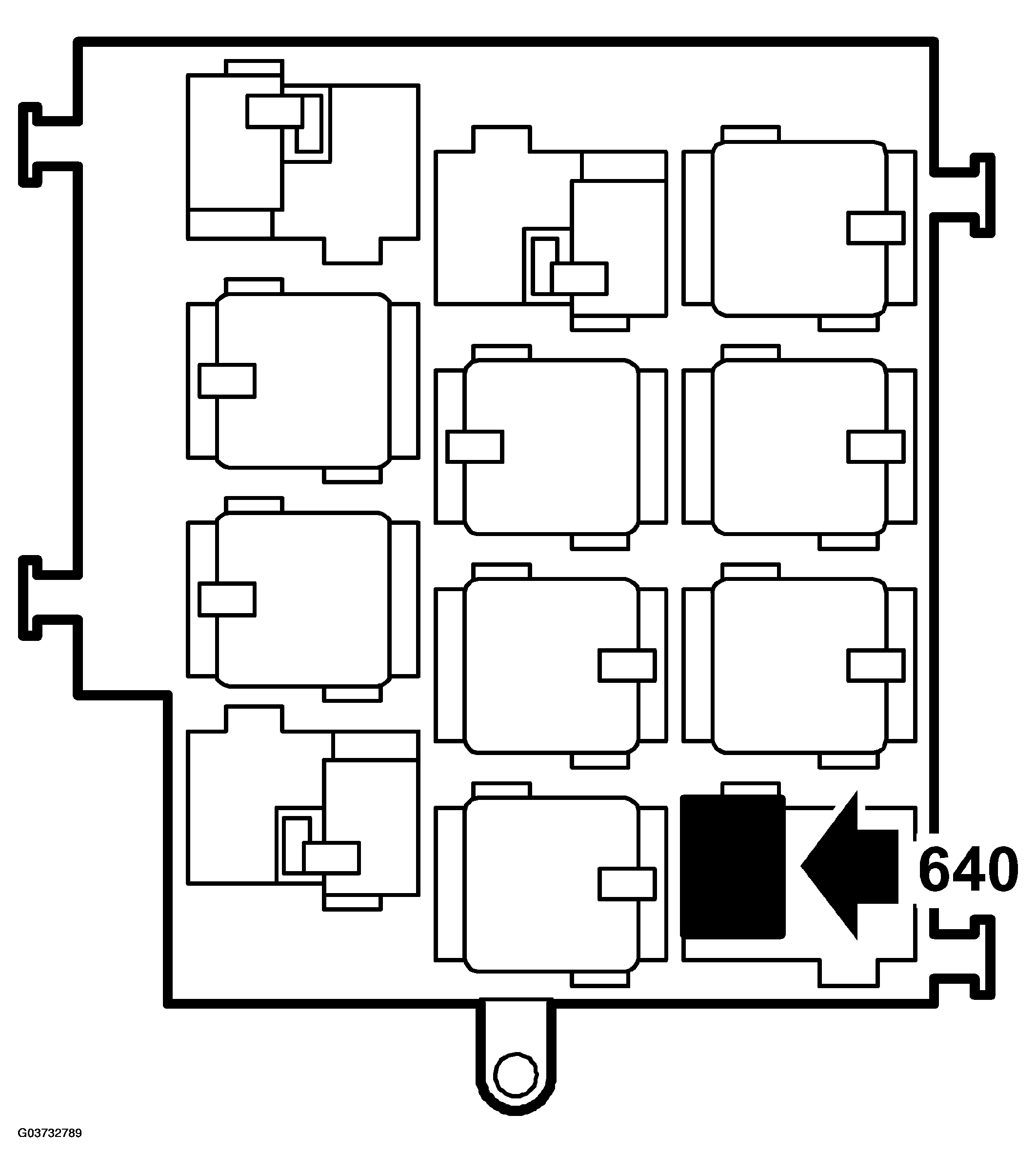

Fig 1: Fitting Relay
G03732789Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Spray the connectors in the relay holder with Kontakt 61 (part no. 30 04 520) and fit the relay.
  2. Tilt up the relay holder so that the cover closes.

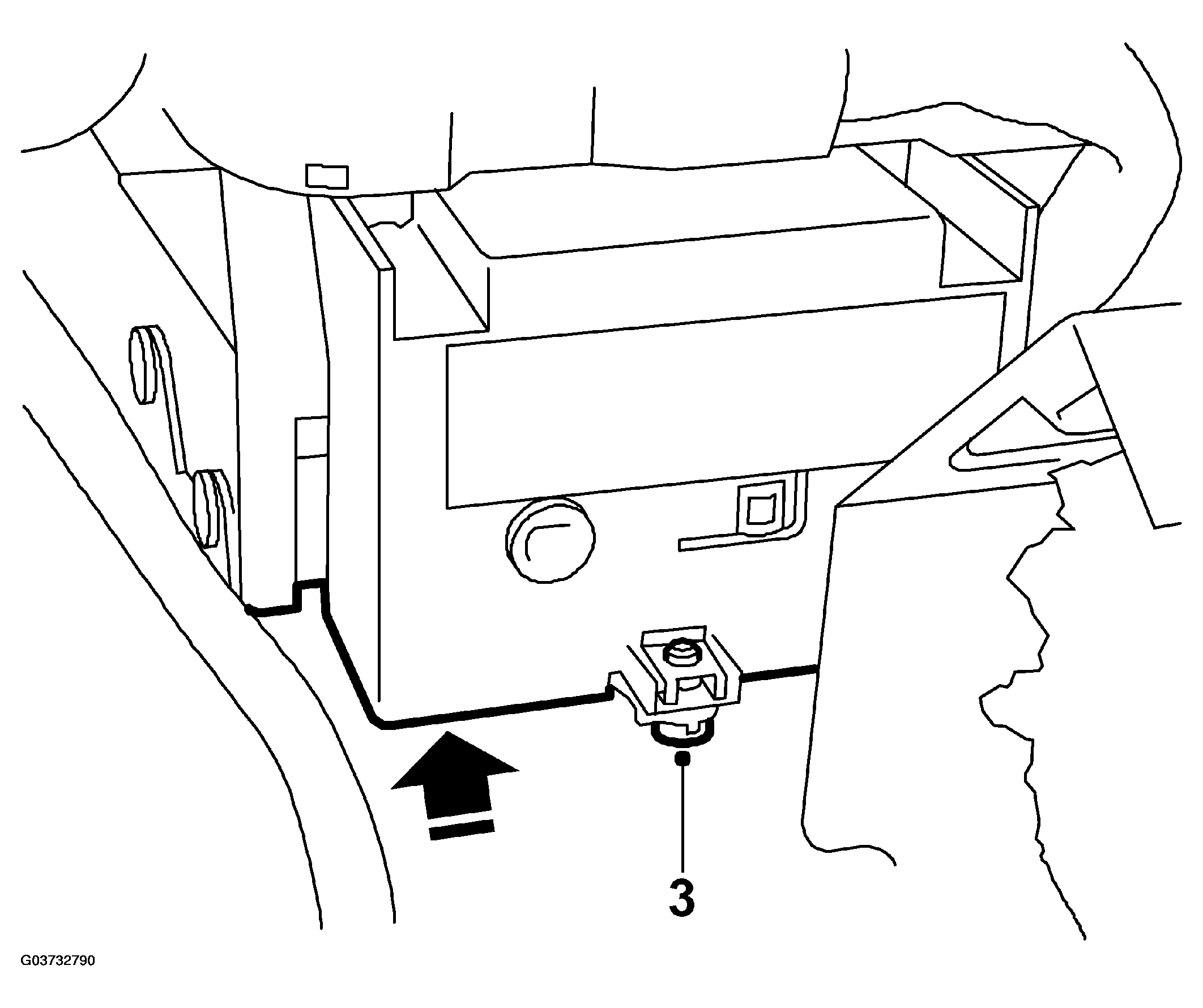

    Fig 2: Illustration For Step 3
    G03732790Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Tighten the screw on the relay box.
  4. Replace the cables to the diagnostic tool data link connector and the lighting. Position the pedal bracket cover and tighten the 3 screws and the clip.

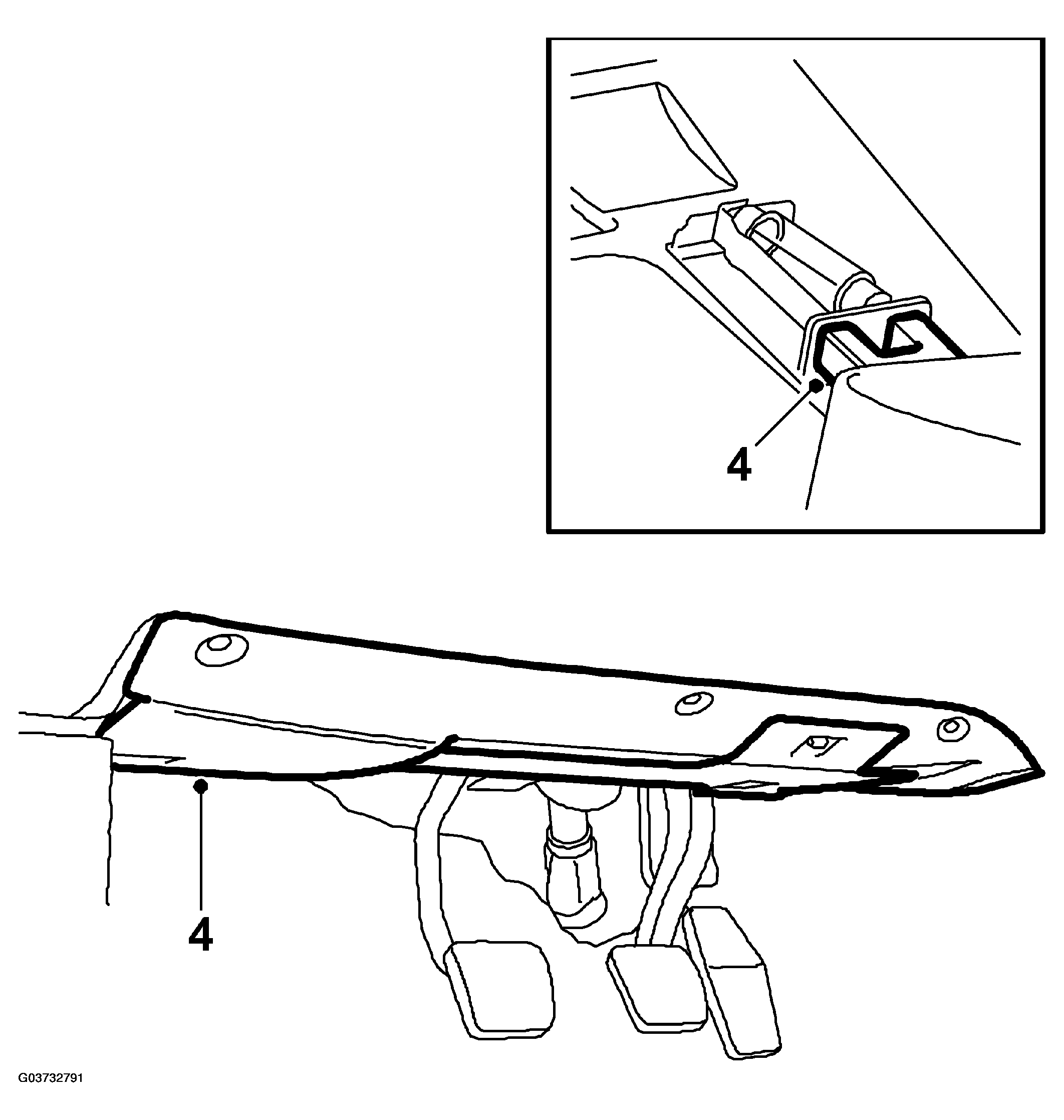

    Fig 3: Illustration For Step 4
    G03732791Courtesy of SAAB-SCANIA OF AMERICA, INC.
