Connector H10-15

4D

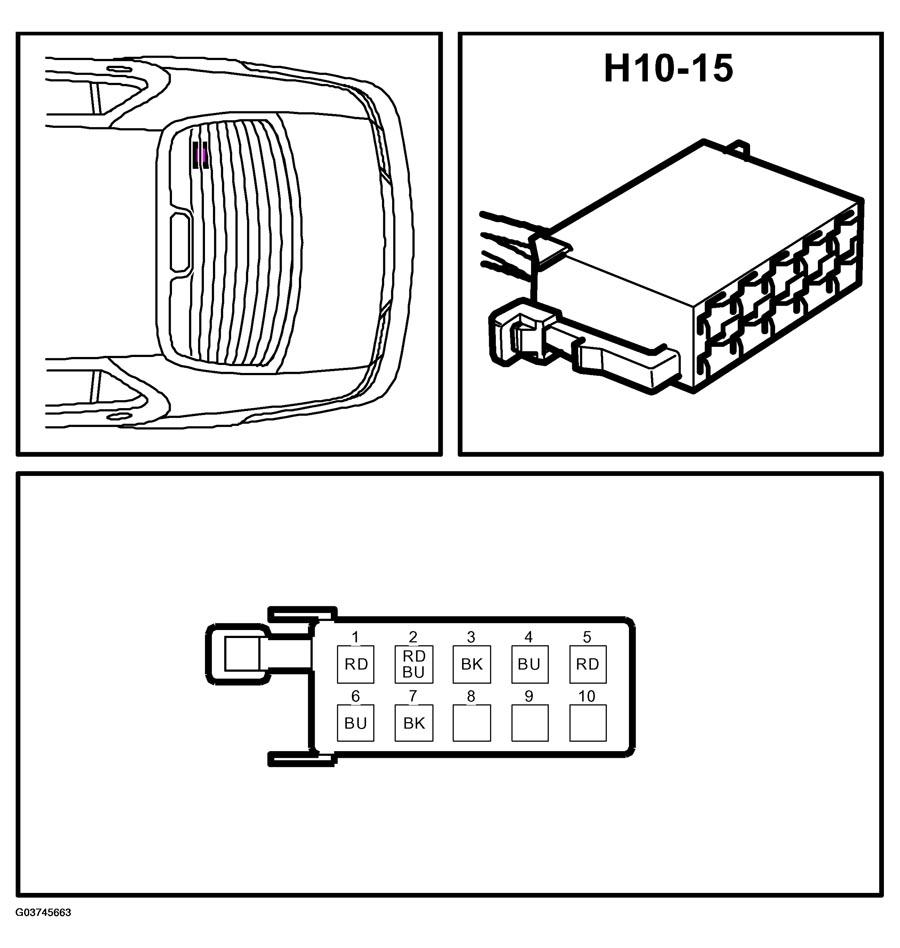

Fig 1: Identifying Connector H10-15 Pin Out (4D)
G03745663Courtesy of SAAB-SCANIA OF AMERICA, INC.

5D

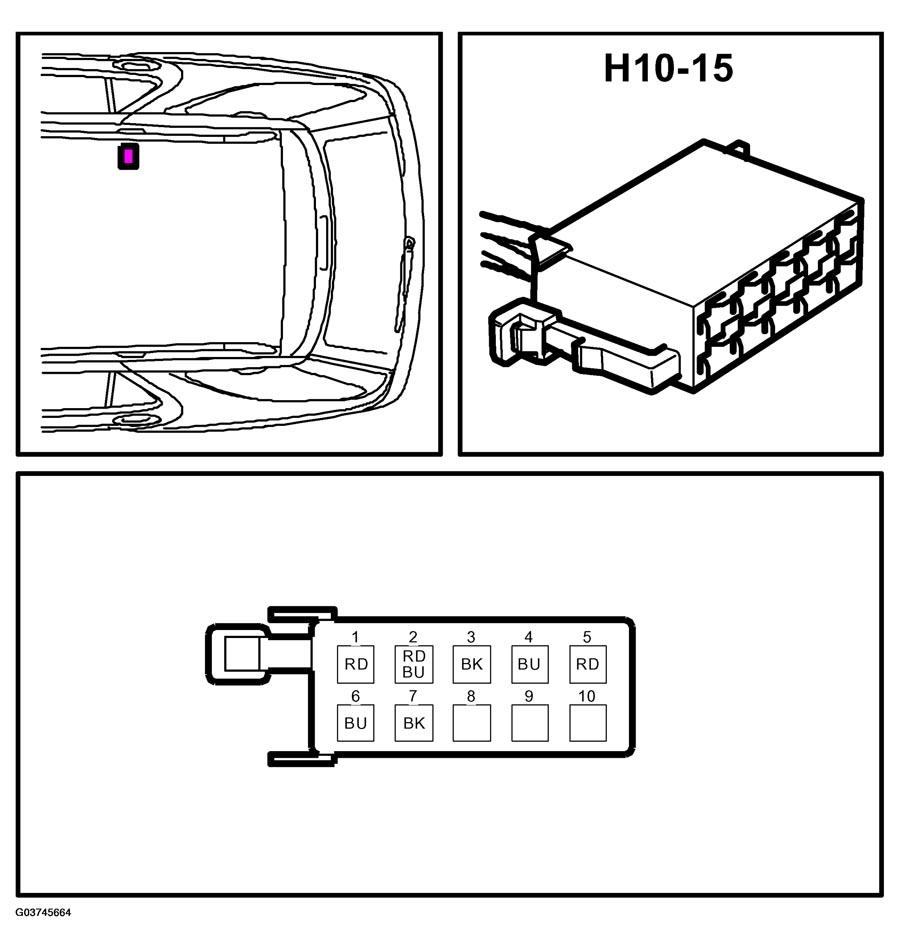

Fig 2: Identifying Connector H10-15 Pin Out (5D)
G03745664Courtesy of SAAB-SCANIA OF AMERICA, INC.
