C1371: Wheel Sensor Front Left. Signal Incorrect: Notes

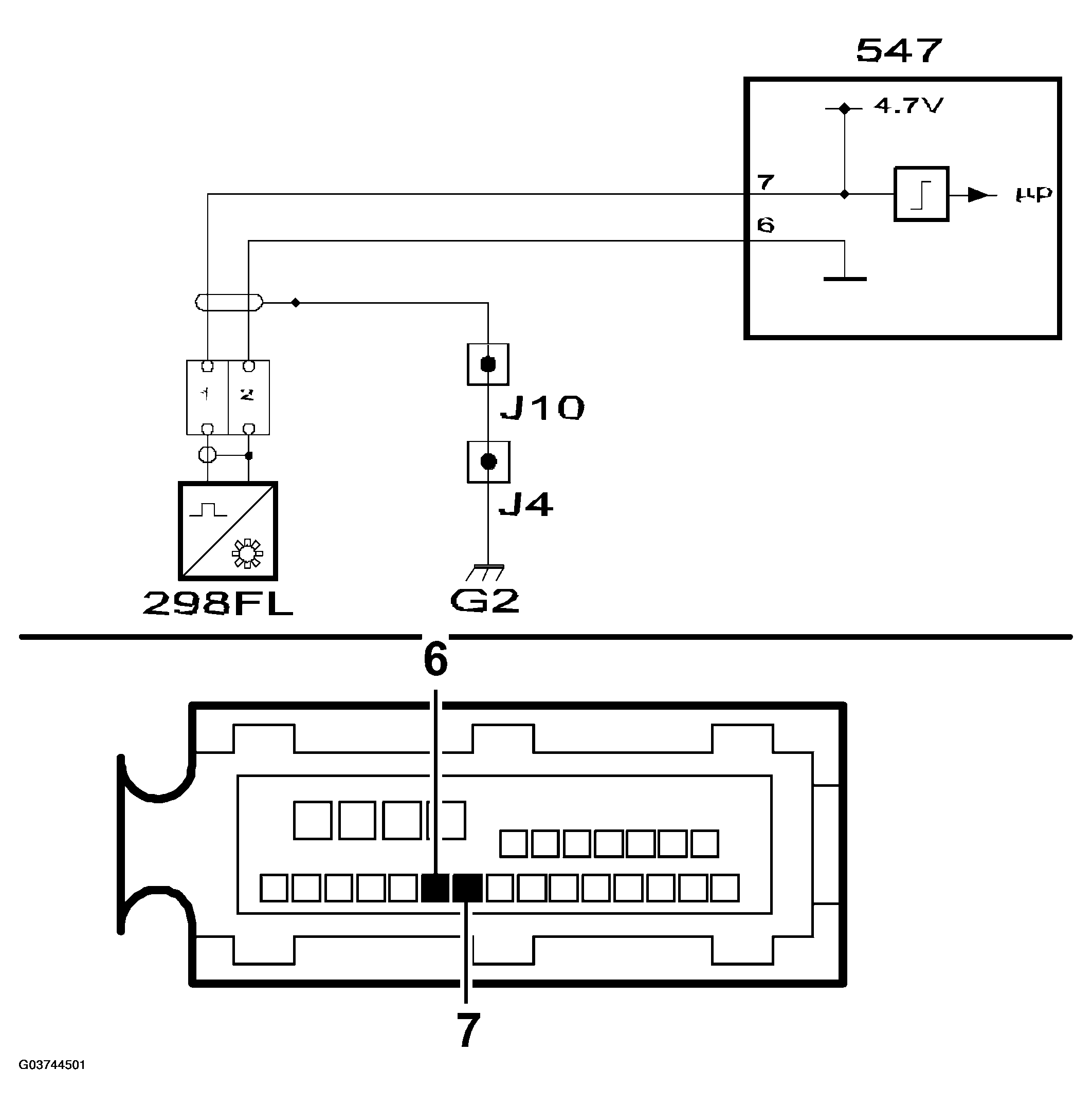

Fig 1: Circuit Diagram - Wheel Sensor Front Left (Signal Incorrect)
G03744501Courtesy of SAAB-SCANIA OF AMERICA, INC.
