Injector, cyl. 4 (206d): Location:: Simtec

under the cable duct

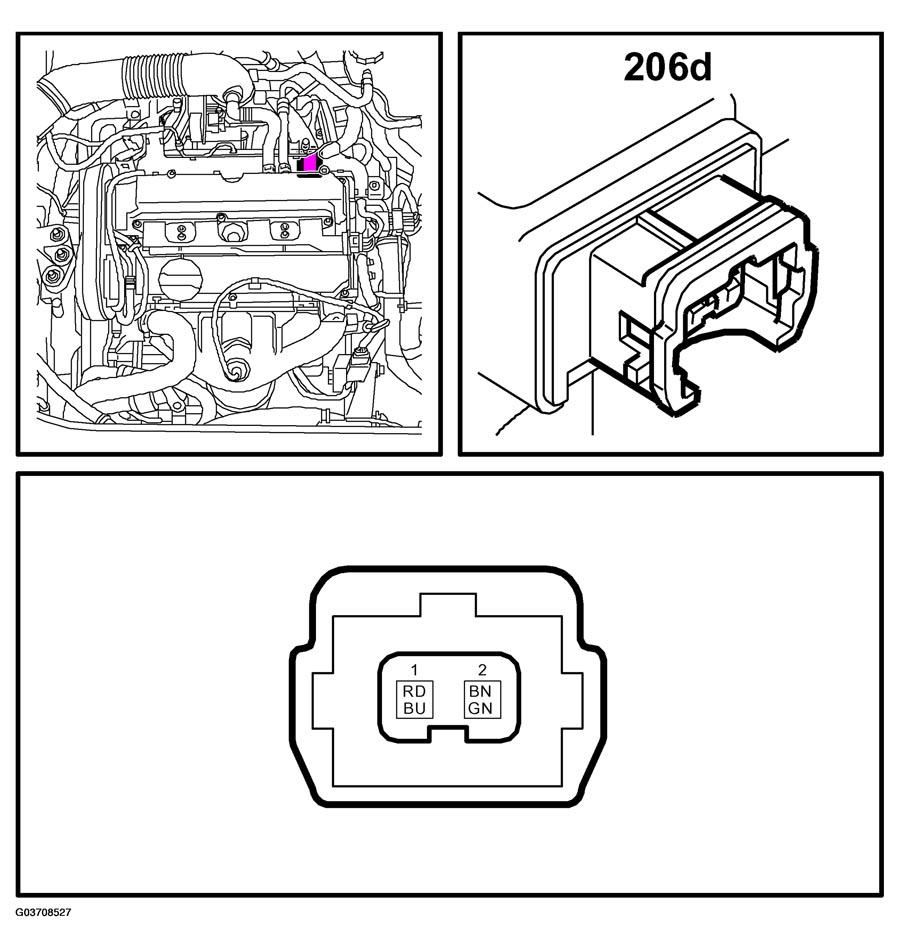

Fig 1: Identifying Injector Cyl 4 Connector Pinout (Simtec)
G03708527Courtesy of SAAB-SCANIA OF AMERICA, INC.
